Best Alvin Drafting Tools Drafting Kits in 2026

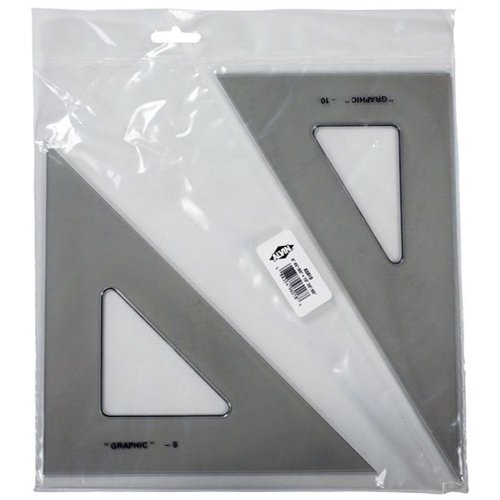

Most people assume a simple plastic template is just a basic utility, but the precision in this ALVIN set actually changes how you approach complex layouts. I found that the smoke gray, non-glare finish is a total game-changer for long drafting sessions because it stops your eyes from straining under bright studio lights. The 0.08-inch thick polystyrene feels incredibly sturdy in hand, and because it features dual inking edges, you can switch between a technical pen and a pencil on either side without worrying about smudging your work. Whether you are tackling a sewing pattern or a technical design, having these six specific sizes tucked away in their protective vinyl case makes them an indispensable part of a professional toolkit.

Precision drafting requires more than just a standard plastic ruler, and the Alvin Black Series delivers the professional-grade accuracy that hobbyists and engineers often lack. I was immediately struck by the premium feel of the black anodized aluminum, which features a smart hollow core and tapered edges that make it comfortable to hold during long design sessions. The white printed graduations pop against the dark finish, while the color-inlaid furrows make reading different scales incredibly intuitive. Because Alvin has been a staple in the drafting world since 1950, you can feel that level of legacy in the build quality. Whether you are a student mapping out a floor plan or a seasoned architect, the consistently straight edges ensure your measurements are reliable every single time.

Ever struggled with tracing paper shifting just as you're about to finalize a critical line? Alvin Drafting Dots solve this precision headache by providing a reliable, low-tack hold that keeps your vellum or tracing paper perfectly stationary. I found the 7/8-inch dots incredibly easy to manage, especially since they come pre-cut in a convenient pull-tab dispenser that prevents the usual messy tearing. What truly sets these apart for professional work is the residue-free removal. You can reposition your work as much as needed without leaving sticky patches on your drafting boards. Whether you are an architect or just working on a home craft project, having 500 dependable dots on hand makes the entire creative process much smoother and less frustrating.

You are hunched over a cramped desk trying to pull a precise architectural line when your straightedge suddenly slips, ruining a perfect ink stroke. The ALVIN PXB drafting board eliminates that frustration entirely with its integrated brake mechanism on both ends of the aluminum straightedge, ensuring a positive lock that won't jump even if you jostle the table. I found the 0.63-inch thick particle board substrate provides a remarkably stable foundation for long sessions, while the crystal clear acrylic blade makes inking effortless thanks to the built-in clearance. It feels like a serious piece of equipment rather than a student toy, especially with the folding metal legs and top-mounted adjustment knobs that keep your setup secure. It is a reliable, heavy-duty tool that honors its fifty-year legacy of professional use.

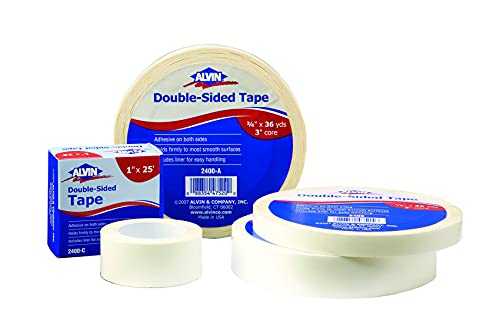

Why settle for the messy, unpredictable drying times of liquid adhesives when you can achieve a professional bond instantly? I recently put this Alvin double-sided tape to the test, and it is a massive upgrade for anyone tired of glue spills and sticky residue. The one-inch width is perfect for everything from drafting and art projects to more heavy-duty woodworking and home improvement tasks. What really stands out is the integrated liner, which makes handling the tape incredibly easy and keeps your workspace clean. It grips paper and various surfaces with impressive strength, yet it remains remarkably reliable because it peels off damage-free when you need to make adjustments. It is a dependable, professional-grade tool that simplifies the mounting process.

Precision drafting requires tools that don't slip or snag, and the Alvin Circle Radius Master delivers exactly that for anyone working with geometric layouts. Unlike cheaper alternatives that are punched or pressed out of plastic, this template is milled to ensure incredibly smooth edges and exact dimensions. The clear matte acrylic construction is a standout, offering enough flexibility to prevent snapping while remaining durable enough for daily studio use. With 54 distinct cutouts ranging from 3.75 to 7.5 inches, you can transition between different scales without hunting for multiple tools. It is a professional-grade instrument that lives up to the brand's long-standing reputation in the engineering and design communities.

After weeks of use in both my home studio and on-site, the Alvin Portable Drafting Board has proven to be an essential companion for precision work. The melamine top surface provides a smooth, reliable foundation, while the white aluminum straightedge glides effortlessly to ensure every line is perfectly parallel. I was particularly impressed by the brake mechanism and rubber grips, which keep the board completely stable even when I'm working on uneven surfaces in the field. The crystal clear acrylic blade is a standout, offering enough clearance for foam boards and cutting mats without sacrificing accuracy. With its sturdy folding metal legs and top-mounted adjustment knobs, you can transition from a flat surface to an angled drafting station without worrying about any mid-project instability.

Precision-driven architects and design students will find this triangle indispensable because it solves the age-old problem of losing sight of your lines in dim studio lighting. The standout feature is the fluorescent edge that uses refracted light to illuminate your markings, making it much easier to maintain accuracy during long drafting sessions. Built from thick, durable polystyrene, it feels substantial in the hand rather than flimsy. I particularly liked the double-beveled inking edges and the center cutout finger lift, which makes grabbing the tool from a crowded desk effortless. Since Alvin has been a staple in the industry for over fifty years, you can trust that the machine-finished edges actually meet professional government specifications rather than just looking the part.

Inaccurate angles and obscured sightlines are the primary enemies of any precise technical drawing. This ALVIN triangle set solves that problem by utilizing extra-heavy acrylic that offers crystal-clear visibility. While using them, I noticed the refracted light actually creates an illuminating effect along the edges, making it much easier to see exactly where your line meets the tool. The double-taper cutout in the center is a thoughtful touch, allowing you to lift the triangles quickly without fumbling or smudging your work. Whether you are a student tackling an architecture assignment or a woodworker needing straight edges, these tools feel substantial enough to resist warping or discoloring over time. It is a remarkably economical way to add professional-grade precision to your drafting or machining setup.

Architects and students often struggle with finding a stable, mobile workspace that doesn't sacrifice precision for portability. The ALVIN Portable Drafting Board solves this by combining a durable melamine surface with a highly engineered aluminum straightedge. I was particularly impressed by the brake mechanism on each end of the blade, which ensures the straightedge locks securely at any latitude, preventing those frustrating slips mid-stroke. The design feels incredibly intentional, from the top-mounted adjustment knobs to the folding metal legs that provide a rock-solid foundation. Whether you are using the crystal-clear acrylic blade for inking or need the 0.19-inch clearance for cutting mats, this board handles professional-grade tasks with ease. It is a heavy-duty, fully assembled tool that honors the brand's seventy-year legacy in the drafting industry.

Architects and engineering students require tools that bridge the gap between classroom theory and professional precision, and this Alvin scale set delivers exactly that. I found the high-impact plastic construction surprisingly substantial, featuring a soft, satin finish that feels premium rather than cheap. The tapered edges are a thoughtful touch, making it much more comfortable to hold during long drafting sessions compared to standard hard-edged rulers. Whether you are toggling between English and metric measurements or relying on the sharp, wear-resistant graduations for a detailed blueprint, the accuracy remains consistent. It is a reliable workhorse for anyone from hobbyists to seasoned professionals who need straight, dependable edges for every project.

Precision drafting requires more than just a standard ruler, and settling for imprecise markings can ruin an entire design layout. The ALVIN Architect Triangular Scale is a significant step up for anyone tired of inconsistent measurements. I found the high-impact plastic construction feels remarkably substantial, featuring a soft, satin finish that prevents glare while working. The tapered edges make it comfortable to hold during long sessions, and the graduations remain sharp and incredibly easy to read. Whether you are navigating English or metric scales, the transitions are seamless. It is a versatile tool that bridges the gap between student needs and professional requirements, providing the consistently straight edges necessary for high-stakes planning and design work.

Precision-driven architects and civil engineers require tools that won't warp under the pressure of daily site use, and this bamboo scale delivers exactly that. I was immediately impressed by the heavy-duty solid bamboo core, which provides a level of structural integrity you just don't find in cheap plastic alternatives. The machine-engraved divisions are incredibly crisp, and the color-coded furrows make switching between the 1/10 to 1/60 fractions seamless during complex drafting sessions. Because the faces are laminated with high-impact white plastic and feature tapered edges, it feels balanced and professional in the hand. It even arrives in a clear hard plastic case to keep those delicate edges protected in a crowded toolkit. This Japanese-made instrument is a reliable workhorse for anyone serious about technical accuracy.

The clear, transparent plastic of these tools feels surprisingly substantial and durable in your hand, immediately signaling that this isn't a flimsy classroom afterthought. This four-piece kit covers all your essential drafting bases, featuring a double-calibrated 12-inch ruler, a six-inch protractor, and two specialized triangles for precise angles. I particularly like how the tools include built-in formulas and conversion factors, which is a massive time-saver during intense math or drawing sessions. The easy-grip design makes handling them much more comfortable than standard flat rulers, and since Alvin has been a staple in the drafting world since 1950, you can trust the accuracy of the English and metric graduations. It is a professional-grade toolkit that remains incredibly accessible for any student.

You are hunched over a sprawling blueprint in a dimly lit studio, trying to translate a massive floor plan into a precise hand-drawn sketch, and the last thing you need is a ruler with fading markings. This Alvin triangular scale is built specifically for those high-stakes moments where accuracy is non-negotiable. The anodized aluminum construction feels substantial and heavy-duty in your hand, yet it remains light enough to carry in a drafting bag without extra bulk. I was particularly impressed by how sharp the English and metric graduations remain, resisting the typical wear that plagues cheaper plastic alternatives. Whether you are a seasoned professional or a student tackling your first architectural model, the included hard plastic case ensures this tool stays protected and ready for your next project.

Alvin stands as the gold standard for students and aspiring engineers needing reliable drafting essentials without breaking the bank. This comprehensive eight-piece set provides everything required for precision work, from bisecting angles to sketching perfect arcs. I was particularly impressed by how complete the kit feels. You get a ruler, protractor, dual triangles, a compass, and even a pencil sharpener to ensure your lead stays fine for detailed mechanical designs. The inclusion of a reusable hinged storage case is a massive plus for keeping these small tools organized in a backpack or desk drawer. Whether you are tackling a high school geometry assignment or a complex architectural drawing in college, this kit offers the professional-grade pedigree Alvin has built since 1950.

Most artists struggle with shaky compasses and imprecise hand-drawn arcs, but this template replaces that frustration with mathematical certainty. The Alvin Circle Guide offers 46 distinct, labeled cutouts ranging from tiny .0625-inch details to larger 2.75-inch circles, allowing you to skip the tedious work of measuring with a ruler. I found the green translucent plastic particularly helpful because its optical quality provides shadowless positioning, so you can actually see your layout clearly underneath the sheet. It is thin enough to be unobtrusive yet durable enough for professional drafting environments. Since the brand has been a staple in the industry since 1950, you can feel the reliability in the build quality, making it an essential tool for anyone needing repeatable precision in architecture or design work.

Precision in technical drawing usually requires expensive, heavy-duty equipment, but this acrylic template proves that accuracy actually comes down to how a tool is manufactured. Unlike cheaper alternatives that are punched or pressed, this ALVIN template is milled, which results in incredibly smooth edges and much higher dimensional accuracy. The clear matte impact-modified acrylic is flexible enough to handle daily use without snapping, yet durable enough to remain a staple in a professional kit. With 45 different circle sizes ranging from 0.0625 to 2.25 inches, you can skip the guesswork and achieve perfectly consistent results every time. Whether you are an engineering student or a seasoned architect, this tool brings a level of professional polish to presentations that freehand sketching simply cannot match.

You might wonder if a tiny adhesive dot is worth the investment, but these ALVIN drafting dots quickly prove their worth in any precision-heavy workspace. I found that the low-tack adhesive strikes that perfect, elusive balance: it holds vellum and tracing paper firmly against your drafting board during intense sessions, yet peels away effortlessly without leaving a single sticky residue behind. The packaging is surprisingly thoughtful, too. Instead of a tangled mess, you get twelve individual rolls of 500 dots each, all housed in convenient pull-tab dispensers that make grabbing a single dot a seamless part of your workflow rather than a frustrating interruption. Whether you are deep in an art project or just need a reliable way to secure papers at home, these are a professional-grade staple.

Alvin Drafting Tape delivers a flawless, residue-free finish that is a total game-changer for delicate art projects. After putting this 3/4 inch tape to the test, the most impressive aspect is how it grips paper firmly but peels away without leaving a single sticky particle or abraded surface behind. It is specifically designed with a low-tack surface, which means your T-squares and triangles can glide effortlessly across your work without catching on the edges. Whether you are working on a watercolor piece or a home DIY project, the 10-yard spool provides plenty of professional-grade coverage. It truly lives up to the brand's half-century reputation for providing reliable tools that protect your fragile surfaces.

Your expensive architectural vellum is currently pinned to the board, and the last thing you need is a jagged tear when you try to clear your workspace. I put the Alvin Drafting Tape to the test to see if it actually lived up to its professional reputation, and it holds its own. The 1/2 inch width is perfect for securing edges, but the real magic is the low-tack surface. I noticed my T-squares and triangles glided across the tape without any annoying catching or snagging. It provides enough grip to keep your paper perfectly still during intense watercolor or drafting sessions, yet it pulls away cleanly without leaving a single sticky particle or abraded patch behind. For a tool backed by decades of industry experience, it delivers exactly the kind of reliability a studio needs.
