Best Staedtler Drafting Tools Drafting Kits in 2026

Evaluate the Core Instrument Composition

A drafting kit is only as valuable as the precision of its primary instruments. When browsing Staedtler kits, the first thing to examine is the quality of the compasses and dividers. High-end kits will feature compasses with fine-adjustment screws, allowing you to make microscopic shifts in radius that standard consumer compasses simply cannot achieve. Look for kits that include both a compass for drawing circles and a divider for transferring measurements. Additionally, pay close attention to the lead grade included in the mechanical pencils or lead holders. A professional kit should ideally provide a range of hardness—such as HB for general work, 2H for light construction lines, and 4H for extremely fine, precise details.

Assess the Scale and Ruler Versatility

In technical drafting, a standard ruler is often insufficient. You need to look for kits that include scale rulers, which allow you to translate real-world dimensions onto a small sheet of paper accurately. Check if the kit provides metric or imperial scales, or a combination of both, depending on your region and field of study. The quality of the material matters here as well. Look for edges that are perfectly straight and resistant to chipping. A ruler with a clear, high-contrast scale is essential for preventing eye strain during long drafting sessions. If you are working on architectural layouts, ensure the kit includes enough graduated tools to handle various scales of magnification.

Consider the Ergonomics and Portability

Drafting is a tactile, time-intensive activity. A kit that contains high-quality tools but lacks ergonomic design will lead to hand fatigue. Examine the grips on the mechanical pencils and the weight distribution of the compasses. A tool that is too light may feel flimsy and lack the stability needed for steady lines, while a tool that is too heavy can cause cramping. Furthermore, consider how the kit is housed. A dedicated hard case is superior to a soft pouch because it protects the delicate points of the compasses and the precision edges of the rulers from being bent or damaged during transport. For students moving between studios, a compact, organized case that keeps every component in a fixed position is vital.

Match the Kit to Your Technical Discipline

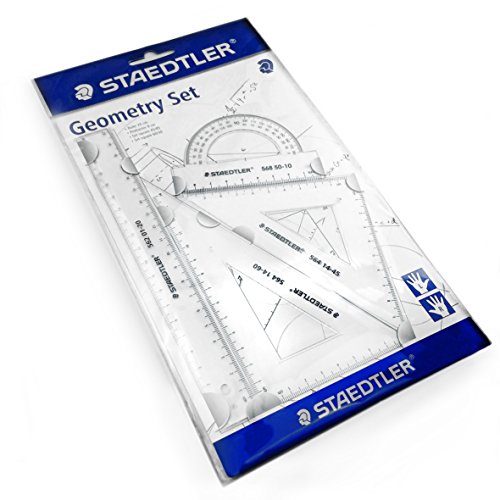

Not all drafting kits are created equal, and your choice should be dictated by your specific workflow. If your focus is on geometric construction and mathematical proofs, prioritize kits with a heavy emphasis on compasses, protractors, and set squares. If you are more focused on architectural rendering and shading, look for kits that include a wider variety of graphite grades and perhaps specialized erasers, such as kneaded erasers, which allow for subtle corrections without damaging the paper surface. For engineering students, a kit that emphasizes mechanical pencils with consistent lead delivery and high-precision scales will be the most beneficial for long-term success.
