Best Backlight Insulation Resistance Meters in 2026

Can a budget-friendly tool actually deliver the precision required for professional automotive and household troubleshooting? The AstroAI Digital Multimeter proves that you don't need to spend a fortune to access essential features like True RMS for accurate AC/DC measurements. During testing, the auto-ranging capability and large backlit LCD made reading complex data like capacitance, frequency, and temperature incredibly seamless. I particularly appreciated the thoughtful physical design. The built-in kickstand and hanging magnet allow for hands-free operation in tight engine bays or electrical panels. Safety isn't an afterthought here either, as the dual ceramic explosion-proof fuses provide much-needed protection against overloads. It is a versatile, reliable companion for anyone needing to jump between testing diodes, continuity, and duty cycles without switching gear.

Most people assume thermal insulation is just about thickness, but the real magic happens through reflection rather than just mass. The SmartSHIELD roll operates on this principle, utilizing a pure aluminum sandwich around a 5mm closed-cell polyethylene foam core to reflect a staggering 97% of radiant energy. I was particularly impressed by the build quality. Unlike those flimsy bubble-wrap alternatives, this feels substantial and acts as a legitimate vapor and sound barrier simultaneously. It is surprisingly easy to cut and install, making it a versatile tool for managing both heat and cold. Because it carries a Class 1 fire rating and is non-toxic, you can work with it without worrying about skin irritation or nasty fumes, which is a massive relief during long DIY projects.

Why waste hours tracing a single dead line through a cluttered server room when a single tool can pinpoint the exact location? The NOYAFA NF-8209S is a serious upgrade for any network technician, moving far beyond basic continuity checks. I was particularly impressed by the port flashing feature, which makes identifying specific connections on a 1000M switch incredibly fast. It handles complex tasks like measuring cable length up to 500 meters without needing calibration, and the PoE testing is robust enough to identify specific power pins and PSE standards. Whether you are dealing with interference in a noisy environment or checking if a crystal head was pressed correctly with the cable pressing test, this device provides the granular data needed to troubleshoot modern STP and UTP infrastructure efficiently.

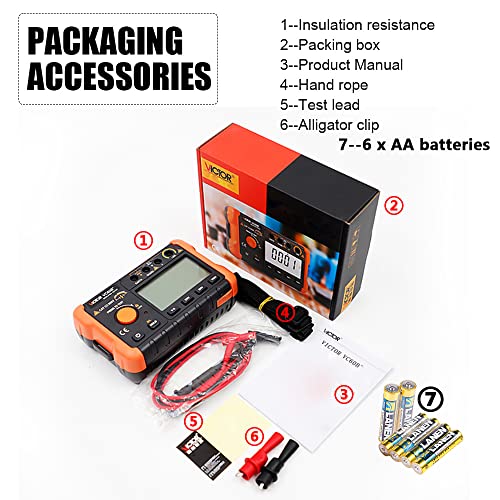

Can you really afford to overlook a hidden insulation failure in your electrical system? The LEAGY Victor VC60B+ makes identifying these critical faults much simpler by offering a robust range of testing capabilities, from 250V to 1000V. I found the high-definition backlit LCD incredibly helpful when working in dim electrical cabinets, and the ability to switch between battery power and a DC12V external adapter is a lifesaver during long maintenance sessions. It handles everything from motor and transformer testing to cable validation with impressive precision. Safety is clearly a priority here, too, thanks to the audible high-voltage alarm and the quick one-second automatic discharge feature. Whether you are a professional electrician or tackling household maintenance, this tool feels reliable and well-thought-out.

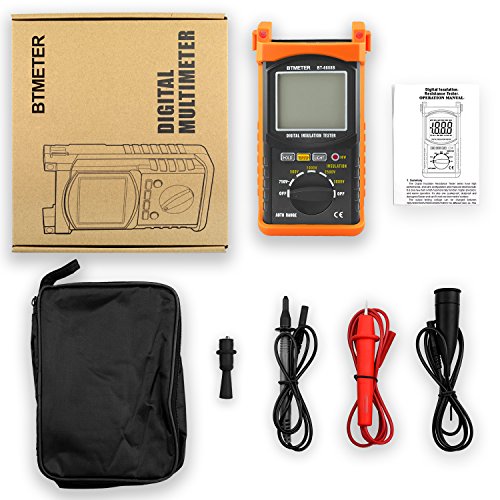

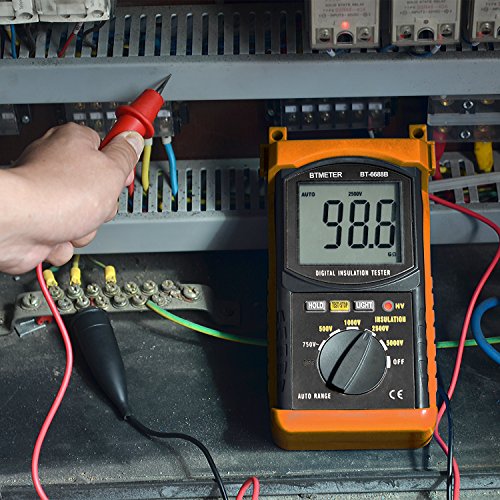

The BTMETER BT-6688B stands as a powerhouse for electrical technicians needing precision in high-voltage environments. I found the versatility of the testing voltage selection—ranging from 100V all the way up to 5000V—to be a massive advantage when jumping between testing small switches and massive industrial transformers. The auto-ranging capability makes the 200 Gig Ohm measurement process seamless, while the backlit display ensures you aren't squinting in dark electrical cabinets. It also doubles as an AC high voltage checker, which is a handy bonus for cable inspections. Safety is clearly a priority here, evidenced by the IEC-1010 double insulation and the rugged, non-slip protective case that keeps the unit secure during field use. It is a reliable, heavy-duty tool for anyone serious about insulation integrity.

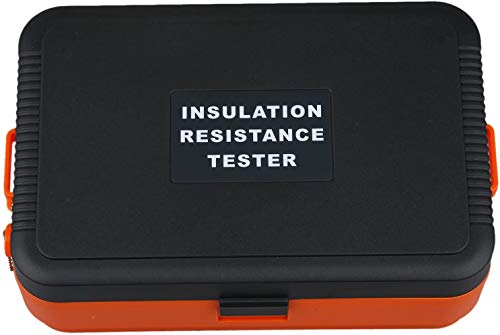

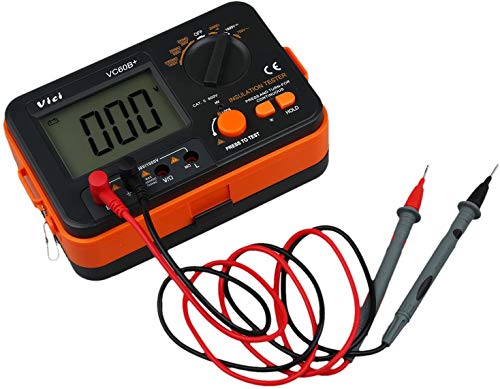

Electrical insulation failure can be a silent, dangerous killer in any wiring system, which is exactly why the VICI VC60B+ is such a vital addition to a technician's toolkit. I found this tester to be remarkably straightforward to operate, even when working in electrically noisy environments thanks to its robust anti-magnetic and anti-jamming capabilities. The large LCD display makes reading megohm values effortless, and the unit symbol display ensures you aren't guessing your measurements. Safety is clearly a priority here, as the anti-high voltage circuit design and built-in alarms for high voltage or short circuit inputs provide much-needed peace of mind during testing. It strikes a professional balance between accuracy and rugged protection for a very reasonable price.

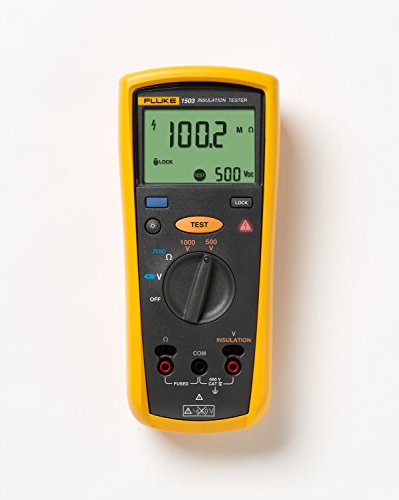

You are standing in a dimly lit industrial plant, staring at a complex motor assembly and needing to know exactly why the insulation is failing before a catastrophic short occurs. The Fluke 1503 is built for these high-stakes moments, acting as a precision megohmmeter that handles both preset and adjustable test voltages with ease. I found the ability to measure leakage current up to 2mA and capacitance to 20 microfarads incredibly useful for getting a full picture of system health. It takes the guesswork out of diagnostics by automatically calculating PI and DAR values, giving you a clear indication of insulation condition. Since it can store up to 99 results for PC uploading and handles timed tests up to 99 minutes, it is a reliable partner for long-term maintenance workflows.

Tracing a phantom ground fault in a dim transformer room becomes significantly less frustrating when you aren't squinting at a tiny, unlit screen. The UNI-T insulation resistance tester solves this immediately with a high-definition LED display that features an automatic backlight, kicking in the moment you start a measurement. Whether you are testing motor windings or checking cable integrity, the ability to toggle between 100V and 1000V outputs provides the versatility needed for professional electrical maintenance. I found the 5GΩ maximum range and the integrated AC voltage measurement to be incredibly practical for real-world troubleshooting. Safety is clearly a priority here too, as the unit provides a distinct red warning light during high-voltage output, ensuring you stay aware of the live testing environment.

You are standing in a dimly lit utility room, staring at a transformer that just tripped a breaker, and you need to know immediately if the insulation has failed. The UNI-T insulation resistance tester becomes your most reliable partner in these high-stakes moments, providing the precision needed to test cables, switches, and electric machines with confidence. I found the automatic measurement and auto-discharge features particularly helpful for streamlining workflow without sacrificing safety. It handles everything from AC voltage measurement to complex PI and DAR calculations, making it a versatile powerhouse for maintenance professionals. The backlit LCD ensures you aren't squinting in dark electrical cabinets, while the built-in alarm buzzer gives you that critical audible feedback during testing. It is a robust, economical solution for anyone serious about electrical equipment inspection.

Electricians working on high-voltage industrial systems demand a tool that balances precision with serious safety protections, and the HOLDPEAK HP-6688B delivers exactly that. Testing insulation resistance across a massive 1MΩ to 200GΩ range makes this a versatile powerhouse for everything from standard wiring to heavy-duty equipment. I was particularly impressed by the clever battery setup. It includes six AA batteries but features a rechargeable function that saves you from constant replacements. The device feels incredibly robust thanks to its anti-magnetic and anti-jamming design, and the high-voltage red indicator lamp provides essential visual cues when you're in the field. With auto-ranging and a bright backlight, you aren't left guessing in dark or complex electrical environments.

After weeks of use in various industrial environments, the AIOMEST megohm meter has proven itself to be a rugged essential for any electrical maintenance kit. The standout feature is the massive 2.75-inch backlit LCD, which makes reading high-resistance values incredibly easy even when you are working in dark, cramped electrical cabinets. It handles a serious range, spanning from 1MΩ up to a massive 200GΩ, and the ability to toggle between test voltages of 500V up to 5000V makes it versatile for everything from small motors to large transformers. Safety is clearly a priority here, as the solid insulating case and IEC-1010 double insulation provide much-needed peace of mind when testing high-voltage systems. It feels like a professional-grade tool that actually lives up to its heavy-duty reputation.

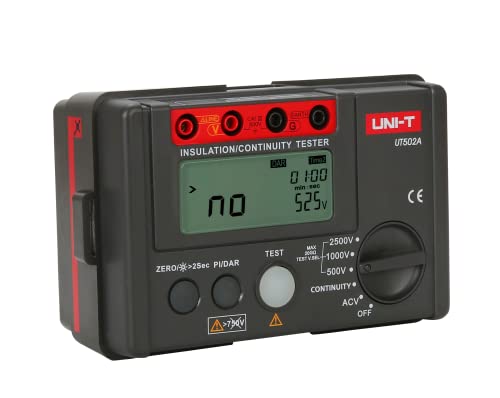

The UNI-T UT502A stands out as a precision powerhouse thanks to its sophisticated auto-resistivity calculation capabilities. Testing insulation isn't just about a single reading. It's about understanding the health of a system, and this meter delivers that depth through PI and DAR measurements. During my time with it, the 2000-count backlit LCD made reading values in dark electrical cabinets effortless, while the red warning light and buzzer provided much-needed tactile feedback during continuous measurements. I particularly appreciated the low resistance returning to zero function, which strips away the guesswork to ensure much higher accuracy. It feels robust in the hand, weighing in at a solid 500g, and comes packed with everything from alligator clips to a dedicated carrying bag for field use.

Testing the winding insulation on an aging industrial motor requires a tool that doesn't flinch when you dial up the voltage. The WapoRich RQ-6688F handles these high-stakes checks with ease, offering selectable test voltages of 250V, 500V, 1000V, and even 2500V. I found the auto-ranging capability incredibly helpful for jumping between resistance levels, which can span a massive range from 1MΩ all the way up to 20GΩ. The build feels rugged enough for a messy job site thanks to the dust-proof and shock-proof rubber sheath, and the integrated metal bracket is a lifesaver when you need to keep your hands free for probing cables or transformers. It is a practical, high-precision instrument for anyone serious about electrical maintenance.

Electrical inspectors and repair technicians require precision that doesn't fail them in the field, and the Wal front PM2302 delivers exactly that level of reliability. Testing ground resistance up to 4K ohms becomes seamless thanks to the large, backlit LCD that combines digital readouts with analog bars for quick visual confirmation. I particularly like the versatility of the 2-pole and 3-pole modes, which make it a true multi-functional tool for complex electrical environments. It even handles the data management side of the job well by storing up to 100 test results, ensuring your hard work isn't lost if the power cuts out. With an auto power-off feature to save battery life, this meter is built for the long haul in professional settings.

Electrical insulation breakdown can lead to catastrophic equipment failure, which is exactly why having a reliable megohmmeter like the INFURIDER YF-6688B is essential for any maintenance professional. During testing, I found the wide measurement range—stretching from 1M to 200G ohms—to be incredibly versatile for everything from checking motor windings to inspecting heavy-duty cables. The device handles high-voltage testing up to 5000V with a reassuring level of safety, thanks to its CATIV 600V and CATIII 1000V overload protection. I particularly liked the rugged blue protective sleeve that makes it easy to grip, even if you drop it. The large backlit LCD and the high-visibility red LED indicator for high voltage ensure you can read your data clearly in dark electrical cabinets without squinting.

Electrical technicians working in dimly lit industrial environments need the Acogedor Earth Ground Resistance Tester to ensure safety and precision without squinting at their equipment. I found the large LCD screen particularly impressive because the bright green backlight makes readings crystal clear even in dark corners. The device is surprisingly versatile. You can use the parallel electrodes on the back to quickly identify if a surface is a conductor, insulator, or static material. It feels great in the hand thanks to the ergonomic body and soft-touch buttons that don't feel cheap during long testing sessions. With handy extras like data hold, temperature unit conversion, and an auto power-off feature, it handles the technical heavy lifting so you can focus on the job at hand.

After weeks of use in demanding field environments, the allsun EM480D has proven itself to be a rugged staple for any electrical professional. This tester does much more than just check grounding resistance. It handles AC voltage up to 200V, making it a versatile tool for lightning protection and power system maintenance. I was particularly impressed by the build quality, as the dust and moisture-proof structure feels purpose-built for outdoor operations. The 3.5-inch LCD is bright and easy to read even in tricky lighting thanks to the backlight, and the layout of the function keys is intuitive enough that you aren't fumbling during a measurement. Plus, knowing the terminals can withstand AC 380V for a minute provides a much-needed layer of safety and overload protection.

Why risk dangerous downtime or manual electrode setups when you can verify grounding safety in seconds? The ATO Clamp-on Earth Ground Resistance Tester changes the game for field technicians by allowing for rapid resistance measurements from 0.01Ω to 1000Ω without ever disconnecting your circuit ground lines. I found the ability to skip the hassle of auxiliary electrodes particularly impressive, making it a massive time-saver for outdoor work in telecommunications or power systems. It is a rugged, highly functional tool that packs essential features like auto-ranging, data storage, and an LCD backlight into a professional package. Whether you are working in an oil field or a construction site, having this level of precision and the convenience of a clamp-on design makes maintaining complex grounding systems significantly more efficient and much safer.

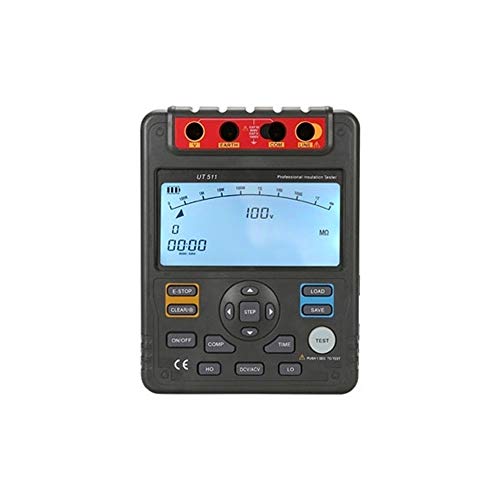

The ATO Insulation Tester delivers massive versatility by offering four distinct test voltages ranging from 100V up to 1000V. I found the measurement ranges incredibly expansive, spanning from 0.1MΩ all the way up to a staggering 10GΩ, which makes it a heavy hitter for industrial environments. Whether you are inspecting large transformers, high-voltage motors, or massive generators, this device handles the heavy lifting with ease. The 9999 counts display is crisp, and the integrated LCD backlight is a lifesaver when you are working in cramped, dark electrical cabinets. Beyond standard resistance, it also tracks PI, DAR, and low resistance, providing a comprehensive diagnostic toolkit for any professional technician needing stable, reliable performance on the job.

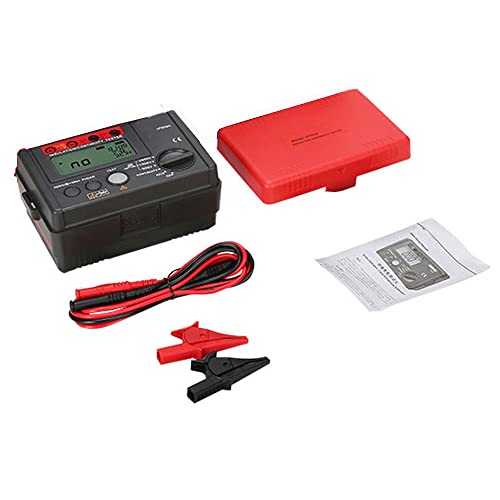

Most technicians settle for basic continuity testers that fail to catch the subtle insulation breakdowns that lead to catastrophic equipment failure. The ATO Digital Insulation Resistance Tester changes that by providing a massive measurement range from 0.00 MΩ up to 5.0 GΩ. I found the four selectable test voltages—100V, 250V, 500V, and 1000V—to be incredibly versatile for everything from small electrical appliances to heavy-duty transformers and motors. The LCD display is bright enough to remain legible in pitch-black electrical cabinets, which is a lifesaver during late-night troubleshooting. It arrives ready to work with included test leads and alligator clips, making it a reliable tool for testing cables, switches, and various electrical components with high precision and stability.

Most DIYers settle for basic testers that struggle with electrical noise, but the KAIWEETS HT206A utilizes True-RMS technology to ensure your readings remain accurate even when dealing with distorted waveforms from non-linear loads. I found the dual-purpose backlight particularly clever. The screen actually shifts to an orange warning color if you hit high voltage or current thresholds, which is a massive safety plus. It handles AC current up to 600 amps and covers essential bases like capacitance, resistance, and continuity. Whether you are troubleshooting a circuit in a dim basement or checking diode functionality, the built-in work light and loud continuity buzzer make the job much less frustrating. It is a rugged, auto-ranging tool that brings professional-grade sensing to a very accessible price point.

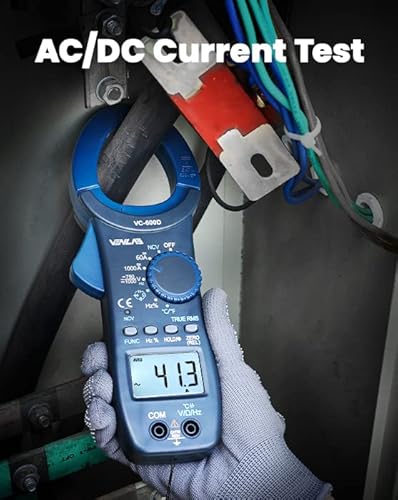

Most DIYers settle for basic voltage testers that fail the moment they encounter complex AC/DC current fluctuations, but the VENLAB Digital Clamp Meter steps up with true T-RMS accuracy. During testing, the large 2.6-inch jaw made it incredibly easy to clamp around thicker wires without the usual struggle. It handles everything from temperature and capacitance to frequency, making it a legitimate Swiss Army knife for both factory floors and home workshops. The auto-ranging feature is a lifesaver when you don't want to manually hunt for the right scale, and the NCV detection provides a vital layer of safety by alerting you to live voltage before you even make contact. It is a robust, highly capable tool that feels much more expensive than its price point.

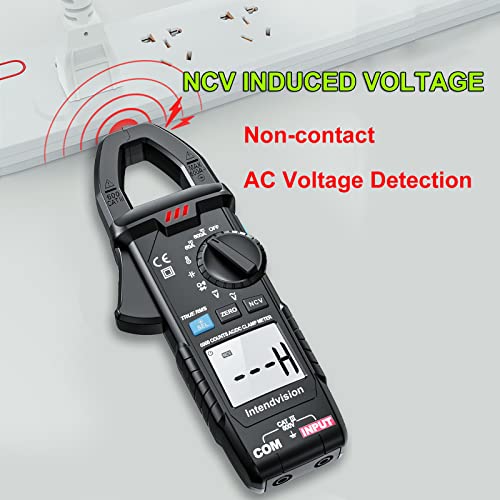

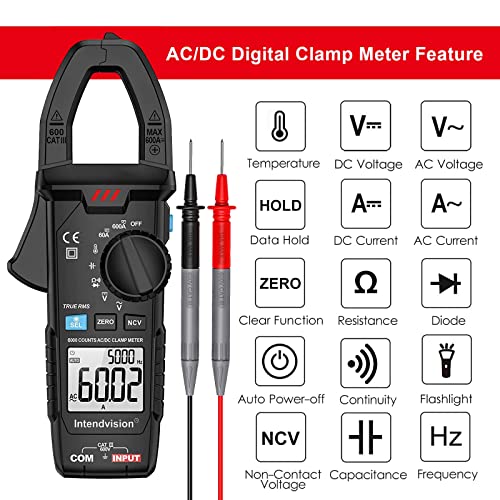

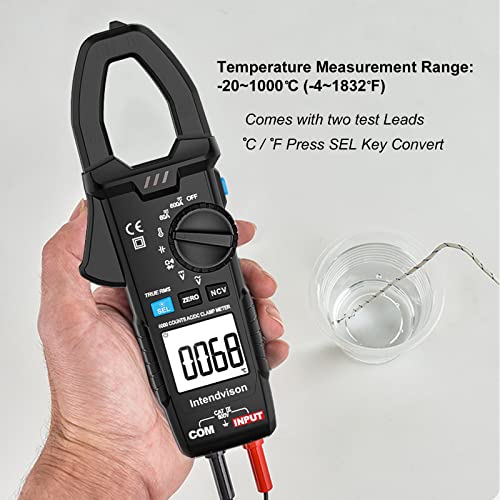

The Intendvision AC/DC Digital Clamp Meter is a versatile powerhouse for electrical troubleshooting that balances high-accuracy True-RMS readings with an incredibly accessible price point. I found that being able to switch seamlessly between measuring 600A current and testing temperature for air conditioning ports makes this a standout multi-tool for both automotive and industrial work. The backlit LCD and integrated LED flashlight are absolute lifesavers when you are digging around in dark electrical closets or cramped spaces behind appliances. Safety doesn't feel like an afterthought here either, thanks to the IEC Rated CAT.III 600V certification and robust overload protection. Whether you are checking continuity or using the NCV function to detect voltage without contact, this meter feels like a dependable companion for any toolkit.

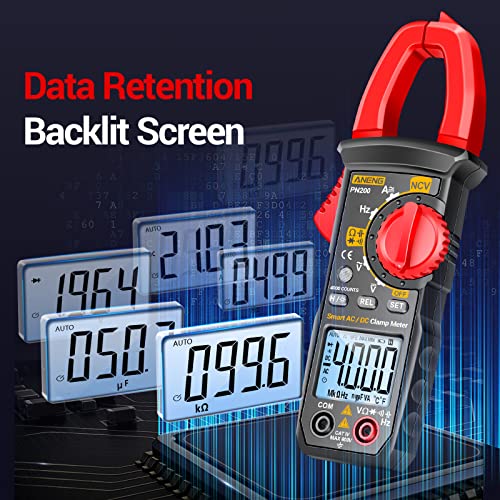

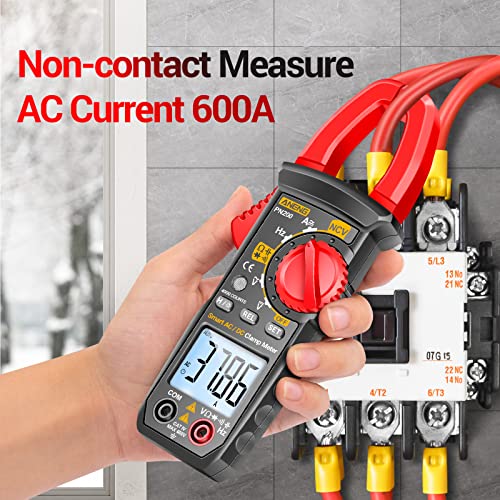

Every DIY enthusiast or automotive mechanic needs the ANENG Digital Clamp Meter in their toolkit to stop guessing and start troubleshooting with precision. This versatile device handles much more than just standard AC current. It tackles DC current, voltage, capacitance, and frequency with ease. I found the double open jaws particularly helpful for wrapping around thicker wires up to 1.33 inches without needing to break the circuit. The integrated NCV function is a lifesaver for quickly scanning for live wires before you even touch a component. While you must remember to hit the REL button to zero out the meter before clamping, the sheer variety of included leads and the durable, scratch-resistant exterior make this an incredibly efficient tool for long workdays in the field.

The backlit dual display on the REED Instruments R5600 catches your eye immediately, cutting through the dim lighting of an electrical panel or a cramped utility closet. This isn't just a standard multimeter. It’s a heavy-duty tool designed for serious insulation testing. You can toggle between 250V, 500V, and 1000V test voltage combinations to suit your specific diagnostic needs, whether you are running a 1mA test for megaohm ranges or a 200mA continuity check. It arrives ready to work right out of the box with a hard carrying case, test leads, an alligator clip, and even a hanging strap for hands-free operation. Having this level of versatility in a single handheld unit makes troubleshooting complex electrical resistance issues much more efficient.
