Best Mechanical Miter Gears in 2026

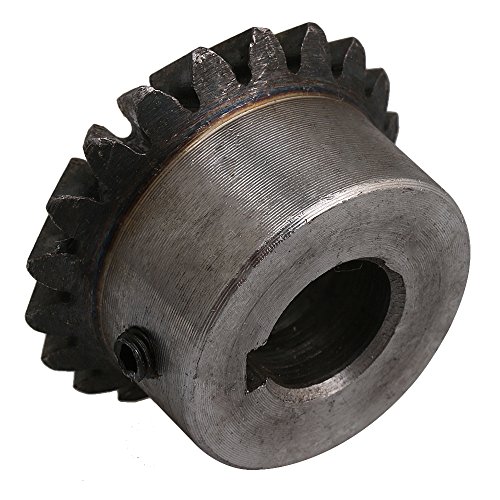

These Yibuy 90-degree tapered bevel gears offer a robust solution for mechanical transmission tasks where precision and durability are non-negotiable. Constructed from heavy-duty 45# steel, this two-piece set provides the firmness required to maintain steady contact during operation, which is vital for preventing slippage in high-load environments. I found the build quality particularly impressive for its intended use in agricultural equipment, automotive applications, and printing machinery. Because these are 1 to 1 ratio gears, they are specifically designed to pair with matching modulus components to ensure smooth power transfer. With a 14mm hole diameter and a 42mm maximum outer diameter, they fit standard shafts perfectly, making them a reliable replacement part for anyone maintaining complex mechanical hardware.

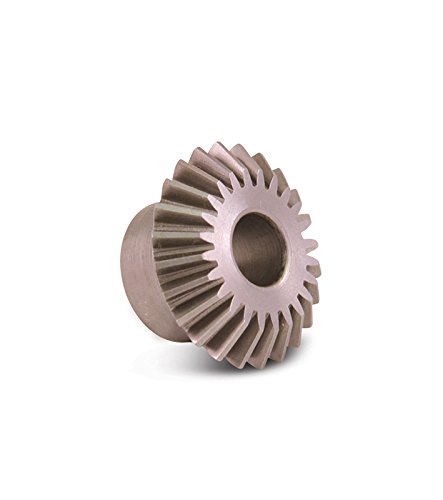

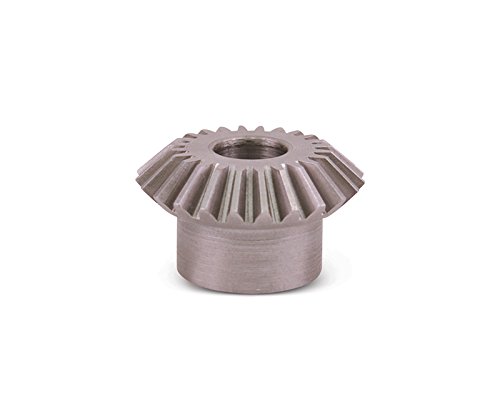

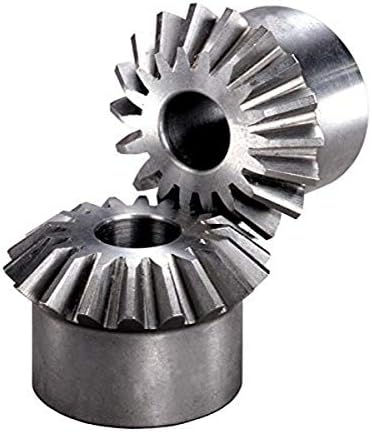

You are standing over a workbench trying to redirect mechanical power between two perpendicular shafts in a custom machinery build, and you need a component that won't buckle under standard torque. This Boston Gear miter gear is designed specifically for those precise 90-degree mesh applications. Because it utilizes a 20-degree pressure angle, it offers a higher load capacity than gears with smaller angles, making it a reliable choice for steady motion transmission. Since it is constructed from low carbon steel with unhardened teeth, it is perfectly suited for setups where extreme hardness isn't the priority, but consistent 1:1 ratio performance is essential. It is a straightforward, specialized solution for engineers and hobbyists working on mechanical assemblies that require dependable, perpendicular power transfer.

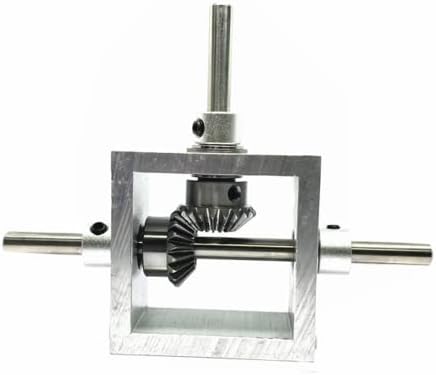

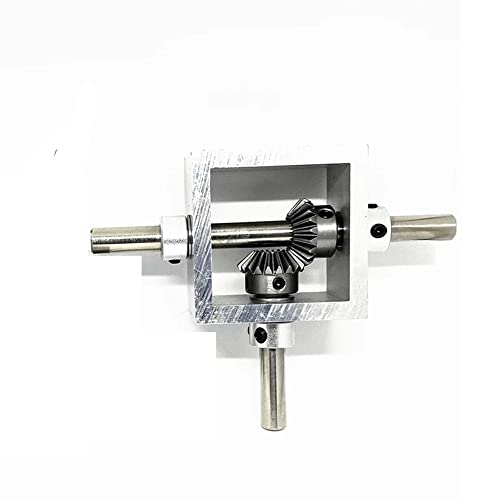

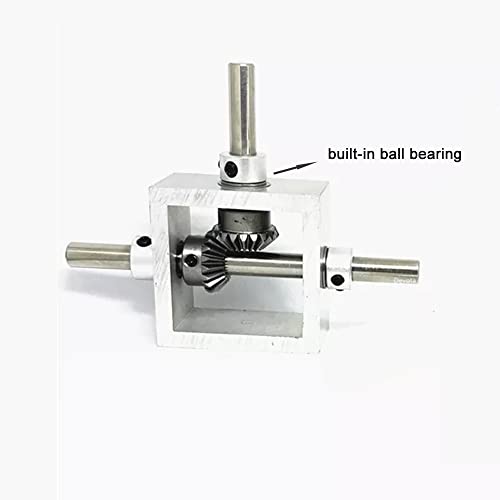

The PGFUN 1:1 Right Angle Bevel Gearbox serves as a specialized mechanical component for hobbyists looking to redirect motion with precision. This module utilizes a 20-tooth bevel gear setup with a 1 module specification, making it an ideal building block for lightweight DIY steering or directional changes. Built from a sturdy combination of aluminum alloy and #45 steel, it feels much more substantial than plastic alternatives. While the 8mm shaft and M4 screw holes make integration via coupling or belt pulleys straightforward, it is important to manage expectations regarding power. This is a dedicated steering device meant for simple mechanical projects rather than heavy-duty CNC applications requiring extreme torque or high-speed rotation. For small-scale robotics or custom mechanical builds, it offers a reliable, compact solution.

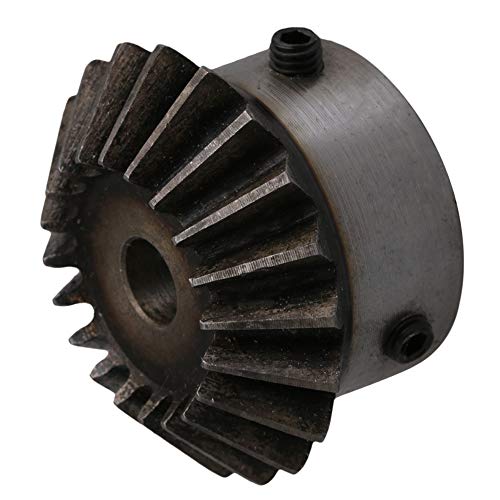

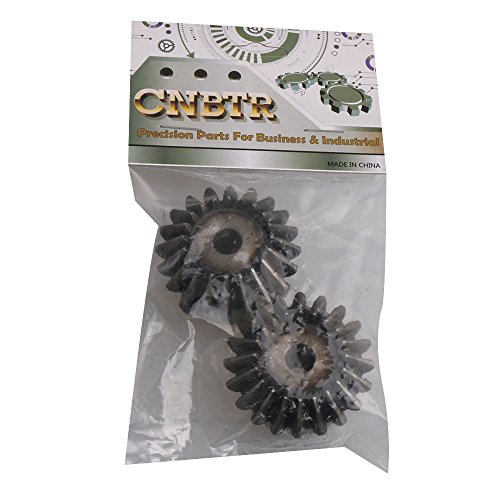

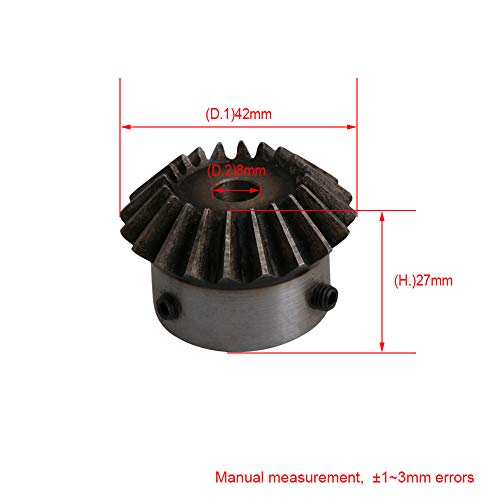

A worn-out transmission in a piece of agricultural equipment can bring an entire operation to a grinding halt. Swapping in these CNBTR tapered bevel gears provides a reliable fix for mechanical systems requiring a 90-degree direction change. Since they are forged from 45# steel, they handle the friction of constant contact much better than softer alternatives, making them a solid choice for industrial replacements. The 20T tooth count and 2 module specification ensure a firm contact point, which is vital for maintaining steady bearing capacity during heavy-duty conveying or printing tasks. Just remember that these are strictly 1:1 bevel gears, so you must match them with the exact same module and tooth count to avoid stripping the teeth during operation.

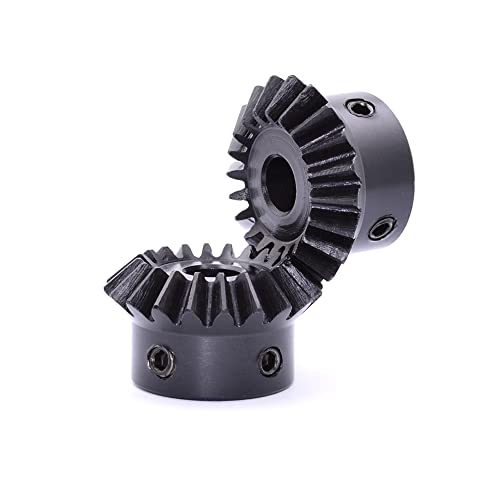

PGFUN delivers a heavy-duty mechanical solution for engineers and technicians requiring precise 90-degree steering drives. These 1.5 module gears are forged from 45# steel and undergo a specialized quenching and blackening process, which significantly boosts their wear resistance and overall lifespan. With a 1:1 ratio and 20 teeth, they provide a reliable transmission for demanding applications in textile, agricultural, or automotive machinery. The 12mm shaft hole and integrated M5 fixing holes make installation straightforward, though you must remember to replace them as a matched set to ensure smooth, synchronized operation. At roughly 31mm in diameter, they offer a compact yet rugged profile for tight mechanical assemblies.

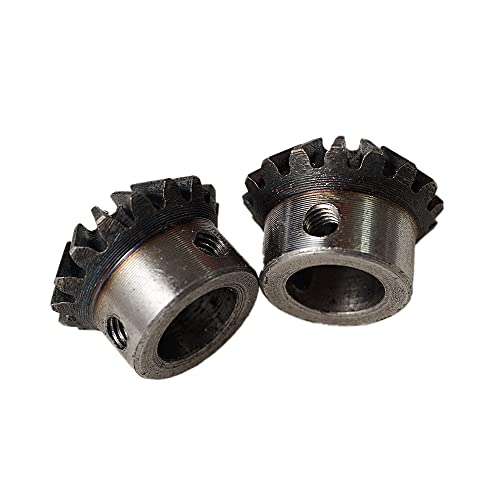

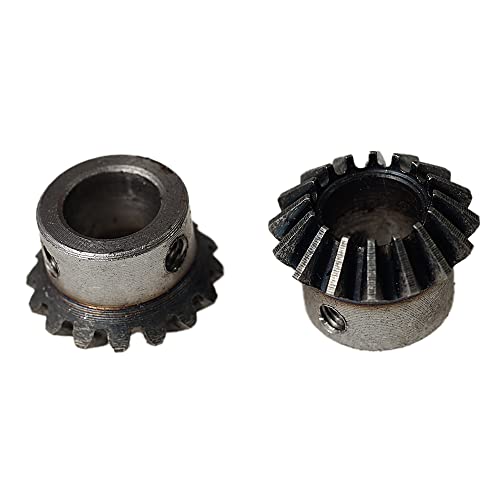

Mechanical engineers and DIY hobbyists working on precision transmission systems need this specific gear set to ensure reliable 90-degree power transfers. These NAKUPENDA bevel gears are forged from 45# steel, providing the high wear-resistance required for demanding environments like textile machinery or automotive applications. Because they feature a 1.5 module and a 12mm hole diameter, they offer a very specific fit that eliminates guesswork for those already running matching hardware. I particularly like that the package includes two M5 screws, which streamlines the installation process significantly. While the lower contact ratio is designed to maximize load capacity, just remember that these are 1:1 ratio gears that must match your existing modulus to function correctly.

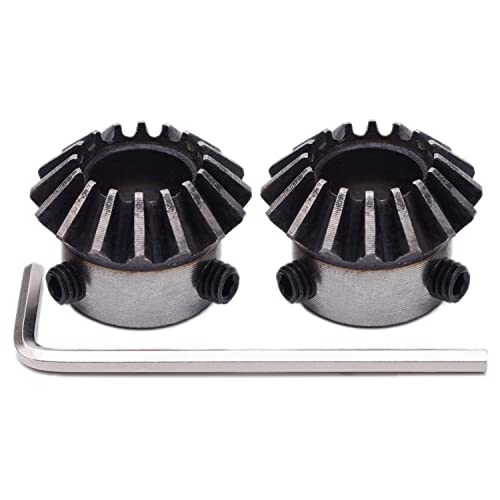

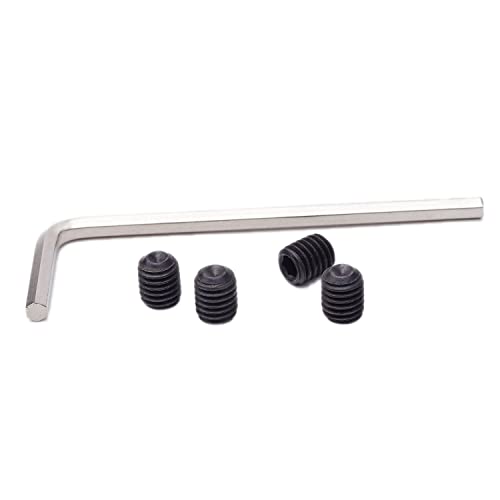

The NAKUPENDA Bevel Gear set delivers impressive mechanical reliability through its rugged 45# steel construction. I found that these 20-tooth gears are built specifically for high-load scenarios where durability is non-negotiable, making them a solid choice for everything from agricultural equipment to automotive applications. Because they utilize a lower contact ratio, they can handle significant weight without sacrificing smooth rotation. Installation is surprisingly straightforward since the kit includes both M5 screws and a spanner to get you moving quickly. Just keep in mind that these are strictly 1:1 ratio gears designed for a 2 module system. They won't play nice with different moduli. If you need a dependable replacement for textile or printing machinery, this hardened steel pair offers the wear resistance required for long-term mechanical transmission.

The HARFINGTON 1.0 Modulus Tapered Bevel Gear is a precision-engineered component built specifically for seamless mechanical transmission. What really stands out is how the firm contact between the teeth ensures stable machine operation even under consistent bearing loads. It is constructed from a durable, wear-resistant plastic that makes it a reliable industrial replacement for various hardware or agricultural applications. With a 5mm inner hole and included M5 set screws, installation is straightforward for anyone working on conveying or printing machinery. Just keep in mind that this is a 1:1 ratio gear, meaning you must match it with an identical module and tooth count to avoid damaging your equipment. It is a specialized part that delivers exactly what it promises for mechanical maintenance.

Mechanical builds often fail when gear meshing is sloppy or imprecise, which is exactly what this LWOMAN spur gear aims to prevent. I found that the 0.5 modulus design and the 80-tooth count provide a remarkably stable power transmission ratio, essential for high-precision projects. Since it is cast from 45# steel, the teeth feel incredibly robust and tight during operation. Whether you are fine-tuning a 3D printer or building a custom robot, the precision of the 41x10x4mm dimensions ensures a professional fit. It is a heavy-duty component at 42g that handles the rigors of CNC or textile machinery applications without the typical play found in cheaper alternatives. This is a reliable core component for anyone serious about mechanical DIY.

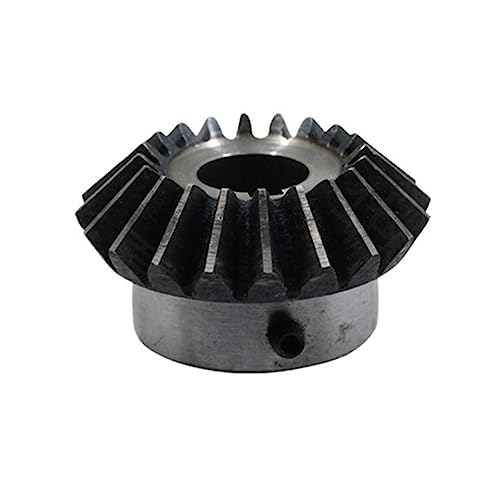

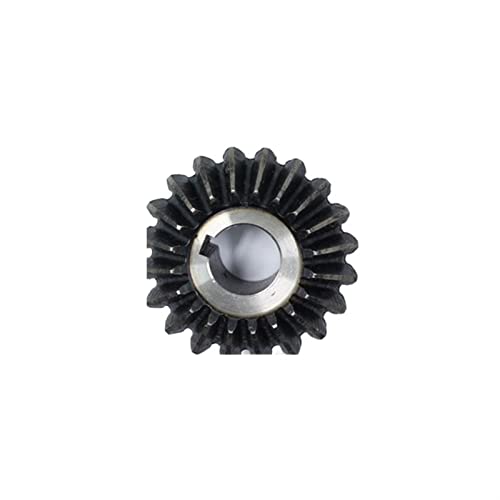

The LWOMAN Spiral Bevel Gear delivers remarkably precise meshing for anyone deep into model car modification or DIY robotics. After testing the fit, the most impressive aspect is the exquisite casting technology that ensures the gear teeth engage with a tight, seamless connection. This isn't just a rough component. The stable power transmission ratio makes it reliable for sensitive applications like 3D printers or CNC machinery. Whether you are fine-tuning a custom robot or upgrading automotive models, the 1.5 module design provides the mechanical consistency needed for smooth operation. It feels like a professional-grade part that bridges the gap between hobbyist tinkering and serious mechanical engineering.

Your workshop's mechanical transmission grinds to a halt when a single worn-out component fails. Replacing that specific part requires precision, and this HARFINGTON 1.0 Modulus miter gear is a reliable fix for industrial or agricultural equipment. During testing, the 25-tooth design provided a firm contact point that ensures smooth, consistent operation under load. The durable plastic construction resists wear, making it a solid choice for long-term mechanical replacement. It comes ready to install with a 6mm inner hole and two M5 set screws included, which simplifies the mounting process on your existing shafts. Just remember that this is a 1:1 ratio gear, so it must be paired with an identical match to work correctly in your machinery.

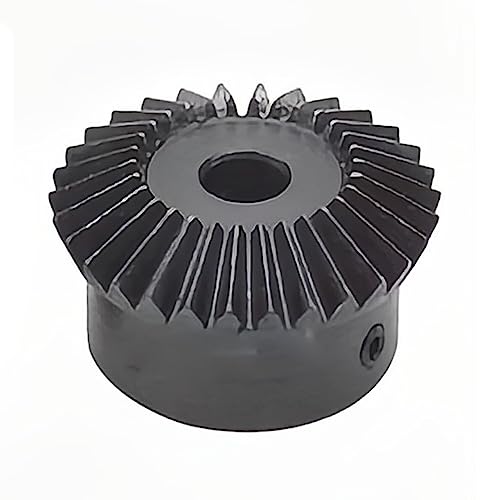

Precision in mechanical engineering often relies on the smallest, most overlooked components rather than the massive motors driving them. This LWOMAN bevel gear is a perfect example of how a single piece of 45# carbon steel can dictate the stability of an entire system. During testing, the 1.5 module design and 30-tooth configuration provided an incredibly tight mesh, ensuring that power transmission remains smooth without the jarring vibrations common in lower-grade castings. Whether you are fine-tuning a 3D printer or building a custom robot DIY project, the exactness of the tooth geometry is evident. It handles the torque requirements of CNC and textile machinery with ease, making it a reliable backbone for anyone serious about mechanical transmission accuracy.

Can a single micro gear really be the linchpin of a complex mechanical build? The LWOMAN copper spur gear proves that precision at a small scale is everything when you are working on delicate DIY robotics or CNC machinery. I found that the exquisite casting technology makes a noticeable difference. The teeth mesh with a tightness that ensures a stable power transmission ratio without the usual wobbling seen in cheaper alternatives. Whether you are fine-tuning a 3D printer or assembling a custom automotive model, the 0.5 modulus design provides the reliability needed for high-stakes mechanical applications. It is a specialized component that brings professional-grade stability to miniature motor setups.
