Understanding Resistance Types: NTC vs. PTC
The most fundamental decision you will make is choosing between Negative Temperature Coefficient (NTC) and Positive Temperature Coefficient (PTC) thermistors. NTC thermistors are the most common choice for temperature measurement. As the temperature increases, their resistance decreases. This predictable, non-linear curve is ideal for sensing temperature fluctuations with high precision. Conversely, PTC thermistors are typically used for circuit protection or self-regulating heating elements. In a PTC device, resistance increases as temperature rises, allowing the component to act as a resettable fuse that shuts down current flow if a circuit overheats. If your goal is measurement, look for NTC. If your goal is protection or heating, look for PTC.
Evaluating Sensitivity and Beta Value
When selecting an NTC thermistor for precision work, the 'Beta Value' (B-constant) is a critical specification. This value describes the shape of the resistance-temperature curve. A higher Beta value indicates a more significant change in resistance for every degree of temperature change, which translates to higher sensitivity. However, there is a trade-off: a very high Beta value might provide extreme precision in a narrow temperature window but become less reliable outside that range. You must ensure the thermistor's Beta value aligns with the specific temperature range your application will occupy to avoid calibration errors.
Temperature Range and Accuracy
Every thermistor has a functional operating window. A sensor designed for a laboratory incubator will fail miserably in a high-heat industrial furnace. Always verify the minimum and maximum operating temperatures before purchasing. Furthermore, consider the accuracy tolerance. Precision sensing requires thermistors with low tolerance ratings (often expressed as +/- 1% or better). If you are building a medical-grade device, a standard commercial-grade thermistor with a wide tolerance will result in unacceptable data drift.

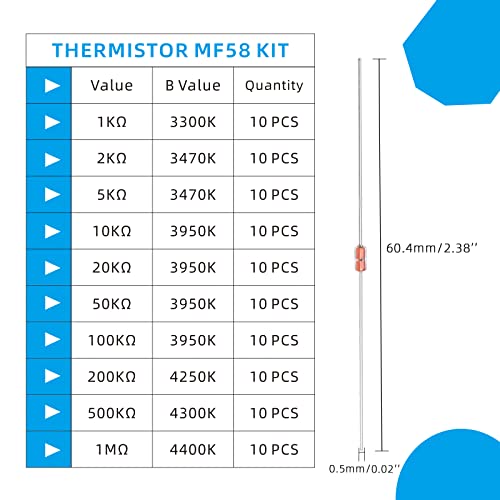

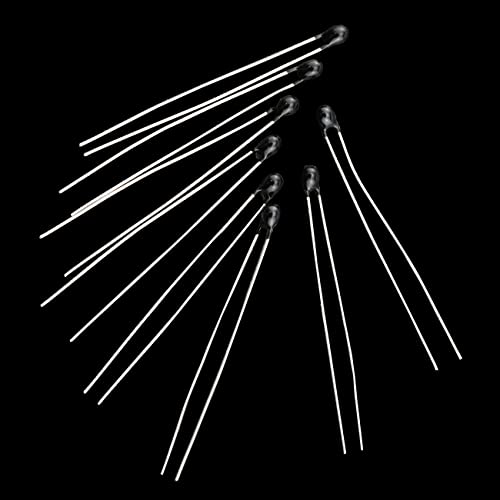

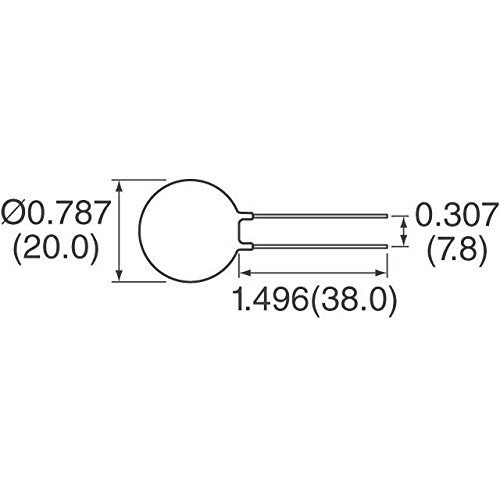

The environment dictates the physical build. For PCB-mounted applications, bead-type thermistors or surface-mount (SMD) versions are standard. However, if the sensor is being submerged in liquid or exposed to corrosive chemicals, you must look for encapsulated models. Glass-encapsulated thermistors provide excellent hermetic sealing and high-pressure resistance, making them ideal for industrial fluid monitoring. For high-speed response times, look for smaller bead sizes, as a lower thermal mass allows the sensor to react more quickly to rapid temperature spikes.
Lead Wire and Installation Considerations
Do not overlook the leads. The material of the lead wires (such as nickel, copper, or stainless steel) can affect the sensor's longevity and its ability to withstand heat. In high-temperature environments, specialized insulated leads are required to prevent the wiring from melting or introducing electrical noise into your signal. For long-distance sensing, consider the resistance of the lead wires themselves, as this can introduce errors into your readings if not properly compensated for in your circuit design.
