Best Mitutoyo Thread Gauges in 2026

Precision measurement tools often feel like they are designed for lab technicians rather than actual workshop users, but this Mitutoyo pitch gage bridges that gap effortlessly. While many gauges feel flimsy, this Japanese-made tool carries a sense of intentionality through its locking clamp, which keeps the 51 leaves securely in place while you work. I found the dual-system capability—covering both 4 to 42 TPI and 0.4 to 7mm—to be an absolute lifesaver when switching between imperial and metric hardware mid-project. Every single leaf is clearly marked with its specific thread pitch, eliminating the guesswork that usually leads to stripped threads. It is a compact, highly reliable solution for anyone who needs to verify thread accuracy without carrying a massive toolkit.

Precision measurement often feels like a battle against microscopic errors, but this Mitutoyo dial indicator turns that struggle into a controlled science. While many expect high-end metrology tools to be fragile, the design here is remarkably robust, featuring a stem that lacks a through screw-hole to provide genuine dust and water resistance. I found the involute curved lifting lever particularly impressive because it allows for a smooth spindle movement and a tool-less connection via the dovetail joint. With a 0-1 inch range and 0.001 inch graduations, it delivers the exact fractional inch accuracy needed for surface variation checks. Whether you are mounting it via the 4-48 UNF thread or using the lug back, the rotating bezel and limit markers make reading the 2.244 inch white dial intuitive and fast.

Precision threading requires much more than just eyeballing the tool angle, and settling for guesswork is a recipe for ruined workpieces. This Mitutoyo center gage is a fundamental tool for anyone serious about lathe work, specifically designed to help you grind and position thread cutting tools with absolute accuracy. The hardened construction and lapped edges ensure long-term durability and repeatable results in a busy shop environment. I found the inclusion of multiple thread checking scales—covering 14ths, 20ths, 24ths, and 32nds—to be incredibly practical for quick verification. It takes the frustration out of setting up 60-degree threads, making it an essential piece of kit for maintaining tight tolerances on every pass.

Precision machining demands more than the loose tolerances of entry-level tools, and the Mitutoyo 543-783B delivers the exact repeatability professionals require. I found the absolute electrostatic capacitance-type linear encoder to be incredibly reliable for measuring short linear distances within its 0.5-inch range. The 0.0005-inch resolution is crisp, and the ability to toggle between inches and metric on the LCD makes it a versatile addition to any workbench. Because it features a flat back for easy plate mounting and a robust IP42 rating against dripping water, it holds up well in active manufacturing environments. Whether you are checking small components or calibrating machinery, this indicator provides a level of accuracy that prevents costly errors.

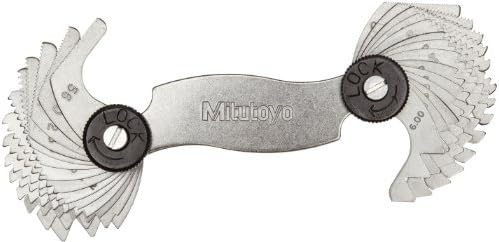

The Mitutoyo 188-152 Screw Pitch Gage is a precision powerhouse that eliminates the guesswork from thread identification. Having both inch and metric scales in one compact tool is a massive time-saver in any workshop setting. This 28-leaf set covers a wide range, spanning from 4 to 56 TPI on the imperial side and 0.5mm to 6mm on the metric side. I found the stamped thread pitch sizes on each individual leaf to be incredibly helpful, ensuring you never have to fumble through a manual to confirm a measurement. Whether you are working with a 12 TPI bolt or a 1.5mm metric screw, the fit is reliable and professional. It is a straightforward, high-quality essential for anyone serious about mechanical accuracy.

Precision machinists and quality control specialists require the Mitutoyo 2056S-01 because there is absolutely no room for error when measuring tolerances within a 0.01mm graduation. This dial indicator feels incredibly robust in hand, thanks to a stem spindle crafted from high-strength quench-hardened stainless steel and a durable carbide contact point. I was particularly impressed by the build quality of the internal grand gear, which uses wear-resistant stainless steel to prevent deformation over time. The high-visibility yellow dial makes reading the 0-25mm range much easier in dimly lit shop environments, while the hard-coated crystal protects the face from scratches and chemical exposure. With a gentle measuring force of 2.5N or less, it provides accurate feedback without marring delicate workpieces.

Precision measurement requires more than just guesswork or the imprecise feel of a standard ruler. This Mitutoyo screw pitch gage provides the exact metric clarity needed for fine mechanical work, spanning a comprehensive range from 0.25mm all the way to 2.5mm. With 28 individual leaves, you aren't left hunting for that one specific thread size in a pinch. I found the stamped sizing on each leaf to be a massive time-saver, eliminating the need to cross-reference a manual while you're mid-project. It is a rugged, professional-grade tool that turns a frustrating identification task into a quick, certain process. For anyone working in BISS applications where tolerances matter, this set offers the reliability you can actually trust.

Precision machinists working with heavy-duty power transmission components simply cannot afford to eyeball their thread angles. This Mitutoyo Acme gage is an essential calibration tool for anyone tasked with cutting or grinding threads that require a precise 29-degree included angle. It is specifically designed to handle the nuances of Acme threads where the side inclination is 12 1/2 degrees, ensuring your ANS setting tools are perfectly aligned. Since it is manufactured in the United States, you can trust the dimensional accuracy required for high-stakes mechanical work. Whether you are setting up a lathe or verifying a grinding operation, this gage provides the exact geometric verification needed to prevent costly errors in thread pitch and profile.

A rusted fastener on a vintage engine block can halt a restoration project in its tracks if you cannot identify the exact thread pitch. This Mitutoyo gage is the tool you reach for when that uncertainty hits, providing a reliable way to navigate the complexities of Whitworth threads. With 30 individual leaves covering a range from 4 to 42 TPI, it handles everything from coarse heavy-duty bolts to fine-threaded precision components. I particularly like that the thread pitch size is stamped directly onto each leaf, which prevents the guesswork and constant flipping through a manual that often plagues cheaper sets. It is a straightforward, professional-grade solution for anyone working in BISS standards who needs to confirm thread counts quickly and accurately.

Precision measurement often feels like it requires expensive digital sensors, but this manual tool proves that tactile accuracy still reigns supreme in a machine shop. The Mitutoyo screw pitch gage eliminates the guesswork involved in identifying thread counts by providing thirty individual leaves, each clearly marked with its specific thread pitch. I found the integrated locking clamp to be a standout feature because it keeps your selected leaves securely in place while you work, preventing the frustration of slipping blades. Spanning a range from 4 to 42 TPI, it covers a massive breadth of common applications. It is a straightforward, rugged piece of equipment that turns a potentially tedious identification process into a quick, reliable task for any technician.

Precision machinists and mechanical hobbyists cannot afford to guess when it comes to thread identification, making this Mitutoyo gage an absolute essential for any professional toolkit. I found that the 18-leaf configuration provides a comprehensive range for metric work, spanning from a fine 0.4mm all the way up to a substantial 7mm. The build quality is exactly what you expect from a brand like Mitutoyo, but the real standout is the legibility. Having the specific thread pitch size stamped directly onto each individual leaf eliminates the guesswork and saves significant time during inspections. Whether you are working on delicate components or larger fasteners, this tool ensures you are matching the correct pitch every single time without the frustration of trial and error.

Precision machining requires a level of scrutiny where even a thousandth of an inch can ruin a workpiece. I put the Mitutoyo 543-793 to the test in a high-stakes manufacturing environment, and its absolute electrostatic capacitance-type linear encoder delivered exactly the stability needed for short, linear measurements. With a 0.5" range and a razor-sharp 0.0001" resolution, this indicator removes the guesswork from tight tolerances. The lug back design makes rear mounting incredibly straightforward, and the ability to toggle between inch and metric displays on the LCD is a massive time-saver during complex setups. Even with the occasional drip of coolant or small debris in the shop, the IP42 rating provides a reliable layer of protection for this essential tool.

Precision machining demands more than the guesswork inherent in budget analog gauges, and the Mitutoyo 543-783 delivers the exact digital certainty required for high-stakes manufacturing. I found the absolute electrostatic capacitance-type linear encoder to be a game-changer for maintaining consistent accuracy across its 0.5" range. Whether you are toggling between inches and metric on the LCD or mounting it via the rear lug back, the interface feels incredibly intuitive for daily shop use. The 3/8" stem and #4-48 UNF thread mount provide a secure fit for various setups, while the IP42 rating offers peace of mind against minor drips and debris. It is a rugged, professional-grade tool that eliminates the drift often found in lesser electronic indicators.
