Best 2 Differential Amplifiers in 2026

Load Maximum Current: +/-5Amp, +/-20Amp and +/-30Amp selectable. Load Frequency Bandwidth: DC ~ 80 kHz. Minimum Isolation Voltage: 2.1 kV(RMS). Operating Voltage: Regulated 5VDC, or 8 ~ 35VDC. Operating Current: 20mA(max).

The item provides economical and precise solutions for AC or DC current sensing in industrial, commercial, and communications systems. Typical applications include motor control, load detection and management, switched-mode power supplies, and overcurrent fault protection.

Output voltage proportional to AC or DC currents.

Best Operating Voltage: +/-9Vdc to +/-15Vdc.

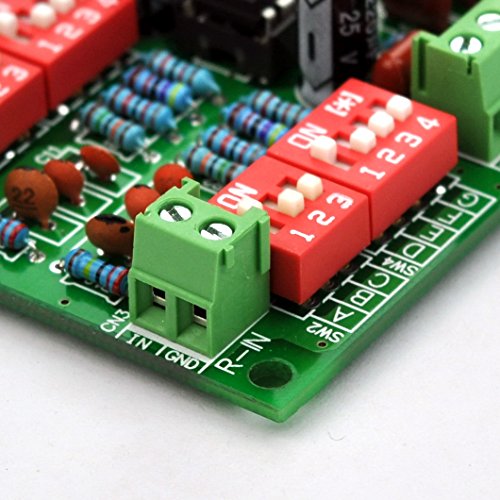

Gain: 30 / 50dB, DIP switch on board option.

RIAA Accuracy: <1.5dB.

Power supply: 5V-24V can be, but depends on how much the baby with the voltage output (if the customer requires output 5V voltage, then the AD62X series of chips is about ± 3.8V power supply, the regulator chip itself has a pressure difference, so it is recommended that the voltage is higher than 12V single Power supply is better)

Bandwidth: AD620/623 is lower than 50KHz at high gain and greater than 1MHz at low gain Input signal type: single-ended signal or differential signal

The maximum magnification: more than 2000 times (actual measurement), due to the gain assembly resulting in greater fluctuations in the waveform band, it is recommended to use high-gain multi-stage amplification

♥Introduction: The AD620 is a low-cost, high-accuracy instrumentation amplifier that requires only one external resistor to set the gain over a gain range of 1 to 10,000. Ideal for portable (or remote) applications. With high accuracy, low offset voltage, and low offset drift, the AD620 is ideal for precision data acquisition systems such as electronic scales and sensor interfaces. Also features low noise, low input bias current, and low power consumption. The module has a fixed voltage output.

♥Basic Features: ✭Module Name AD620 Instrument Programmable Amplifier ✭Module size:50mm * 50mm ✭Module power supply: 5V-24V ✭Module input signal type: single-ended signal or differential signal ✭Module signal input and output range: the input signal range is within 100 microvolts of the power supply, and the output signal range is within the power supply ✭Module bandwidth: AD620: 120KHz (G=100), AD623: 800KHz (G=1), AD620/623 is lower than 50KHz at high gain, and higher than 1MHz at low gain

♥ Other Features: ✭Module gain: When there is no solder slip, the AD620 will zoom by 10 times by default, and the AD623 will zoom by 20 times by default. During welding slip, AD620: G=1+50K/Rg, AD623: G=1+100K/Rg ✭Maximum magnification of the module: more than 2000 times (actual measurement), due to the large gain of the waveform frequency band, it is recommended to use multi-stage amplification with high gain ✭Fixed output voltage: 5V-10V (default delivery 5V)

▶ HIGH SENSITIVITY -- Features high precision, high sensitivity, high stability, and durable in use. Package List: 1 * Load Cell Transmitter

▶ PRECISELY AMPLIFY -- The internal high-performance device is used to precisely amplify the sensor output signal, internal voltage regulation, constant current bridge, voltage and current conversion, impedance matching, linear compensation, humidity compensation, etc.

▶ CONVERT OUTPUT -- Convert the mechanics and quantity into standard current and voltage signal output, which can be switched from 0~5V/0~10V

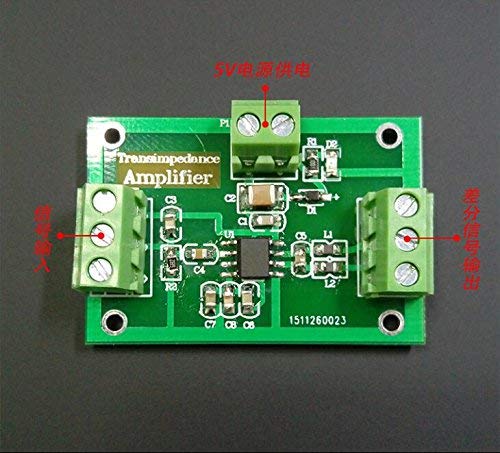

The AD8015 is a wide bandwidth, single supply transimpedance amplifier optimized for use in a fiber optic receiver circuit. It is a complete, single chip solution for converting photodiode current into a differential voltage output.

The 240 MHz bandwidth enables AD8015 application in FDDI receivers and SONET/SDH receivers with data rates up to 155 Mbps. This high bandwidth supports data rates beyond 300 Mbps. The differential outputs drive ECL directly, or can drive a comparator/ fiber optic post amplifier.

In addition to fiber optic applications, this low cost, silicon alternative to GaAs-based transimpedance amplifiers is ideal for systems requiring a wide dynamic range preamplifier or singleended to differential conversion.

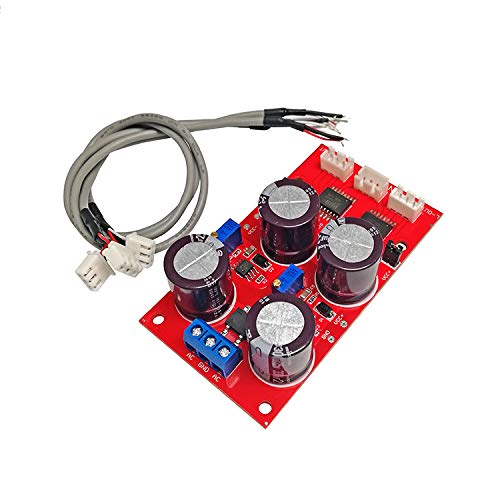

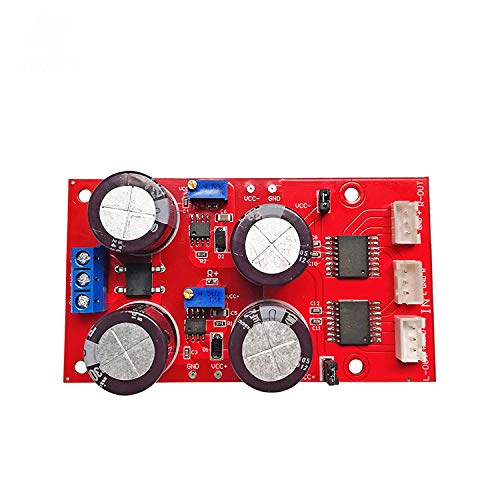

The unbalanced-to-balanced board can be used to match the power amplifier board with differential input (balanced input), or it can be used as a dual-channel power amplifier board to change the BTL output.

The power supply adopts LM317+LM337 adjustable regulated power supply

Working voltage: AC dual 5v-16v; DC dual 7v-24v

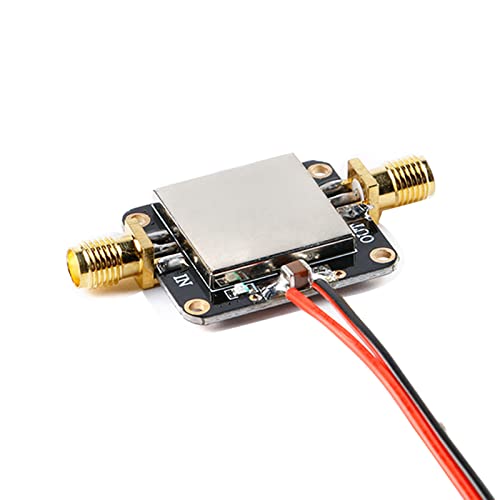

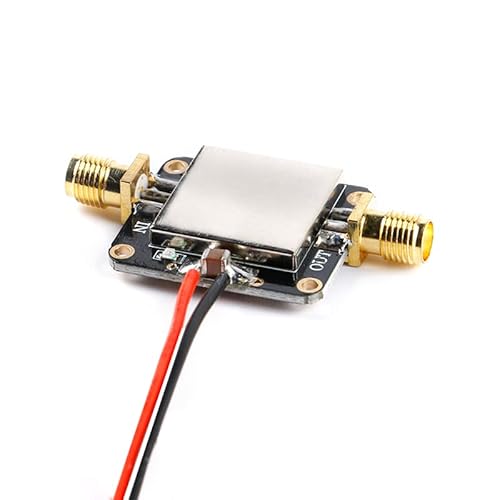

This amplifier has the advantages of a wide frequency range, high gain, and low noise figure

Power supply voltage: 12V DC; Input-output impedance: 50 Ω

Module gain: 12dB (gain varies under different bandwidths); Chip bandwidth: 10MHz~8GHz

7900W high-power car amplifier can effectively improve the sound quality of car audio and bring a nice experience to users.

It can amplify the weak signal from the audio source or pre-amplifier, without changing the sound quality, and promote the sound of the speaker.

Premium aluminum alloy housing, exquisite and beautiful, high-end texture, strong shock resistance. With multiple cooling holes, quick heat dissipation and nice stability.

Name: THS4131 Fully Differential Amplifier Size: 45mm X 34mm Supply Voltage Range: 5V Single Supply ±15V Dual Supply

This module can implement single-ended to differential, single-ended input, and double-ended output. Has high performance, low noise, wide power supply voltage range and other advantages.

The THS413x consists of a true fully differential signal path from input to output. This design produced excellent common-mode noise suppression wells that improved total harmonic distortion.

This product is a differential to single ended amplifier, with a 270MHz bandwidth and a very high common mode rejection ratio (CMRR) at high frequencies.

This product can be effectively used as a high-speed instrument amplifier or to convert differential signals into single ended signals.

AD8130 has excellent common mode suppression（ 70dB@10MHz ）, allowing the use of low-cost, non shielded twisted pair cables without fear of being damaged by external noise sources or crosstalk.

Name: AD8130 Differential Amplifier Size: 43mm X 38mm Supply voltage range: ±5V~±12V

The differential-to-single-ended amplifier, which has a 270-MHz bandwidth and a very high common-mode rejection ratio (CMRR) at high frequencies, can also be effectively used as a high-speed instrumentation amplifier or to convert a differential signal to a single-ended signal.

Differential amplifiers can process single-ended inputs as interactive differential outputs or treat differential inputs as differential outputs. These amplifiers have two independent feedback loops that control the differential and common-film output voltages, respectively.

INA114 is a low-cost, high-precision instrumentation amplifier that only requires an external resistor to set the gain, and the gain range is 1 to 10000.

This module can magnify 3000 times

the weak signal detection effect is excellent, and can input single-ended signals or differential signals.

Use Good PCB: Adopting premium PCB material, not likely to malfunction, and has excellent durability for long using.

Easy to Install: Comes with a light weight and a compact size as well, the easy installation can be quickly completed.

Wide Utility: Can be used for analogue or digital video signals and high speed data transmission with good stability.

RF Amplifier: For receivers that need to convert single ended signals into differential signals for high speed signal transmission over twisted pair cables.

Reliable Use: Very high common mode rejection ratio, that is CMRR, at , so the efficiency is very high.

Wide Utility: Can be used for analogue or digital video signals and high speed data transmission with good stability.

Usually the CTRL pin is connected to the MUTE pin of Bluetooth.

The amplifier board is in ACF-1 mode by default. When using the CTRL mode setting, solder R5 off.

The appearance and color of different batches , which does not affect the .

AD8130 Amplifier Board Module Differential to Single-ended High Common-mode Rejection Ratio Low Noise and Low Distortion Module
