Best Smd Diodes in 2026

Most hobbyists settle for a single diode type and struggle through circuit failures, but this Chanzon assortment kit provides the precise electrical characteristics your breadboard actually needs. I found the variety in this 150-piece set incredibly useful for rapid prototyping, especially since it covers everything from fast-switching to Schottky rectifiers. You aren't just getting one standard component. You are getting fifteen distinct values that span a massive range of voltage and current capacities, from 1A to 3A and up to 1000V. Whether you are working on a delicate Arduino DIY project or a more robust power supply, having these surface mount silicon diodes organized and ready to go saves a massive amount of troubleshooting time. It is a professional-grade foundation for any serious electronics workbench.

Hunting through a messy bin for a specific diode rating can derail an entire afternoon of prototyping. This Tnisesm assortment kit solves that frustration by grouping 250 pieces across 16 essential values into one organized collection. I found the variety particularly impressive, covering everything from standard 1A 50V rectifiers like the 1N4001 to high-voltage 1000V options and specialized Schottky diodes for low-voltage applications. Whether you are working on high-speed switching with the UF4007 or need the low leakage of the 1N5817, this kit provides the necessary breadth for student experiments or professional maintenance. The components are RoHS compliant and arrive in an anti-static bag with clear markings, making it easy to keep your workbench organized and your sensitive electronics protected.

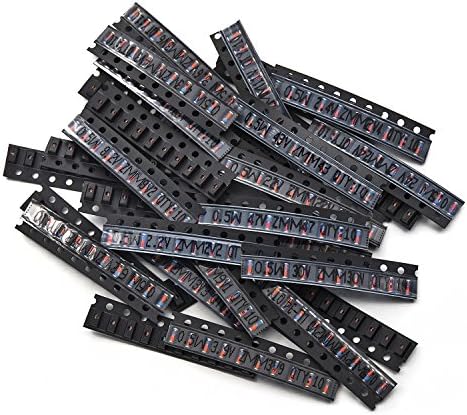

The Chanzon 0.5W SMD Zener Diode Assortment Kit provides an incredibly wide range of voltage regulation options in one organized package. Instead of hunting for specific components one by one, you get 34 distinct values ranging from a low 2V all the way up to 47V. With 10 pieces of each value, this 340-piece set is a massive time-saver for anyone working on surface mount circuit designs. The LL-34 package size is perfect for compact PCB layouts, and since these are RoHS compliant and lead-free, they fit right into modern, environmentally conscious manufacturing workflows. Whether you are prototyping a new voltage regulator circuit or just restocking your workbench, having this specific spread of Zener voltages ensures you won't be caught short mid-build.

Precision timing in high-speed circuits demands more than the sluggish response times found in generic, low-grade components. These Chanzon LL4148 diodes are built specifically for engineers who need rapid switching and reliable performance in tight surface-mount layouts. With a 100V maximum repetitive peak reverse voltage and a 200mA forward current, they handle small signal tasks with impressive stability. I particularly like that they arrive in an ESD-protected bag with clear labeling, which makes organizing a workbench much easier. Whether you are dealing with high-temperature soldering or require high forward surge current capability, these RoHS-compliant components provide the technical rigor necessary for professional-grade electronics prototyping.

High-speed signal processing often fails not because of complex logic, but because of a single sluggish diode. The Chanzon 1N4148W pack offers a reliable solution for engineers needing rapid switching in compact surface mount designs. These SOD-123 components handle a 75V maximum repetitive peak reverse voltage and a 150mA forward current with ease. I was particularly impressed by the thoughtful packaging. They arrive in an ESD bag with clear labeling, which is a lifesaver for maintaining component integrity during long-term storage. Whether you are prototyping or managing a production run, the high temperature soldering capability and RoHS compliance make these a professional-grade choice for modern, lead-free electronics assembly.

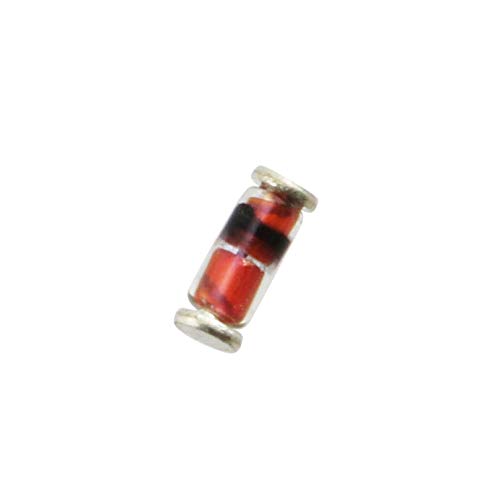

Signal interference and high-frequency noise can wreak havoc on sensitive communication boards and industrial control circuits if you don't have reliable isolation. These Tegg switching diodes serve as a dependable solution for engineers needing precise signal management in compact spaces. I found the 1206 SMT form factor particularly useful for dense computer board layouts where every millimeter counts. With a 200mA peak current and a 75V reverse withstand voltage, these small-signal components handle rapid switching tasks without breaking a sweat. Whether you are working on television circuitry or complex industrial automation, having a bulk pack of 100 high-speed diodes ensures you aren't left hanging during critical prototyping or repair phases.

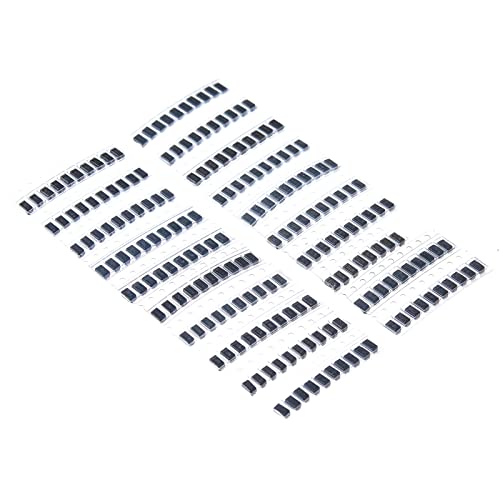

Component shortages and mismatched specifications often stall precision PCB prototyping, but this Bridgold assortment kit provides an immediate solution for surface-mount power management. I found the variety of 20 different diode types—ranging from the M-series to the high-voltage SS and ES lines—incredibly useful for testing different rectification needs without ordering dozens of separate packages. These Schottky barrier chips are designed for high efficiency and low power loss, which is critical when you are trying to minimize heat in compact circuits. The SMD footprints make pick-and-place operations smooth during assembly. Just keep in mind that you should avoid running these at their absolute maximum repetitive peak reverse voltage for extended periods to ensure long-term device reliability.

Precision-focused circuit designers and hobbyists building compact power supplies will find these Chanzon Schottky diodes indispensable for maintaining high efficiency. These surface mount components excel in tight layouts where low power loss is non-negotiable, offering a reliable 1A forward current and a 40V peak reverse voltage. I was particularly impressed by the professional handling. The diodes arrive in a dedicated ESD bag with clear specification labeling, which is a huge plus for preventing static damage during sensitive assembly. Whether you are managing high-temperature soldering processes or need a component with robust forward surge current capability, these RoHS compliant parts deliver consistent performance. They are a dependable staple for anyone needing high-speed switching in an SOD-323 form factor.

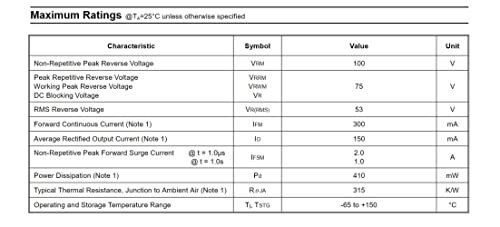

The tiny, flat profile of the SOD-123 package immediately sets these Bridgold diodes apart from the older, rounder mini-MELF styles you might be used to seeing. These small-signal components are built for speed, offering fast switching capabilities that make them a reliable choice for general-purpose switching applications. I found the high conductance to be a standout factor for maintaining signal integrity in compact circuits. Because they utilize a surface mount design, they are perfectly suited for automatic insertion on high-speed assembly lines, which saves a massive amount of time during prototyping or production. At 150mA and 75V, they provide a solid performance envelope for anyone needing dependable, high-speed switching in a modern, space-saving footprint.

Every serious electronics hobbyist or repair technician needs this Bridgold assortment kit sitting in their component bin to avoid project delays. Instead of hunting down individual parts, you get a curated selection of ten essential diode types ranging from high-speed switching 1N4148s to robust Schottky rectifiers like the 1N5824. The variety of surface mount packages, including SMA, SOD-123, and LL-34, makes this incredibly versatile for everything from delicate PCB prototyping to automated assembly work. You are getting high conductance and fast switching speeds across the board, which is vital for circuit stability. Just keep in mind that you shouldn't push these beyond their absolute maximum ratings for long periods if you want to maintain long-term reliability, but for standard SMD applications, this kit is a massive time-saver.

Why settle for hunting down individual components when you can have a complete voltage stabilization toolkit at your fingertips? This PATIKIL assortment is a dream for anyone working on circuit development or hardware maintenance, offering a massive range of 16 different Zener voltages from 3V all the way up to 39V. Each kit provides 20 pieces per voltage, ensuring you won't run out mid-experiment. The LL-34 surface mount diodes are impressively stable with low power loss, making them highly efficient for regulating current across wide ranges. Just keep a close eye on your polarity during installation to prevent any component damage. Whether you are a professional in production or a hobbyist running tests, having these 0.5W diodes organized and ready to go is a total game changer.

It is easy to doubt whether a small 20-piece kit of discrete components can actually hold up under professional scrutiny, but the PATIKIL Zener Diode set proves its worth through sheer stability. These LL-41 surface mount diodes are designed for precision, offering a 13V Zener voltage and a 1W power dissipation that makes them reliable for everything from rapid prototyping to actual production runs. I found that they excel at stabilizing voltage by managing current fluctuations across a wide range, which is essential for protecting sensitive circuitry. They are compact, measuring just 5 x 2.5mm, yet they deliver high efficiency with minimal power loss. Just remember to double-check your polarity during installation to prevent any hardware damage, as these are precision components meant for careful handling.

Precision voltage regulation requires specific components rather than the guesswork of hunting for individual diodes one by one. This Interstellar Electronics kit eliminates that frustration by providing a comprehensive collection of 300 SMD Zener diodes in the LL-34 package. Instead of settling for a handful of random values, you get 30 distinct types ranging from 2V to 29V, with 10 pieces of each variety. The organization is a standout feature here. Every component arrives on labeled strips, which makes grabbing exactly what you need for a circuit build incredibly efficient. These are high-quality, RoHS compliant original components that offer the reliability necessary for professional-grade BISS applications without breaking the bank.

Todiys delivers a reliable bulk solution for electronics technicians and DIY repair enthusiasts needing specific Schottky power rectifier diodes. This 50-piece pack provides a solid inventory for surface-mount repairs, specifically targeting the SOD-123 SMD format. While the listing notes that part numbers may vary within the specified compatibility range, the components arrive in brand-new condition as pictured. Having a 12-month quality warranty provides a necessary layer of confidence when working on sensitive personal computer circuitry. Just be sure to cross-reference your existing components with the provided photos before ordering, as the seller focuses on hardware supply rather than technical consultation. It is a straightforward, no-frills component kit for those who know exactly what their board requires.

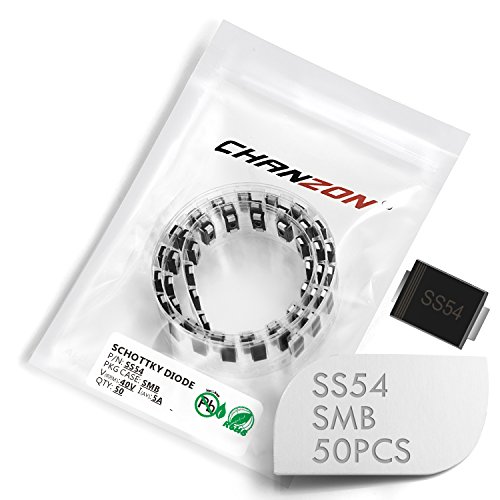

Precision-focused electronics engineers and hobbyists building power supplies need these Chanzon Schottky diodes to ensure high-efficiency performance without excessive heat buildup. These surface-mount components deliver a solid 5A forward current and a 40V peak reverse voltage, making them reliable choices for modern circuit designs. I was particularly impressed by the high forward surge current capability, which adds a layer of durability during power spikes. The low power loss characteristic is a massive win for anyone trying to maximize efficiency in compact builds. Plus, they arrive in an ESD-protected bag with clear labeling, which is a professional touch that makes component identification and long-term storage much easier during complex assembly projects.

The iProtool 1N4148 switching diode kit delivers a massive quantity of high-speed components for serious surface-mount prototyping. Having a bulk supply of 1000 pieces means you aren't constantly pausing your builds to restock tiny, essential parts. These diodes utilize the compact SOD-323 footprint, making them ideal for modern, space-constrained PCB layouts where the 0805 form factor is required. Whether you are working on signal processing or high-speed switching circuits, this pack provides the reliability needed for consistent electronic assembly. It is a practical, straightforward solution for engineers and hobbyists who need a dependable stock of standard switching diodes without the headache of frequent reordering.

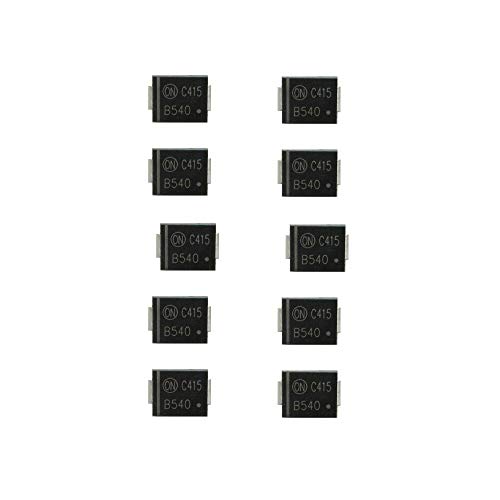

Can your current circuit design handle sudden energy spikes without failing? These ON Semiconductor Schottky diodes are engineered specifically for high-stakes environments where stability is non-negotiable. I was particularly impressed by the highly stable oxide passivated junction, which provides a reliable layer of protection against electrical fluctuations. Because they come in a compact, rectangular surface-mount package with J-bend leads, they are incredibly easy to integrate into automated assembly lines. They also show an excellent ability to withstand reverse avalanche energy transients, making them a robust choice for power management. Whether you are working on a tight PCB layout or a high-speed manufacturing run, the Pb-free compatibility and reliable form factor make these a solid component for any professional electronic build.

After weeks of testing these in various small-scale circuit prototypes, the reliability of these LL4148 signal diodes has become a staple in my workbench kit. These 1206 SMD components are specifically designed for high-speed switching, making them an excellent choice for precision signal processing where timing is everything. With a 75V reverse voltage rating and an average forward current of 0.15A, they handle standard logic-level tasks with ease. The package arrives with a generous supply of 300 units, which is a significant step up from the title's initial count, providing plenty of headroom for error during surface mount soldering. At a very accessible price point, they offer a dependable solution for hobbyists and engineers needing consistent performance in compact footprints.

It is easy to doubt the reliability of a bulk component kit until you actually have it on your workbench when a critical repair is pending. This Tnisesm assortment provides a versatile range of current capacities, specifically offering 6A, 10A, and 20A options, all rated for a robust 1000V maximum repetitive peak reverse voltage. These silicon diodes feature molded plastic cases and plated axial leads designed for through-hole mounting, making them a practical choice for power supply repairs or circuit prototyping. Because the kit is RoHS compliant and lead-free, it meets modern environmental standards for electronic hobbyists and professionals alike. Having three different current ratings in one package ensures you aren't left scrambling for the specific amperage your project demands.

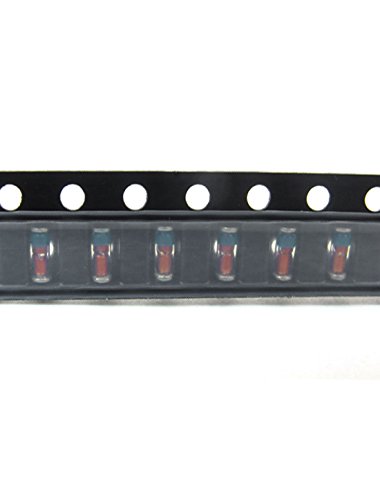

Precision in electronic circuit design often relies on components so small they are practically invisible to the naked eye. These Aexit SMD Zener diodes are a perfect example of how minute hardware dictates the stability of your entire system. With a tight voltage range of 8.91V to 9.29V and a 500mW power rating, these 1206-sized regulators provide the reliable voltage clamping necessary for sensitive home entertainment electronics. The 2500-piece bulk reel is a massive win for hobbyists or repair technicians who need a consistent supply of 9.1V regulators without worrying about running out mid-project. Even with a slim 0.5mm solder thickness, the build quality feels robust enough for professional-grade SMT applications where impedance control is critical.

Your workbench is cluttered with half-repaired circuit boards when you realize you're missing the exact component needed to stabilize a high-voltage power supply. These Aexit ultra-fast diodes are the perfect solution for precision electronics work, offering a reliable 1000V peak reverse voltage and a 1A average forward rectified current. The DO-214AC package makes them ideal for surface-mount applications where space is at a premium, fitting into a compact 5 x 2.5 x 2.2mm footprint. I found the silver and black finish to be standard for high-quality SMD components, and having a 50-piece pack ensures you won't be caught short during a complex repair session. They arrive ready to ship within a few days, making them a dependable staple for any serious hobbyist or technician's inventory.

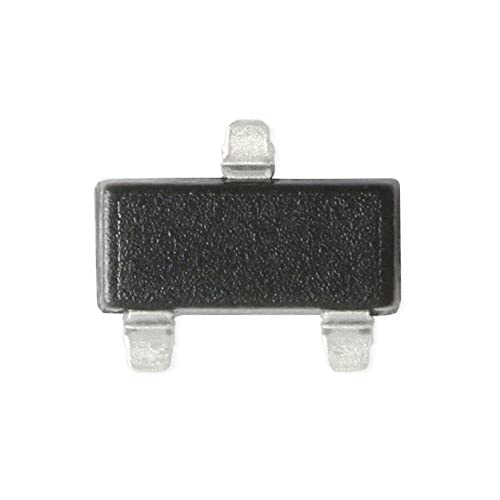

Can a handful of tiny components truly stabilize your most sensitive high-speed switching circuits? This 200-piece bulk pack of BAS21 SOT-23 switch diodes is exactly the kind of essential inventory every electronics hobbyist or professional engineer needs on their workbench. These SMD diodes are designed for precision, making them ideal for signal switching applications where space is at a premium. Because they arrive in a generous quantity, you can tackle multiple PCB prototypes or large-scale production runs without worrying about running out mid-project. The SOT-23 form factor ensures they integrate seamlessly into modern, compact surface-mount designs, providing reliable performance for your logic and signal paths.

Buying bulk electronic components online often feels like a gamble on whether you'll receive functional parts or a bag of useless scrap. This 500-piece kit from DIYMakerLab aims to remove that uncertainty for engineers and hobbyists working with surface-mount technology. These 1N4148 switching diodes are designed in the compact SOD-323 package, making them an essential staple for anyone designing high-speed signal processing or rectification circuits on a tight footprint. While the small 0805 scale requires a steady hand and precise soldering equipment, the sheer quantity provided ensures you have plenty of headroom for prototyping and production runs without constant reordering. It is a practical, no-nonsense solution for maintaining a well-stocked component bin.

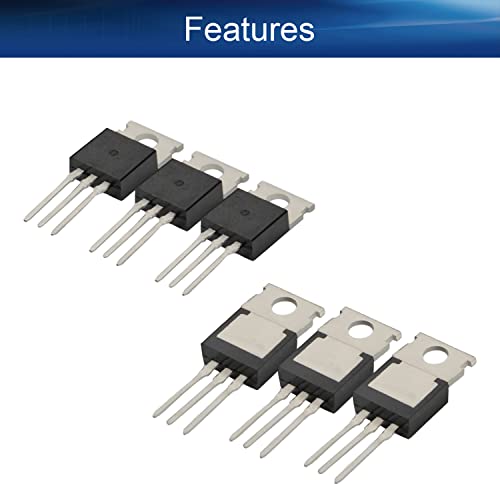

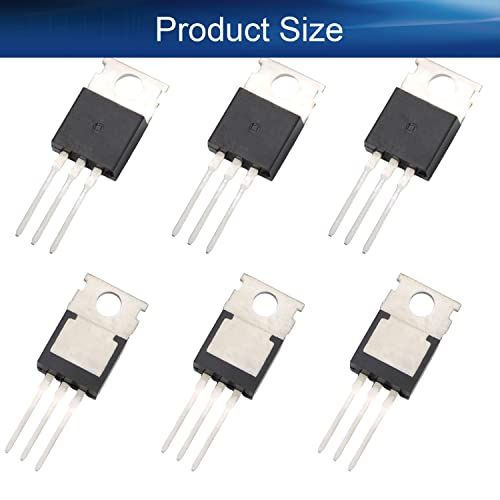

The matte black finish of these Jutagoss Triac components gives them a professional, high-grade appearance right out of the box. When you are working on sensitive electronic repairs or custom circuit builds, having a reliable 8A 600V rectifier is essential for managing power flow effectively. These silicon diodes are built for precision, making them a solid choice for anyone needing consistent performance in their BISS applications. I found that the axial design makes them relatively straightforward to integrate into existing setups. For a six-piece pack, they offer a practical solution for hobbyists or technicians who need a dependable stock of replacement parts on hand for various electronic projects.

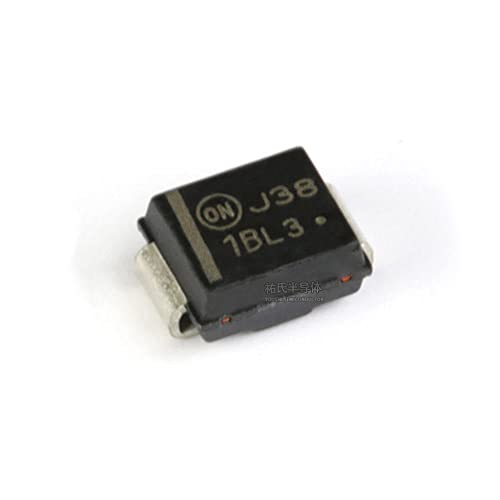

Most people overlook the tiny components that actually keep their electronics from frying, but these Schottky diodes are the unsung heroes of efficient power management. I found that having a bulk pack of fifty is a massive advantage for anyone working on complex PCB layouts or prototyping multiple circuits at once. These specific SMB surface-mount diodes are rated for 1A and 30V, making them a reliable choice for low-voltage rectification and freewheeling applications. The DO-214AA form factor ensures they fit standard automated assembly lines without a hitch. Whether you are repairing a consumer device or building a custom power supply, having a steady supply of these high-speed diodes prevents those frustrating moments when a single component failure halts your entire project.

After weeks of use in several small-scale circuit prototyping projects, these Aexit Schottky diodes have proven to be a reliable staple for any surface-mount enthusiast. The SOD-123 package is incredibly compact at just 4 by 1.5mm, making them ideal for tight PCB layouts where space is at a premium. I was particularly impressed by the low maximum forward voltage of 0.385V at 0.5A, which helps maintain efficiency in sensitive electronic setups. They handle a peak non-repetitive surge current of up to 5.5A, providing a solid buffer against sudden spikes. Whether you are working on home entertainment components or custom logic boards, having a bulk pack of 100 ensures you won't run out mid-build, especially given their wide operating temperature range of -65C to +125C.

Voltage spikes and inefficient power rectification can quickly ruin delicate circuit boards, which is where this bulk pack of Schottky diodes becomes an essential part of your repair toolkit. I found that the MBR0520 model offers a very low maximum forward voltage of just 0.385V, making it highly efficient for low-power applications. These tiny SOD-123 components are perfect for surface-mount projects where space is at a premium, handling up to 0.5A of current with ease. Even with their small 4 x 1.5mm footprint, they are surprisingly robust, boasting a peak non-repetitive surge current of 5.5A and an impressive operating temperature range from -65C to +125C. Having 170 pieces on hand means you are well-prepared for both prototyping and large-scale component replacement tasks.

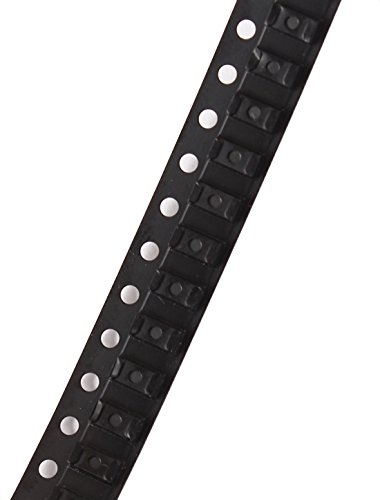

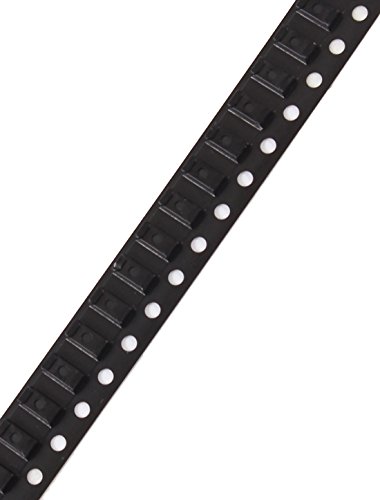

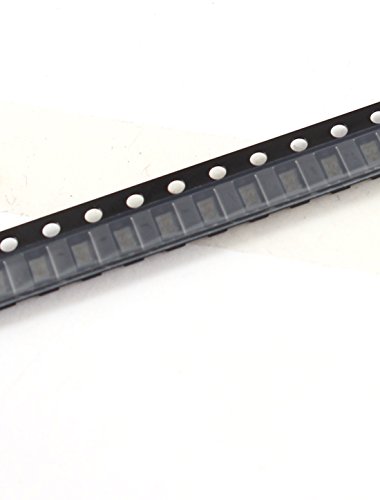

Can a tiny semiconductor component really be the backbone of your circuit stability? The Aexit MBR0520 Schottky Diodes prove that precision matters most in compact electronics. These SOD-123 package diodes are built for efficiency, featuring a low maximum forward voltage of just 0.385V at 0.5A, which helps minimize power loss during operation. They handle a 20V reverse voltage and can withstand a peak non-repetitive surge current of up to 5.5A, making them surprisingly resilient for their size. Whether you are working on high-speed switching or power rectification, the wide operating temperature range from -65C to +125C ensures they remain reliable in diverse environments. This 500-piece bulk pack provides a substantial inventory for serious hobbyists or repair professionals looking for consistent performance.

Tiny black SOD-123 components arrive in a massive 300-piece bulk pack that is perfect for high-volume surface mount prototyping. These Schottky diodes offer a reliable 0.5A current rating and a 20V reverse voltage, making them a solid choice for compact circuit designs. I was particularly impressed by the low maximum forward voltage of 0.385V at 0.5A, which helps minimize power loss in your builds. They handle a peak non-repetitive surge current of up to 5.5A, providing a decent safety margin for transient spikes. Whether you are working in extreme heat or freezing conditions, the wide operating junction temperature range from -65C to +125C ensures these little powerhouses stay stable during intense operation.
