Best Bridgold in 2026

Low Power Loss and High Efficiency

Through Hole with #10 Screw Mounting

Electrically Isolated Metal Case for Maximum Heat Dissipation

Nine N-channel and one P-channel transistors with very low on-resistance per silicon area.

This package has 50 transistors and 10 IRF series, just a perfect combination to meet your needs.

Each transistor model is clearly labeled for easy identification.

IC Assortment contains: LM324, LM358, LM386, LM393, UA741, NE5532,NE555,PC817,ULN2003,ULN2803

Including 10 pcs DIP4 socket, 60 pcs DIP8 socket, 5 pcs DIP14 socket, 5 pcs DIP16 socket,5 pcs DIP18 socket

We have chosen a variety of useful IC types for daily assembly, such as: precision timers, dual operational amplifiers, audio amplifiers, Darlington arrays, quad operational amplifiers, etc.

We carefully select the combination of 74HCXX series and 74LSXX series for you to meet your needs for IC chip work.

74HCxx Series Shift Output Registers IC chip.

The most popular 74LSx series IC chip kit.

Low reverse leakage current

Low power loss,High Efficiency

Electrically Isolated Metal Case for Maximum Heat Dissipation

Monolithic Construction with Built-In Base-Emitter Shunt Resistors

High DC Current Gain - hFE = 2500 (typ) @ IC = 4.0 Adc

Manufacturer Part Nos with S or NSV prefix are automotive qualified to AEC-Q101 standard.

High Current Gain Bandwidth Product fT = 3 MHz (min) @ IC = 500 mAdc

Collector-Emitter Saturation Voltage - VCE(sat) = 1.5 V (Max) @ IC = 6.0 Adc

Collector-Emitter Sustaining Voltage -VCEO(sus) =100 Vdc (min) - TIP41C, TIP42C

High DC Current Gain - hFE = 2500 (typ) @ IC = 4.0 Adc

Monolithic Construction with Built-In Base-Emitter Shunt Resistors

Collector-emitter saturation voltage - VCE (sat) = 2 V (maximum) at IC = 3 A

±20V Gate-source voltage

Dynamic dv/dt rating

Fast switching

Medium Power Linear Switching Applications

Complement to TIP41 Series

Complementary PNP-NPN devices

Superior Temp. Stability for Automotive or Industrial Applications

4.5 V to 24 V Operation … Needs Only An Unregulated Supply

Open-Collector 25 mA Output … Compatible with Digital Logic

Superior Temp. Stability for Automotive or Industrial Applications

4.5 V to 24 V Operation … Needs Only An Unregulated Supply

Reverse Battery Protection

On resistance Rds(on) of 20mohm at Vgs of -10V

Dynamic dv/dt Rating

Ultra Low On-Resistance

Collector-Emitter Sustaining Voltage -VCEO(sus)=100 Vdc (min) - TIP31C, TIP32C

Complementary PNP-NPN devices

Collector-Emitter Saturation Voltage - VCE(sat) = 1.2 Vdc (Max) @ IC = 3.0 Adc

High Voltage Capability

High Switching Speed

Suitable for Electronic Ballast and Switching Mode Power Supply

Dynamic dV/dt Rating

Fast Switching

Simple Drive Requirements

Low forward voltage drop

Ideal for printed circuit board

High surge forward current capability

Low Power Loss and High Efficiency

Through Hole with #10 Screw Mounting,Diffused Junction

Electrically Isolated Metal Case for Maximum Heat Dissipation

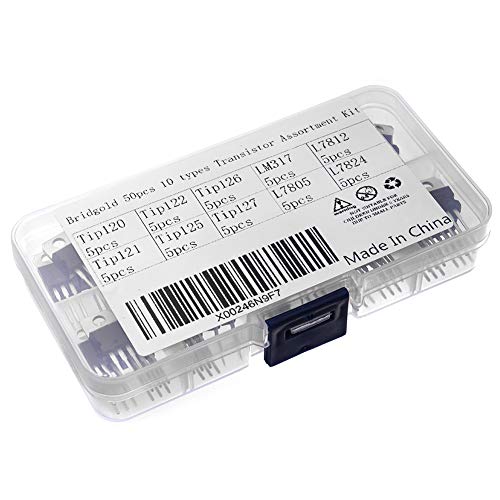

inculding 5PCS*TIP120 5PCS*TIP121 5PCS*TIP122 5PCS*TIP125 5PCS*TIP126 5PCS*TIP127 5PCS*LM317T 5PCS*L7805CV 5PCS*L7812CV 5PCS*L7824CV

6 Darlington Transistor Output Currents: 5A

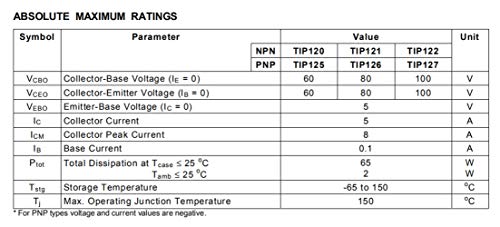

Collector-emitter sustaining voltage - VCEO (sus) = 60 V (minimum) - TIP120, TIP125 80 V (minimum) - TIP121, TIP126 100 V (minimum) - TIP122, TIP127

52A, 60V, RDS(on) = 0.022Ω @VGS = 10 V

Low gate charge ( typical 31 nC)

Low Crss ( typical 65 pF)

Power dissipation-PD = 75W at TC = 25°C

NPN Transistor 10A 60V

Power Switching And General Purpose Amplifier

The most popular 74LSx series IC chip kit.

There are 2 models for each model, a total of 20, placed in a convenient box.

A new product that is capable of meeting the data requirements at work.

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension

Dynamic dV/dt rating

Repetitive avalanche rated

150°C Operating temperature Max

Dynamic dV/dt Rating

Repetitive Avalanche Rated

Isolated Central Mounting Hole

Low profile package

Built-in strain relief

Glass passivated junction

10 packages

Brand new MPF102

MPF102 is used in low on-resistance analog switches

Noise Immunity Greater Than 50%

No Limit On Input Rise and Fall Times

For Quiescent Current at 20 V

Timing From Microseconds to Hours.

Astable or Monostable Operation.

Adjustable Duty Cycle.

Wide analog input voltage range: ± 5 V

Logic level translation: to enable 5 V logic to communicate with ± 5 V analog signals

Output capability: non-standard
