Power supply: 5V-24V can be, but depends on how much the baby with the voltage output (if the customer requires output 5V voltage, then the AD62X series of chips is about ± 3.8V power supply, the regulator chip itself has a pressure difference, so it is recommended that the voltage is higher than 12V single Power supply is better)

Bandwidth: AD620/623 is lower than 50KHz at high gain and greater than 1MHz at low gain Input signal type: single-ended signal or differential signal

The maximum magnification: more than 2000 times (actual measurement), due to the gain assembly resulting in greater fluctuations in the waveform band, it is recommended to use high-gain multi-stage amplification

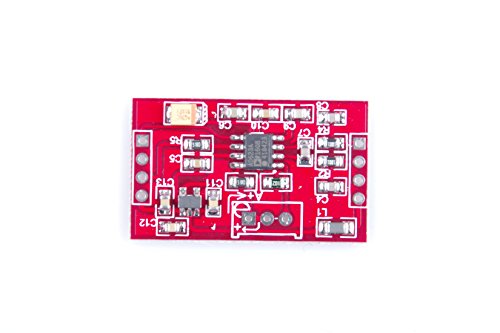

High precision DC voltage signal amplifier module for microvolt /millivolt signal amplification with 1.5-1000 gain range adjustment

Input Voltage: DC 3-12V, Signal Input Voltage: 100uV-300mV, Module Size: 32 X 22mm/1.26 X 0.87inch(L*W)

Support null point adjustment, negative voltage output and noise filtering capabilities ensure you can get the low distortion but high frequency signal ideal for small signal amplification

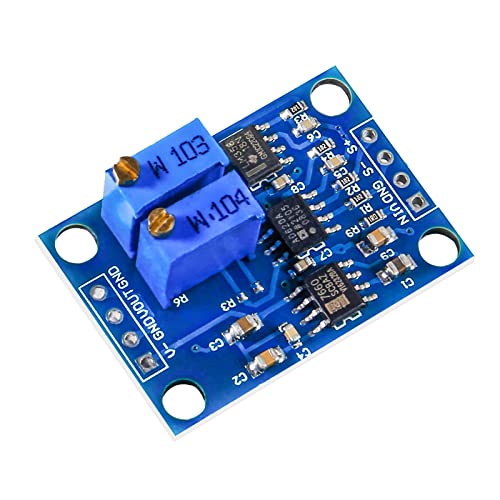

♥Introduction: The AD620 is a low-cost, high-accuracy instrumentation amplifier that requires only one external resistor to set the gain over a gain range of 1 to 10,000. Ideal for portable (or remote) applications. With high accuracy, low offset voltage, and low offset drift, the AD620 is ideal for precision data acquisition systems such as electronic scales and sensor interfaces. Also features low noise, low input bias current, and low power consumption. The module has a fixed voltage output.

♥Basic Features: ✭Module Name AD620 Instrument Programmable Amplifier ✭Module size:50mm * 50mm ✭Module power supply: 5V-24V ✭Module input signal type: single-ended signal or differential signal ✭Module signal input and output range: the input signal range is within 100 microvolts of the power supply, and the output signal range is within the power supply ✭Module bandwidth: AD620: 120KHz (G=100), AD623: 800KHz (G=1), AD620/623 is lower than 50KHz at high gain, and higher than 1MHz at low gain

♥ Other Features: ✭Module gain: When there is no solder slip, the AD620 will zoom by 10 times by default, and the AD623 will zoom by 20 times by default. During welding slip, AD620: G=1+50K/Rg, AD623: G=1+100K/Rg ✭Maximum magnification of the module: more than 2000 times (actual measurement), due to the large gain of the waveform frequency band, it is recommended to use multi-stage amplification with high gain ✭Fixed output voltage: 5V-10V (default delivery 5V)

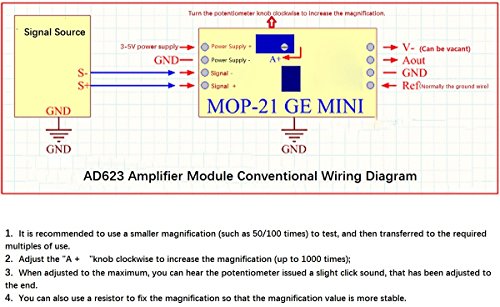

The AD623 is an integrated single supply instrumentation amplifier that delivers rail-to-rail output swing on a single supply (+3 V to +12 V supplies). The AD623 offers superior user flexibility by allowing single gain set resistor programming, and conforming to the 8-lead industry standard pinout configuration. With no external resistor, the AD623 is configured for unity gain (G = 1) and with an external resistor, the AD623 can be programmed for gains up to 1,000. <br>

The AD623 holds errors to a minimum by providing superior AC CMRR that increases with increasing gain. Line noise, as well as line harmonics, will be rejected since the CMRR remains constant up to 200Hz. The AD623 has a wide input common-mode range and can amplify signals that have a common-mode voltage 150mV below ground. The AD623 still provides superior performance when operated from a dual voltage supply (±2.5 V to ±6.0 V).<br>

Low power consumption (1.5mW at 3 V), wide supply voltage range, and rail-to-rail output swing make the AD623 ideal for battery powered applications. The rail-to-rail output stage maximizes the dynamic range when operating from low supply voltages. The AD623 replaces discrete instrumentation amplifier designs and offers superior linearity, temperature stability and reliability in a minimum of space. <br>

Name: AD8130 Differential Amplifier Size: 43mm X 38mm Supply voltage range: ±5V~±12V

The differential-to-single-ended amplifier, which has a 270-MHz bandwidth and a very high common-mode rejection ratio (CMRR) at high frequencies, can also be effectively used as a high-speed instrumentation amplifier or to convert a differential signal to a single-ended signal.

Differential amplifiers can process single-ended inputs as interactive differential outputs or treat differential inputs as differential outputs. These amplifiers have two independent feedback loops that control the differential and common-film output voltages, respectively.

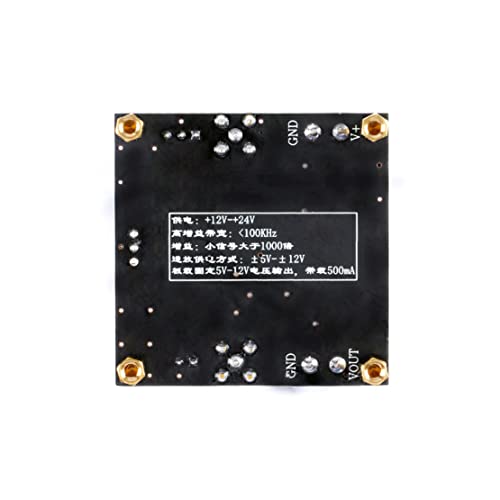

INA114 is a low-cost, high-precision instrumentation amplifier that only requires an external resistor to set the gain, and the gain range is 1 to 10000.

This module can magnify 3000 times

the weak signal detection effect is excellent, and can input single-ended signals or differential signals.

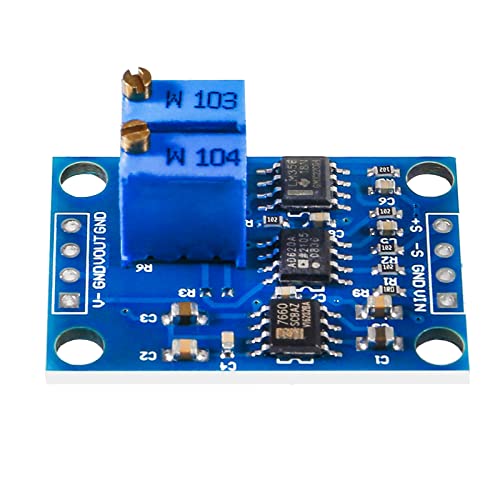

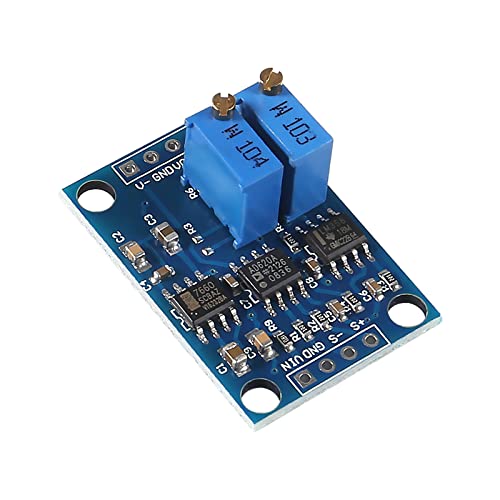

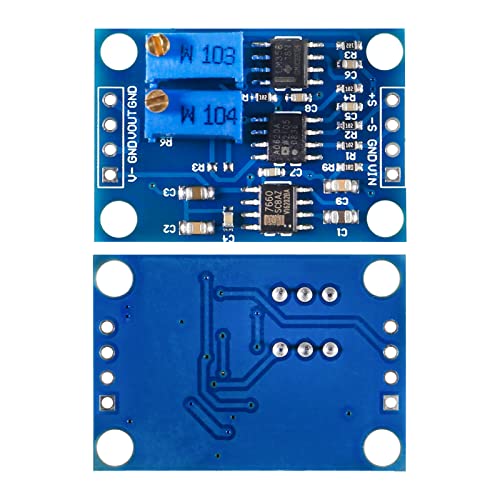

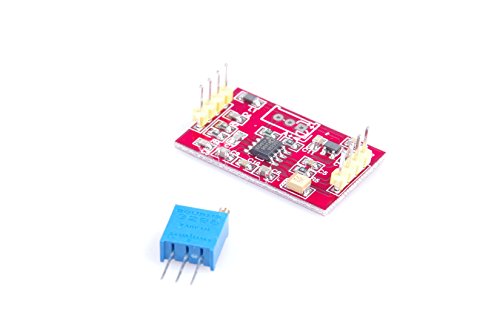

Using AD620 as the main amplifier, can amplify uV, mV voltage. Magnification 1.5-10000 magnification, adjustable. High precision, low offset, better linearity. Adjustable zero to improve accuracy. (The use of the module requires a certain electronic foundation. If there is no basic customer, please buy with caution)

Amplification the potentiometer is used to amplify the input signal, and the amplification is up to 1000 times, only need to pass a potentiometer to adjust.

Adjustable zero point adjust the zero point through the zero-adjusting potentiometer to improve the accuracy. The phenomenon of zero drift appears to meet customer needs.

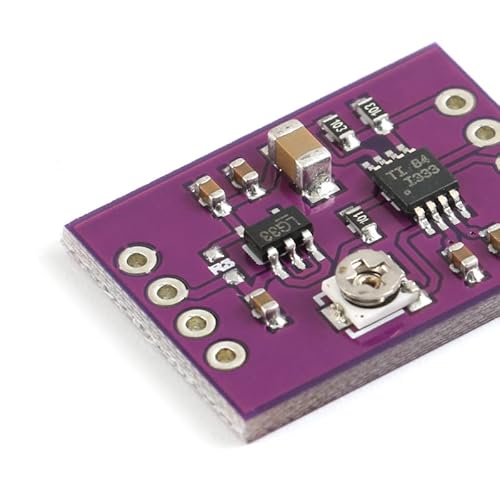

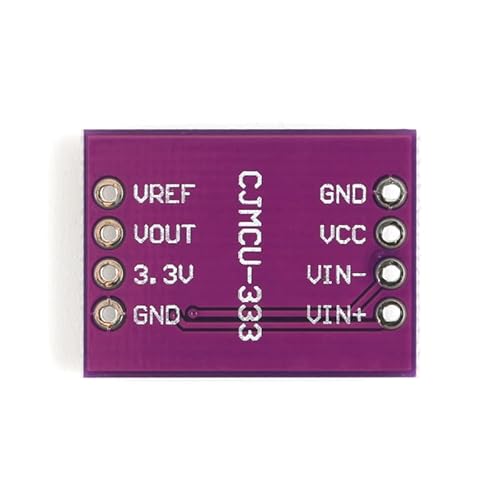

The INA333 device is a low-power precision instrumentation amplifier with excellent accuracy. The device adopts a universal three-operational amplifier design, and has a small size and low power consumption characteristics, which is very suitable for various portable applications.

The gain can be set in the range of 1 to 1000 through a single external resistor. INA333 is designed to use an industry standard gain formula: G = 1 (100k/RG).

INA333 device has ultra-low offset voltage (25 μV, G≥ 100), excellent offset voltage drift (0.1 μV/°C, G≥ 100), and high common mode rejection ratio (100dB, G≥ 10).

AD623 is better than AD620 in practical use. AD623 can use single power supply, belonging to rail-to-rail operational amplifier, but the power supply range of AD623 (± 6v@max) is much smaller than that of AD620(± 18v@max), so AD623 is more suitable for integration in low-power and low-voltage applications.

Secondly, the internal bias of AD623 is indeed much smaller than that of AD620. When we actually debugged the module, we found that AD623 basically did not need to adjust the bias. The ac signal is basically symmetric relative to the zero point, but the AD620 needs to adjust the special bias circuit to eliminate the dc component and achieve the effect of zero point symmetry.

Exquisite module, excellent magnification performance. The weak signal detection effect is good.
