Best Electronics Salon Io Modules in 2026

Prototyping complex robotics or industrial automation projects becomes a nightmare without the Electronics-Salon Screw Terminal Block Breakout Module. This board is a lifesaver for anyone tired of loose jumper wires slipping out of an Arduino MEGA-2560 R3 during a critical test run. Since it arrives fully soldered and assembled, you can skip the tedious soldering iron work and go straight to wiring. The 3.5mm pitch terminal blocks handle wire sizes from 26AWG up to 16AWG with ease, making it incredibly versatile for different gauges. I particularly like the inclusion of a power-on LED for instant troubleshooting and the red reset button conveniently located on the side. It is a robust, dual-layer FR-4 fiberglass solution that turns a delicate microcontroller into a rugged interface.

Wiring up a complex sensor array becomes a nightmare of loose jumper wires until you introduce a solid connection point like this OONO breakout board. Instead of wrestling with flimsy breadboards, you can secure wires ranging from 28AWG to 18AWG directly into the 2.54mm pitch terminal blocks. The module arrives fully soldered and ready to go, which is a massive time-saver for anyone prototyping with a Raspberry Pi 4 or Zero. I was particularly impressed by the build quality, featuring a dual-layer FR-4 fiberglass PCB and reliable cage copper. The package even includes a complete mounting kit with nylon standoffs and a small screwdriver, ensuring you can stack it securely onto your Pi without hunting for extra hardware.

You are halfway through a complex microcontroller project only to realize you have run out of available pins for your sensors and displays. This HiLetgo two-piece set solves that exact headache by utilizing the PCF8574 chip to expand your I/O resources via a simple I2C interface. Instead of struggling with pin constraints, you can leverage the 8-bit parallel capability to add much-needed connectivity to your setup. I found the versatility of the dual interface options particularly useful, as you can choose between pin or row seat access depending on your specific target board requirements. It is a practical, low-cost solution for developers who need to scale their hardware capabilities without redesigning their entire circuit architecture.

Most developers assume that running out of pins on a microcontroller is a hard limit, but this Songhe expansion pack proves that hardware limitations are actually just design hurdles. These modules use the I2C interface to turn a simple connection into a massive array of control points. What really stands out is the scalability. You can cascade up to eight of these modules together to jump from a handful of pins to a staggering 64 I/O ports. Whether you prefer using the header or the seat for target board access, the ability to dock these modules together via the I2C bus makes complex prototyping feel much less cluttered. It is a clever, efficient way to breathe new life into an MCU that is struggling for breathing room.

Organizing a cluttered control panel becomes significantly less stressful once you snap this Electronics-Salon distribution module onto your 35mm DIN rail. I was particularly impressed by the build quality, specifically the use of a high-quality Taiwan DINKLE fireproof nylon carrier rather than the cheaper alternatives often found in this price bracket. With 20 positions capable of handling up to 30A and 300V per position, it provides a robust foundation for complex wiring tasks. The brass pin headers and cage, paired with M3 steel screws, ensure a secure connection for wires ranging from 26AWG up to 10AWG. At just 163mm long, it offers a compact footprint without sacrificing the high-density capacity needed for professional electrical distribution projects.

Most developers assume that upgrading a Compute Module setup requires a complete hardware overhaul, but this tiny adapter proves that a simple pin conversion is often the smarter move. This Waveshare component acts as the critical bridge between the high-density 22-pin DSI interface on your Compute Module 4 IO Board and the more common 15-pin DSI displays used in many industrial and hobbyist projects. It integrates seamlessly with the Waveshare Compute Module IO Board Plus, making it an essential tool if you want to utilize their 4.3-inch or 5-inch DSI LCDs without hunting for specialized, expensive cables. It is a small, inexpensive piece of kit that solves a massive compatibility headache for anyone building custom embedded displays.

The cold, brushed texture of this metal enclosure immediately signals that it is built for more than just aesthetics. While many DIY projects end up looking like a mess of exposed wires, this Bicool chassis transforms your Raspberry Pi Compute Module 4 into a professional-grade mini PC. The precision of the cut-outs is genuinely impressive, with every port from the HDMI to the CSI camera port aligning perfectly with the labeled openings. I particularly appreciated the integrated cooling fan paired with the strategic airflow vents, which keeps the module stable even during heavy industrial tasks. Whether you are setting up a binocular vision system or an industrial PoE-powered node, the included wall mount holes make installation seamless and secure.

Most DIY enthusiasts settle for exposed boards and messy wiring, but this Waveshare metal box transforms a loose Raspberry Pi Compute Module 4 IO Board into a professional-grade mini PC. It is specifically engineered for the official IO board, ensuring every single cut-out aligns perfectly with your connectors for a seamless setup. The robust metal construction provides a dust-proof environment that feels much more permanent than a standard plastic case. I was particularly impressed by the thermal management. The included cooling fan works in tandem with integrated airflow vents to keep temperatures stable during intensive tasks. Whether you are building a binocular vision system or a PoE-powered industrial controller, this chassis provides the stability and sleek aesthetic required for serious projects.

Your microcontroller is running out of pins just as you're about to add that final sensor or display to your complex robotics project. This Comimark three-pack provides an immediate lifeline for any developer facing I/O resource shortages. By utilizing the I2C interface, these modules allow you to expand your capabilities significantly. You can scale up to 64 I/O ports by using eight of these PCF8574 expanders simultaneously. It is a practical, low-cost solution for Arduino and Raspberry Pi enthusiasts who need to manage more 8-bit parallel outputs without redesigning their entire circuit. Having three units in a single package means you can tackle multiple expansion points across a single build or keep spares on hand for future iterations.

The credit card-sized footprint of this Waveshare base board is genuinely deceptive given the sheer density of ports packed onto its surface. While it looks like a simple expansion tool, it acts as a complete ecosystem for the Raspberry Pi Compute Module 4, whether you are running the Lite or EMMC versions. I was particularly impressed by how it manages to squeeze in a Gigabit Ethernet port, HDMI, and USB connectivity without feeling cluttered. The color-coded 40-pin GPIO header is a lifesaver for quick prototyping, preventing those dreaded wiring mistakes. It even includes dedicated CSI, DSI, and fan connectors, making it a robust choice for developers who need to move from evaluation to a finished end product without sacrificing essential connectivity.

Your Arduino R3 project just hit a wall because you ran out of available pins to trigger that complex array of relays and LEDs. The ACEIRMC PCF8575 expansion module solves this bottleneck instantly by converting a simple I2C connection into 16 individually addressable I/O ports. I found the flexibility of this board particularly impressive, as you can configure every single pin for either input or output depending on your circuit's needs. The inclusion of an open-drain interrupt pin is a professional touch, allowing your microcontroller to react immediately to input changes without constant polling. Whether you are driving a buzzer or managing a button matrix, this module handles the heavy lifting within a versatile 2.5 to 5.5VDC range, making it a reliable staple for any serious electronics workbench.

Why settle for a cluttered workbench when you can house your Compute Module 4 in a professional-grade enclosure? The Bicool Mini-Computer kit is a streamlined solution for makers who need a reliable IO base board without the headache of custom fabrication. By integrating the Waveshare CM4-IO-BASE-B board into a dedicated metal case, Bicool provides a ready-to-go platform that feels much more permanent than a loose breadboard setup. I was particularly impressed by the precise cut-outs. Every connector, from the HDMI to the Gigabit Ethernet, aligns perfectly with the labeled ports. The inclusion of a cooling fan and integrated airflow vents ensures your industrial or vision projects stay thermally stable, while the built-in wall mount holes make deployment in tight spaces surprisingly easy.

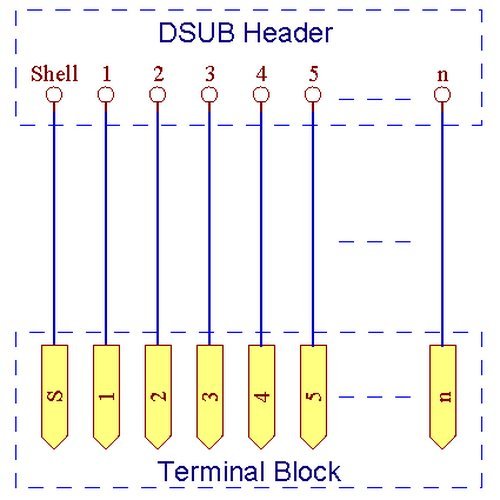

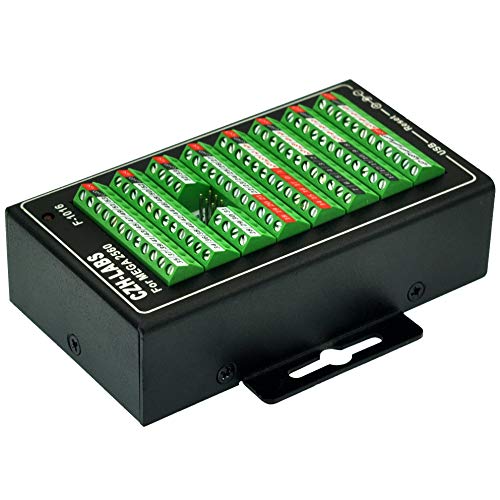

After weeks of use in a high-density prototyping environment, the reliability of this CZH-LABS breakout board has become a cornerstone of my workbench setup. The right-angle design is a massive space-saver, allowing for much cleaner cable management than standard straight headers. I was particularly impressed that each unit arrives pre-assembled and has already passed electrical testing, which saves a significant amount of troubleshooting time during a build. The 3.81mm pitch screw terminals provide a secure, tactile connection for wiring, and the FR-4 fiberglass PCB feels robust enough for continuous operation. While it is rated for 500mA per pin, it handles my low-power signal routing tasks with total stability across its operating temperature range.

Wiring up a complex robotics project usually involves a messy tangle of jumper wires that inevitably shake loose at the worst possible moment. This HCDC breakout shield solves that headache by replacing flimsy connections with secure 3.5mm screw terminals that handle wire sizes from 26AWG up to 16AWG. Since it arrives fully soldered and assembled, you can plug it directly onto your Arduino MEGA-2560 R3 and get straight to coding. I particularly like the inclusion of a red reset button on the side and a power-on LED, which makes troubleshooting much faster during long prototyping sessions. The dual-layer FR-4 fiberglass PCB provides a sturdy foundation, and the built-in ICSP adapter header ensures you aren't sacrificing essential connectivity for the sake of organization.

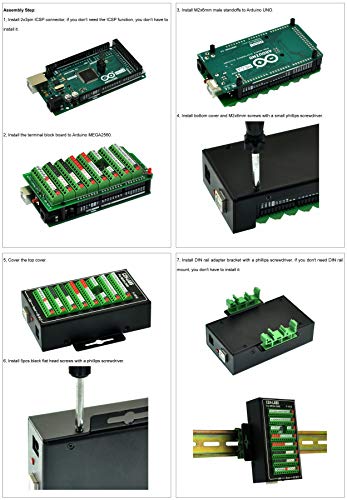

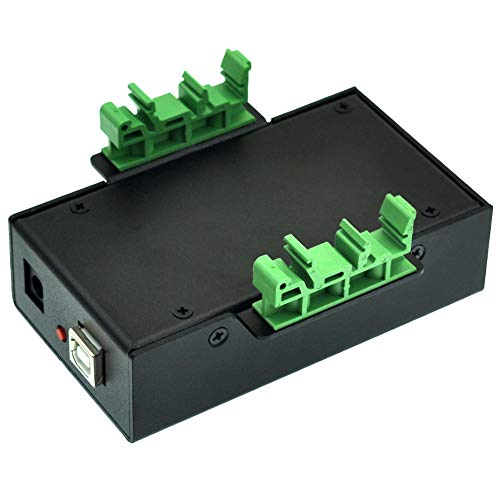

The OONO MEGA2560 Screw Terminal Block Breakout Module turns a standard microcontroller into a rugged industrial-grade controller. While most Arduino projects live on messy breadboards, this kit uses a high-quality 1.5mm thick aluminum enclosure to protect your connections. The 3.5mm pitch terminal blocks handle wire sizes from 26AWG to 16AWG, making it easy to transition from prototyping to permanent wiring. I particularly like the versatility of the mounting options. Whether you need a desktop setup or a DIN rail mount for a control cabinet, the included brackets make it seamless. With a built-in power LED, a dedicated reset button, and an ICSP adapter header, it provides a professional, stable foundation for any serious automation project.

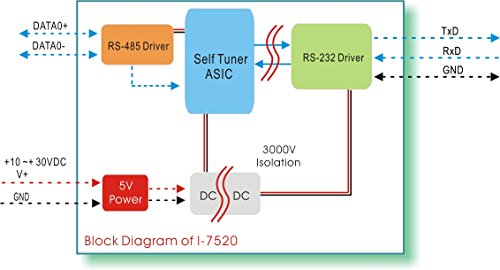

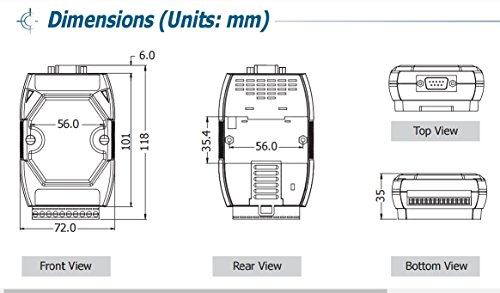

Most technicians settle for flimsy, unshielded adapters that fail the moment industrial noise creeps in, but the ICP-I-7520 offers the rugged isolation required for serious deployments. During testing, the 3000 VDC isolation on the RS-232 side proved essential for protecting sensitive hardware from voltage spikes. It handles data transmission smoothly with a self-tuner ASIC that manages baud rates up to 115200 bps without manual intervention. I was particularly impressed by its scalability. You can link up to 256 modules directly, or push that to 2048 with a repeater. Whether you are working in a freezing warehouse or a scorching control room, the wide operating temperature range and easy DIN rail mounting make this a reliable, set-and-forget solution for complex serial networks.

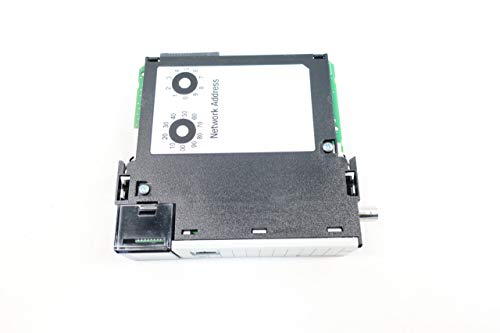

An industrial automation engineer staring at a fragmented network realizes the critical need for reliable data flow between controllers. The Allen-Bradley 1756-CNB/A serves as a dedicated solution for these high-stakes communication environments. Belonging to the robust E Series, this device is designed specifically to handle the heavy lifting required in complex BISS configurations. It isn't a flashy piece of hardware, but in the world of industrial networking, its reliability is what keeps a production line moving without interruption. Finding a specialized communication module that fits seamlessly into an existing Allen-Bradley ecosystem makes troubleshooting much simpler. At its current price point, it offers a practical way to maintain or expand your system's connectivity without breaking the budget.

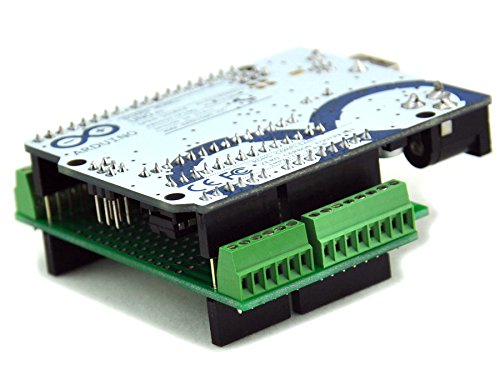

Messy breadboard connections and loose jumper wires often turn a clean prototype into a frustrating headache of intermittent signals. The CZH-LABS Screw Shield Kit solves this by replacing flimsy headers with secure, high-reliability terminal blocks designed specifically for the Arduino UNO R3. Built on a durable FR-4 fiberglass PCB with dual copper layers, this board provides a rock-solid foundation for your electronics projects. I found the variety of mini terminal blocks—including 10-pin, 8-pin, and 6-pin configurations—to be incredibly versatile for different wiring needs. The M1.6 steel screws and brass cage pins ensure that wires ranging from 26 to 18AWG stay clamped tight, making it a professional-grade tool for anyone moving from temporary testing to a more permanent salon prototype setup.

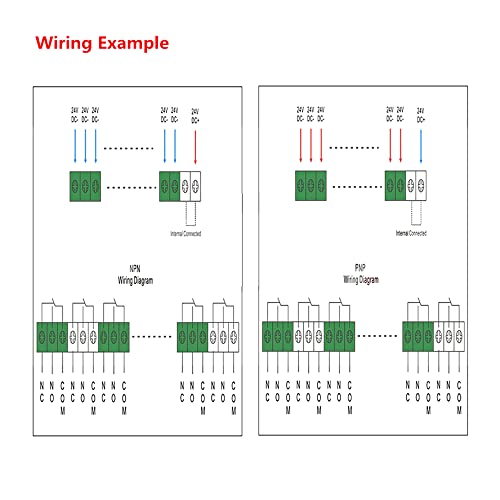

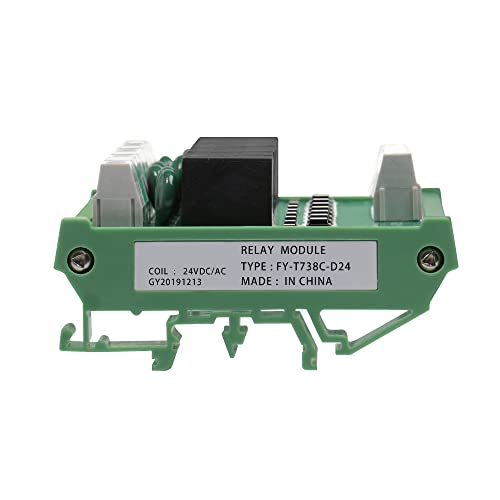

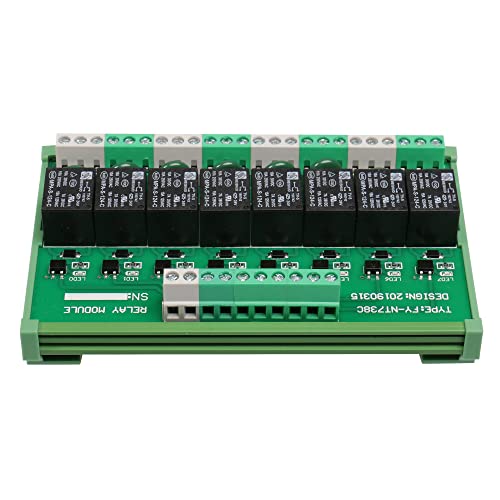

Can a single interface module truly bridge the gap between complex PLC logic and heavy-duty electrical loads? The Good BNTai 8-channel relay module provides a robust answer for automation enthusiasts and industrial installers alike. Testing this unit reveals a highly versatile design that handles both NPN and PNP signals, making it compatible with a wide range of AC and DC control systems. I found the screw terminal blocks exceptionally reliable for secure input connections, and the integrated LED indicators take the guesswork out of troubleshooting relay states. With built-in surge suppression and overvoltage protection on every channel, it offers a layer of hardware security that is essential for protecting your more expensive automation equipment. It snaps effortlessly onto standard TS15/28/35 DIN rails, making it a seamless addition to any control panel.

After weeks of use in a busy college laboratory setting, the Kanonaki NI USB-6009 has proven to be an incredibly reliable workhorse for basic data acquisition. This module strikes a rare balance between affordability and genuine capability, offering eight channels of 14-bit analog input and 12 digital I/O lines that handle complex measurement tasks without breaking the bank. I was particularly impressed by the bus power supply, which provides the high mobility needed for portable measurements away from a fixed workstation. Whether you are running simple data recordings or more intricate experiments via LabVIEW, the built-in signal connections make setup seamless. It is a powerful, compact solution for anyone needing dependable DAQ functionality on the move.

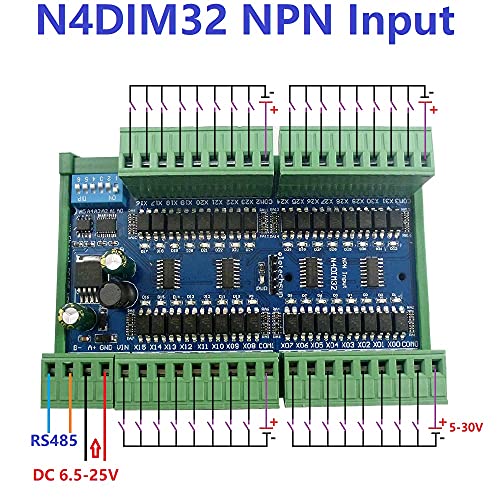

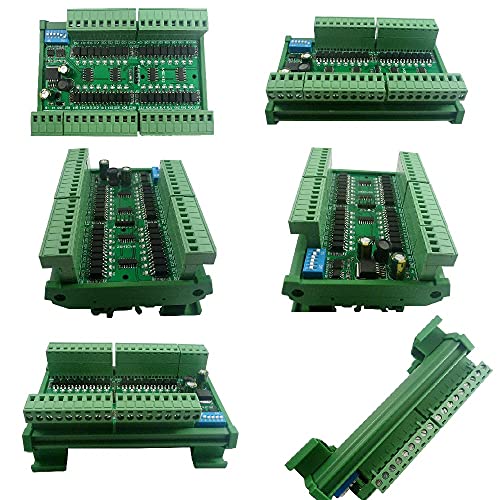

The eletechsup 32-Channel Optically Isolated Input Module is a robust industrial solution for complex signal management, and it delivers impressive reliability for high-density NPN switching tasks. After testing its integration capabilities, the standout feature is the combination of optical isolation with Modbus RTU protocol, which provides a much-needed layer of protection for your sensitive controllers. The unit operates efficiently within a 6.5-25V range and handles input voltages from 5-30V, making it versatile for various DC power environments. Encased in a practical shell that keeps the footprint manageable at 122x88x47mm, it feels substantial without being cumbersome. For anyone managing large-scale digital collector setups, this module offers a streamlined way to bridge multiple inputs into a single RS485 communication line.

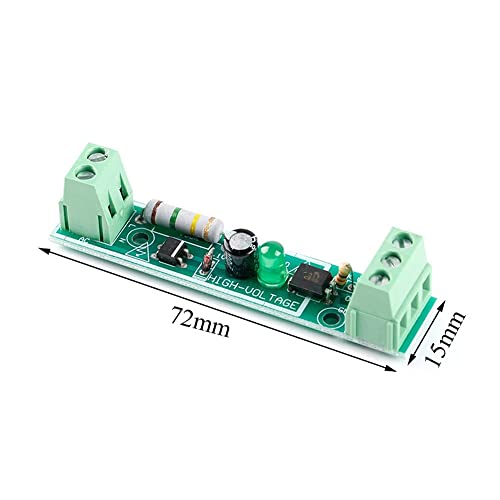

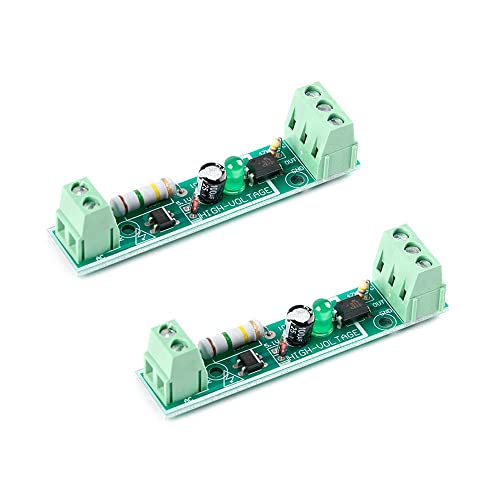

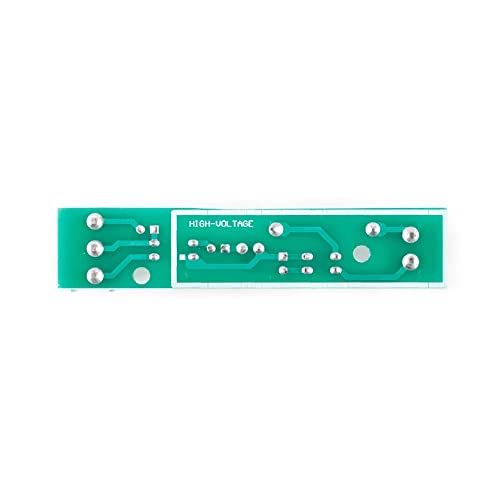

The compact 73mm by 15mm footprint of these Rakstore modules makes them incredibly easy to tuck into crowded PLC cabinets or microcontroller breadboards. I found the isolation capabilities to be the real standout here, providing a safe bridge between high-voltage AC 220V detection and your sensitive low-voltage logic. Whether you are running a 3-5V TTL level for a single-chip microcomputer or hooking into a 24V PLC system, the signal translation is seamless. Wiring is straightforward using the dedicated 2P and 3P terminals, allowing you to detect live voltage without risking your control circuitry. For anyone building automation projects that require reliable voltage sensing, this two-piece set offers a robust, professional-grade solution for bridging the gap between mains power and digital logic.

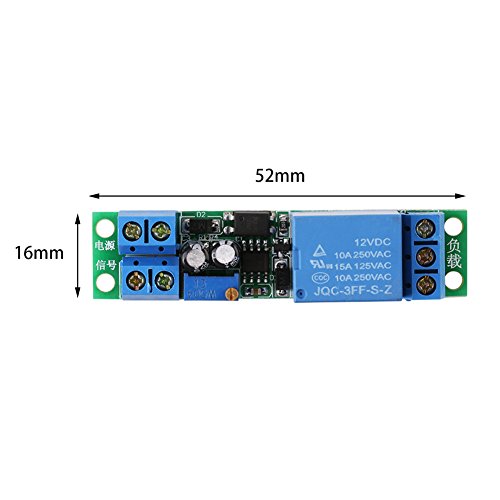

Most hobbyists assume a cheap relay module will fail under repeated stress, but the Walfront 12V delay timer proves to be a surprisingly robust workhorse for automation projects. I found the versatility here to be its strongest asset, especially since it handles both high and low-level trigger signals without breaking a sweat. The built-in opto-coupler isolator adds a much-needed layer of protection for your more sensitive components, and the anti-reverse diode on the power terminal means you won't fry the board with a simple wiring mistake. While the default 0-25 second window is perfect for most car lamp delays or robotics, the fact that you can extend the timing by swapping the capacitor or potentiometer makes it a truly scalable tool for any electronics workbench.

The Hubbell TD1000 Digital Display Module stands as the gold standard for food service professionals needing a precise, dependable interface for their heating equipment. Relying on a brand that has been perfecting heating technology since 1921 gives you a level of confidence that generic alternatives simply cannot match. This is a genuine OEM replacement part, which is vital because it ensures your water heaters or holding tanks maintain their original safety standards and peak performance. Instead of risking equipment downtime with off-brand components, using this authentic module guarantees the reliability your commercial kitchen demands. It is a straightforward, high-quality solution for anyone maintaining Hubbell’s specialized line of booster heaters and heating elements.
