Best Gw Instek Lab Oscilloscopes in 2026

Field technicians and automotive hobbyists demanding high-precision diagnostics without the bulk of a benchtop unit will find the Abestop HDS272 to be an absolute game-changer. This compact powerhouse merges a 70MHz bandwidth oscilloscope with a high-accuracy 20,000 count multimeter, effectively replacing two separate tools in your kit. During testing, the 3.5-inch color LCD proved exceptionally crisp, remaining perfectly readable even in bright outdoor environments. Whether you are hunting for intermittent voltage drops in an engine's ignition coil or prototyping delicate low-voltage circuits, the 250MS/s sample rate and rapid 10,000 waveforms per second refresh rate ensure you never miss a transient signal. It is lightweight, intuitive, and built specifically for the rigors of mobile troubleshooting.

Most technicians assume a portable kit requires sacrificing precision, but the HANMATEK HO102 proves you can pack 100MHz bandwidth into a handheld form factor without losing the essentials. I found the dual-mode versatility particularly impressive. You can jump from analyzing high-speed waveforms with a 250MSa/s sampling rate to performing standard multimeter tasks like continuity and capacitance testing in an instant. The 3.5" TFT screen is bright enough for field work, and the ability to save waveforms as CSV files via the USB-C port makes documentation a breeze. Having a device that handles both high-voltage AC/DC testing and complex signal debugging in one kit is a massive efficiency win for anyone working on the move.

Most engineers assume they need two separate, bulky workstations to handle both signal analysis and waveform generation, but the YEAPOOK ADS1014D proves that consolidation can actually enhance your workflow. This dual-purpose unit packs a 100MHz bandwidth and a massive 1GSa/s sampling rate into a single footprint, making it a powerhouse for bench testing. I found the built-in DDS function generator particularly impressive because it doesn't just provide 14 standard signals. It allows you to intercept and store up to 1000 customized waveforms directly from the oscilloscope. Whether you are utilizing the FFT function to hunt down harmonics or using the Lissajous display to compare phase and frequency, the interface feels intuitive. It is a clever, space-saving solution for anyone needing real-time sampling and high-speed signal capture without the clutter.

The crisp, immediate response of the integrated 25MHz waveform generator sets this unit apart from typical budget-tier bench tools. While many economy oscilloscopes force you to buy separate signal sources, the Hantek DSO2D10 packs a built-in arbitrary waveform generator right into the chassis. You get a solid 100MHz bandwidth and a 1GSa/s sample rate that handles embedded systems and communication testing with surprising agility. The 8M memory depth ensures you aren't losing signal detail during long captures, and the inclusion of five serial protocol decodes makes debugging much faster. It feels like a highly versatile Swiss Army knife for students and researchers who need reliable measurements and SCPI remote control without a massive laboratory price tag.

Debugging a complex multi-rail power supply requires seeing every signal interaction simultaneously without losing detail in the noise. The GW Instek GDS-1054B handles this heavy lifting with its four-channel input and a robust 1 GSa/s maximum sampling rate. I was particularly impressed by the 7-inch WXGA LCD. The 256-color gradient display makes distinguishing between overlapping waveforms much easier on the eyes during long lab sessions. With a massive 10M memory depth per channel and 1Mpts FFT capability, you aren't just looking at raw waves, but gaining deep insights into frequency domain signals. The dedicated Zero Key function is a lifesaver for quickly resetting horizontal time, vertical voltage, or triggering settings when you need to pivot your measurements instantly.

Most hobbyists settle for basic, single-channel tools that leave them guessing, but the Leolov digital oscilloscope brings professional-grade dual-channel visibility to your workbench. I was particularly impressed by how the ARM and FPGA chip architecture handles high-speed signal acquisition, making the 500MSa/s sampling rate feel incredibly responsive during MCU debugging. The built-in signal generator is a massive time-saver, offering precise sine, square, and triangle waves right at your fingertips. Whether you are troubleshooting an inverter or working on a car repair, the one-key AUTO function takes the headache out of manual parameter adjustment. It even includes FFT spectrum analysis and fourteen different measurement options, turning a portable handheld device into a comprehensive diagnostic powerhouse for any DIY electronics enthusiast.

Engineering students and field technicians need the GW Instek GDS-1102A-U because it strikes that rare, perfect balance between portable convenience and high-performance waveform acquisition. I found the 1GS/s real-time sample rate and 2 Mpts record length per channel to be essential for capturing those tiny, fleeting details in complex signals without losing clarity. The 5.7" color TFT-LCD is a standout, allowing you to monitor two live and two stored waveforms side-by-side, which makes comparative analysis incredibly intuitive. Whether you are troubleshooting a repair or working on an assembly line, the auto-set function saves significant time by instantly optimizing your display settings. With built-in math functions like FFT and a wide array of measurement parameters, this unit is a legitimate powerhouse for any electronics workbench.

Debugging a complex embedded circuit board suddenly becomes much less frustrating when you have a built-in signal generator at your fingertips. I put the Hantek DSO2D15 through its paces, and the 150MHz bandwidth paired with a 1GS/s sampling rate provides a remarkably crisp look at high-speed signals. The 7-inch color display is bright and easy to read, making those 32 different auto-measurements and real-time statistics feel intuitive rather than overwhelming. I particularly appreciated the independent control knobs for the two channels, which allows for much faster adjustments during live testing. Whether you are decoding SPI or CAN protocols or just need to capture a burst waveform, this unit punches well above its weight class for a benchtop tool in this price bracket.

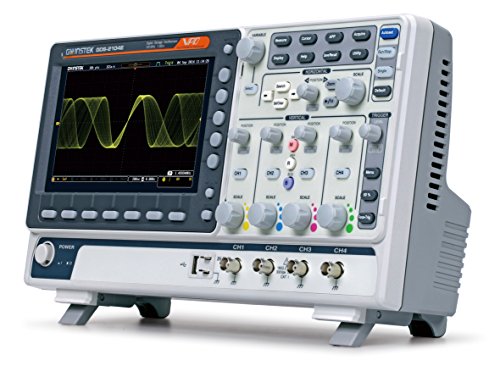

Engineering labs demanding high-fidelity signal analysis without breaking the bank need the GW Instek GDS-2204E in their toolkit immediately. This four-channel powerhouse delivers a 1 GSa/s real-time sampling rate and a substantial 10M memory depth, ensuring you don't lose critical data during complex captures. The VPO waveform display technology makes everything easy to read on the 8-inch WVGA TFT LCD, while the FFT capability reaches up to 1M points for incredibly precise frequency domain resolution. I was particularly impressed by the deep segmented memory, offering 29,000 sections to isolate specific signal events. Whether you are debugging I2C, SPI, or CAN bus protocols or utilizing the 100-hour data logging for long-term monitoring, this unit handles heavy-duty diagnostic workloads with professional ease.

Most engineers eventually hit a wall where a standard oscilloscope fails to capture the full picture of complex signal interference. The Instek MDO-2204EG breaks through that ceiling by integrating a spectrum analyzer and a dual-channel 25 MHz arbitrary waveform generator directly into a 200 MHz, 4-channel digital storage oscilloscope. During testing, the real-time sample rate and the impressive waveform update rate of up to 120,000 wfms/s provided a level of clarity that makes debugging transient glitches much less frustrating. It also streamlines your workflow with built-in mask test functions and easy network storage, turning a single piece of bench equipment into a versatile diagnostic powerhouse that handles both time-domain and frequency-domain analysis simultaneously.

The GW Instek GDS-1202B delivers a massive 1GSa/s sampling rate that punches far above its weight class in this price bracket. I was particularly impressed by how the 10M memory depth per channel allows for much more detailed waveform analysis than you typically find in entry-level bench tools. The 7-inch WVGA LCD display is crisp and clear, making it easy to monitor your two channels without squinting at tiny data points. Whether you are troubleshooting complex circuits or just setting up a home lab, the combination of 200MHz bandwidth and high-speed sampling makes this a reliable workhorse for serious signal analysis.

You might wonder if a mid-range bench tool can actually handle high-speed signal analysis without breaking the bank, but the GW Instek GDS-1202B proves it can. After putting this two-channel unit through its paces, the 200 MHz bandwidth feels incredibly responsive for standard engineering tasks. The standout feature for me is the 256 color gradient display. It makes distinguishing subtle waveform variations much easier on the eyes than traditional monochrome setups. With a massive 10M memory depth per channel and a 1GSa/s sampling rate, you aren't just seeing a snapshot, you're capturing high-fidelity data that stays sharp even when zooming in. It strikes a professional balance between raw speed and visual clarity that makes debugging much less frustrating.

The GW Instek LCR-915 Handheld LCR Meter delivers professional-grade precision through its highly versatile selectable test frequencies. Testing components becomes remarkably efficient thanks to the auto LCR mode, which handles the heavy lifting of measuring your device under test. I found the dual display particularly helpful for monitoring the 20,000/2,000 counts simultaneously without jumping through hoops. Whether you are performing quality control with the dedicated sorting mode or switching between parallel and series testing, the workflow feels intuitive. It also includes essential utility features like data hold and a zero mode to ensure your readings remain accurate and reliable in the field. For a portable unit, it packs enough technical depth to satisfy serious bench work requirements.
