Best Color Lab Oscilloscopes in 2026

After weeks of use in various testing environments, the BSHAPPLUS 2-in-1 handheld oscilloscope multimeter has proven to be a versatile powerhouse for anyone needing more than just standard voltage readings. The standout feature is the seamless transition between multimeter functions and waveform capture, powered by a 2.5Msps high-speed sampling rate that makes detecting signal irregularities much easier. I found the 240x320 color LED backlit screen incredibly helpful during late-night troubleshooting sessions, providing clear visibility when precision is critical. With its robust detection range covering up to 1000V DC and 750V AC, plus built-in dual protection tubes, it feels reliable for both school labs and factory floors. It effectively bridges the gap between a basic tester and a professional diagnostic tool.

The MakerHawk Handheld Digital Oscilloscope delivers impressive real-time precision through its 2.5Ms/s sampling rate, making it a surprisingly capable tool for its size. I found the one-key AUTO function to be a total lifesaver, as it instantly displays waveforms without forcing you to fiddle with tedious manual adjustments. Whether you are troubleshooting automotive electrical systems or working on R&D education projects, the 200KHz bandwidth and 80KHz PWM capabilities handle both periodic analog and aperiodic digital signals with ease. The 2.4-inch high-definition screen is crisp and easy to read, while the ability to measure voltages up to ±400V provides a solid safety margin. Plus, since it supports Type-C charging while in use, you won't be left stranded mid-test when the 1250mAh battery runs low.

Most engineers assume they need two separate, bulky workstations to handle both signal analysis and waveform generation, but the YEAPOOK ADS1014D proves that consolidation can actually enhance your workflow. This dual-purpose unit packs a 100MHz bandwidth and a massive 1GSa/s sampling rate into a single footprint, making it a powerhouse for bench testing. I found the built-in DDS function generator particularly impressive because it doesn't just provide 14 standard signals. It allows you to intercept and store up to 1000 customized waveforms directly from the oscilloscope. Whether you are utilizing the FFT function to hunt down harmonics or using the Lissajous display to compare phase and frequency, the interface feels intuitive. It is a clever, space-saving solution for anyone needing real-time sampling and high-speed signal capture without the clutter.

The Aiteme ADS1014D is a versatile powerhouse for R&D professionals that manages to pack a 100MHz oscilloscope and a 12-function DDS signal generator into one portable unit. I was particularly impressed by the 7-inch color LCD. The 800x480 resolution provides a crisp, high-contrast view that remains legible even when you're adjusting the background grid brightness for specific lighting conditions. The one-button automatic adjustment takes the headache out of waveform setup, while the built-in 1GB storage is a lifesaver for capturing up to 1000 waveform groups for later analysis on your computer. Most importantly, the integrated high-voltage protection module offers peace of mind by withstanding up to 400V, making it a robust choice for maintenance work where accidental surges are a real concern.

Tracing a phantom signal in a crowded circuit board becomes significantly less frustrating when you have a 100MHz bandwidth and a 1GSa/s sampling rate at your fingertips. I spent an afternoon testing the FNIRSI 1014D, and the standout feature is definitely the integrated DDS function signal generator. The unique chopping output allows you to intercept complex waveforms and store up to 1000 customized signals, which is a massive time-saver for repetitive testing. The 7-inch high-definition screen makes observing Lissajous graphics and FFT harmonic content incredibly clear, while the one-button AUTO function takes the headache out of manual trigger adjustments. Whether you are analyzing periodic analog signals or aperiodic digital ones, this dual-channel unit provides a professional level of precision without a massive footprint.

After weeks of use in my electronics workbench, the DSO 138 has proven to be an incredibly versatile companion for quick signal testing. This handheld unit is powered by an ARM Cortex-M3 processor and features a vibrant 2.4-inch color TFT display that makes reading waveform parameters like frequency and duty ratio effortless. Because this version comes pre-assembled, you can jump straight into testing without the hassle of soldering. I found the trigger modes—including rising and falling edge options—to be remarkably responsive for capturing transient signals, and the ability to view previous waveforms via negative delay is a standout technical advantage. It even includes a built-in square wave test signal source, making it a complete little toolkit for any student or developer looking to explore ARM test development.

The Thsinde 2-in-1 Oscilloscope Multimeter redefines field diagnostics by merging traditional electrical testing with high-speed waveform analysis in a single handheld unit. I found the one-button oscilloscope mode particularly impressive because it allows for direct waveform measurement without needing a separate probe, which significantly speeds up troubleshooting. The 240x320 color display is bright and intuitive, utilizing a secondary bottom menu that lets you compare historical data against real-time readings simultaneously. Safety is clearly a priority here, evidenced by the double insurance tube protection and the audible beep warnings for over-range or high-voltage inputs. Whether you are checking AC/DC voltage or analyzing duty cycles, the sensitive silicone buttons and the 60-degree tilted back bracket make this a highly ergonomic tool for long diagnostic sessions.

Most hobbyists settle for a cluttered workbench full of separate, bulky tools when the FNIRSI DSO-TC2 offers a streamlined, all-in-one alternative. I found the integration of a digital oscilloscope with a dedicated transistor tester to be a genuine game-changer for rapid prototyping. The device handles everything from identifying NPN or PNP transistors to testing capacitance and inductance with impressive ease. Its 200kHz bandwidth and 2.5MS/s sampling rate provide reliable real-time data, while the one-key AUTO function saves you from the headache of manual waveform adjustments. Whether you are using the PWM signal generator or the diode voltage continuity tester, the large color TFT display makes reading results intuitive. It is a remarkably portable powerhouse that packs professional-grade diagnostic capabilities into a single handheld unit.

You are hunched over a car engine bay in a dimly lit garage, trying to track down a flickering sensor signal that a standard meter just can't catch. This allsun handheld unit becomes your best friend in that moment by combining a 25MHz dual-channel oscilloscope with a high-precision 6000-count True RMS multimeter into one rugged ABS chassis. The color screen makes reading waveforms incredibly intuitive, and the 100MSa/s sampling rate ensures you aren't missing those critical real-time electrical spikes. I particularly like how you can bridge the gap between field testing and deep analysis by plugging the USB interface into a PC to archive and print your data. It is a versatile, portable powerhouse for anyone moving between automotive diagnostics and lab work.

Debugging a complex multi-rail power supply requires seeing every signal interaction simultaneously without losing detail in the noise. The GW Instek GDS-1054B handles this heavy lifting with its four-channel input and a robust 1 GSa/s maximum sampling rate. I was particularly impressed by the 7-inch WXGA LCD. The 256-color gradient display makes distinguishing between overlapping waveforms much easier on the eyes during long lab sessions. With a massive 10M memory depth per channel and 1Mpts FFT capability, you aren't just looking at raw waves, but gaining deep insights into frequency domain signals. The dedicated Zero Key function is a lifesaver for quickly resetting horizontal time, vertical voltage, or triggering settings when you need to pivot your measurements instantly.

Most hobbyists settle for basic, single-channel tools that leave them guessing, but the Leolov digital oscilloscope brings professional-grade dual-channel visibility to your workbench. I was particularly impressed by how the ARM and FPGA chip architecture handles high-speed signal acquisition, making the 500MSa/s sampling rate feel incredibly responsive during MCU debugging. The built-in signal generator is a massive time-saver, offering precise sine, square, and triangle waves right at your fingertips. Whether you are troubleshooting an inverter or working on a car repair, the one-key AUTO function takes the headache out of manual parameter adjustment. It even includes FFT spectrum analysis and fourteen different measurement options, turning a portable handheld device into a comprehensive diagnostic powerhouse for any DIY electronics enthusiast.

Traditional benchtop oscilloscopes are often too bulky and cumbersome for engineers who need to troubleshoot circuits on the move. The SainSmart Micsig STO1004 solves this portability crisis by merging high-end performance with a tablet-style form factor. I was particularly impressed by the 8-inch capacitive touch screen, which makes navigating waveforms feel as intuitive as using a smartphone thanks to the Android-based operating system. With a massive 70Mpts memory depth and hardware-based zoom, you can dive deep into signal details without losing clarity. It is a versatile workhorse that functions perfectly on a steady benchtop or in the field, especially with the built-in battery providing five hours of continuous runtime for mobile diagnostic sessions.

Field technicians and automotive hobbyists demanding high-precision diagnostics without the bulk of a benchtop unit will find the Abestop HDS272 to be an absolute game-changer. This compact powerhouse merges a 70MHz bandwidth oscilloscope with a high-accuracy 20,000 count multimeter, effectively replacing two separate tools in your kit. During testing, the 3.5-inch color LCD proved exceptionally crisp, remaining perfectly readable even in bright outdoor environments. Whether you are hunting for intermittent voltage drops in an engine's ignition coil or prototyping delicate low-voltage circuits, the 250MS/s sample rate and rapid 10,000 waveforms per second refresh rate ensure you never miss a transient signal. It is lightweight, intuitive, and built specifically for the rigors of mobile troubleshooting.

Most engineers assume that a sub- oscilloscope means sacrificing channel count, but the Rigol DS1054Z completely upends that expectation by delivering four full analog channels. While many entry-level units force you to choose between bandwidth and complexity, this setup provides a robust 50 MHz bandwidth alongside a massive 24 Mpts memory depth. I was particularly impressed by the 1 GSa/s sampling rate and the 30,000 wfms/s waveform capture rate, which make hunting for transient glitches much less frustrating. The 7-inch WVGA color display offers great clarity for analyzing signals, and the low noise floor ensures your vertical scale remains clean from 1 mV/div all the way up to 10 V/div. It is a surprisingly capable workhorse for a benchtop tool at this price point.

The vibrant 3.5-inch color screen immediately grabs your attention, making waveform transitions look incredibly sharp compared to traditional monochrome testers. This handheld powerhouse combines a 100MHz dual-channel oscilloscope, a digital multimeter, and a waveform generator into a single, palm-sized unit that feels natural in one hand. I was particularly impressed by the 10,000wfms/s refresh rate and the 8K storage depth, which allow you to catch those fleeting, abnormal electrical events that standard meters often miss. It handles everything from automotive diagnostics to lab work with ease, offering seven automatic measurement types and the ability to export CSV data to your computer. With a six-hour battery life via USB-C, it is a reliable companion for field technicians who need high-fidelity signal acquisition on the move.

Most hobbyists settle for basic multimeters that leave them guessing about signal integrity, but the Hantek DSO5102P brings professional-grade visualization to your workbench. I was particularly impressed by the 7-inch 64K color TFT LCD. The 800x480 resolution makes distinguishing between sine, square, and sawtooth waves incredibly easy on the eyes. It functions as much more than a simple scope, handling AC/DC voltage, resistance, and diode testing with ease. The data management is a standout feature too, allowing you to store over 1000 waveforms on a plug-and-play USB drive. Whether you are using the RS232C serial port for communication or performing remote control via USB, this unit provides the depth of data needed for serious electronic troubleshooting.

The SainSmart Mini DS213 is a powerhouse of portability that packs four channels into a device small enough to slide into your pocket. I was immediately impressed by the significant jump in performance over the previous DSO203 model. The upgrade to a 15MHz analog bandwidth and a 100MSa/s sample rate makes a noticeable difference when capturing fast-moving signals. The interface feels incredibly intuitive because it utilizes smartphone-style taps and swipes, removing the steep learning curve often found with benchtop gear. Watching sine, square, and sawtooth waveforms pop on the bright color display is a treat, and the built-in 8 MB flash storage makes it effortless to save and transfer your findings. It is essentially a professional-grade diagnostic tool that actually moves with you.

Can a hobbyist project actually serve as a legitimate piece of lab equipment? The JYETech DSO Shell kit attempts to answer that by letting you build your own digital storage oscilloscope from the ground up. This upgraded version moves beyond the basic DSO138 by integrating a crisp 2.4" color TFT LCD and a dedicated optical encoder for much smoother menu navigation. It arrives as a complete package with a plastic enclosure and clip probe, meaning you aren't hunting for extra components to get started. Since this is the latest revision 'E' PCB, you are getting the most refined hardware improvements available. It is a rewarding hands-on experience for anyone wanting to understand their electronics while gaining a functional tool for the workbench.

You might wonder if a device this compact can actually replace a dedicated benchtop setup, but the OWON HDS242 proves that portability doesn't have to sacrifice utility. I was impressed by how it packs a 40 MHz dual-channel oscilloscope and a high-precision 20,000-count multimeter into a chassis roughly the size of a smartphone. The 3.5-inch high-contrast color display remains perfectly legible even in bright outdoor conditions, which is a massive win for field technicians. Whether you are toggling between high-refresh acquisition modes or using the seven auto-measurement functions, the interface feels intuitive. Plus, the Type-C charging is a lifesaver. You can top it off with a power bank and get through a full day of testing without hunting for an outlet.

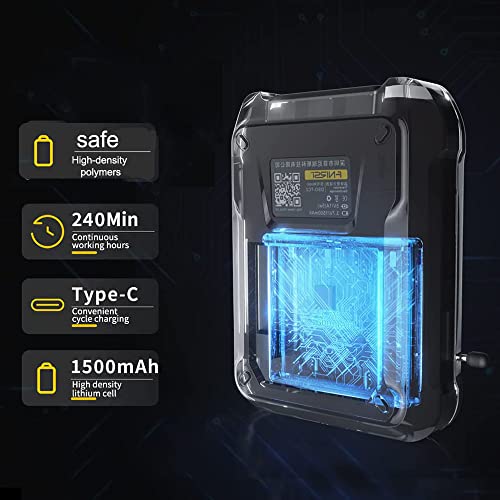

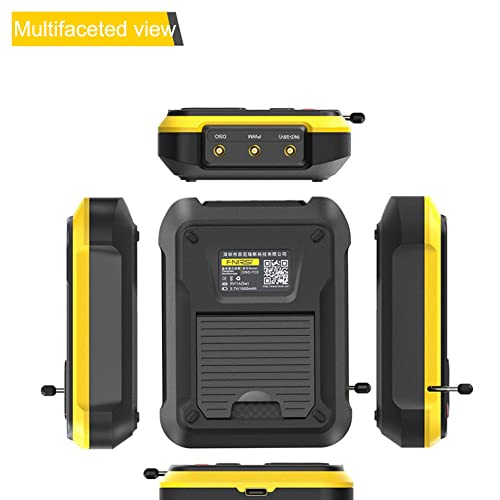

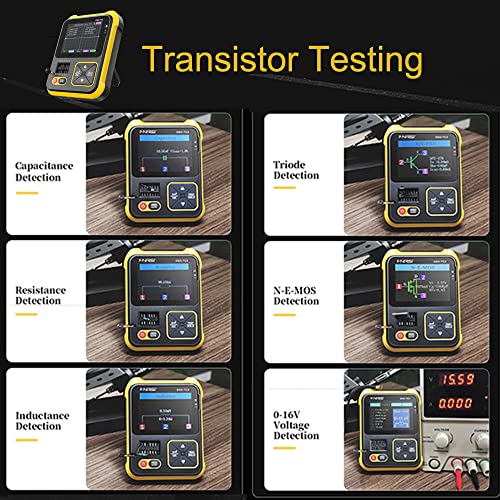

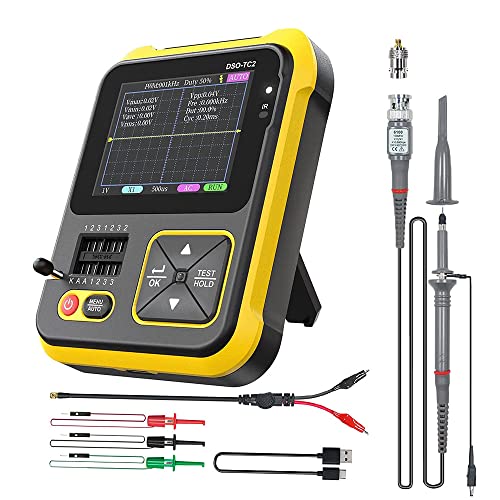

After weeks of use in my electronics workbench, the Gearwoo DSO-TC2 has proven to be a surprisingly versatile companion for DIY circuit troubleshooting. This compact tool manages to squeeze a digital oscilloscope, a PWM signal generator, and a comprehensive electronic component tester into a single handheld device. The 2.4-inch HD color display makes reading waveforms and measurements remarkably easy, which is a huge plus when you are hunting for tiny fluctuations. With a 200kHz bandwidth and dual channels, it handles real-time sampling effectively for hobbyist-level testing. I especially appreciate the inclusion of the high voltage probe and the built-in folding stand, making it a truly portable kit that is ready to go right out of the box.

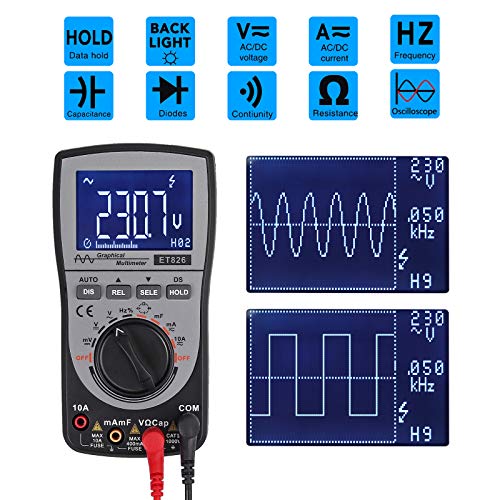

The Proster Oscilloscope Multimeter bridges the gap between standard electrical testing and visual waveform analysis, making it a standout tool for electronics engineering and factory automation. I was particularly impressed by the one-key transform feature, which lets you jump from measuring DC voltage to viewing an active oscilloscope waveform instantly. With a 200K high-speed A/D sampling rate and a 4000-count auto-ranging system, it handles everything from 1000V DC measurements to complex frequency testing with surprising speed. The backlit color screen is a massive plus, especially since it includes a 41-segment analog bar graph for those quick visual cues. Whether you are troubleshooting power distribution or fine-tuning a circuit, having the ability to monitor 10 different waveforms and 100 sets of data in one handheld device is a serious productivity booster.

The Seeed Studio DSO Nano V3 is an essential pocket-sized companion for hobbyists and field engineers who need instant waveform visibility without lugging around a benchtop unit. This tiny powerhouse delivers a 200 kHz bandwidth and a 1 MS/s sampling rate, making it surprisingly capable for debugging low-frequency circuits on the fly. I was particularly impressed by the 2.8-inch color TFT LCD, which brings much-needed clarity to the 32-point digital storage capabilities. It handles recharging via a standard USB port, ensuring you aren't left stranded mid-test. While it isn't a replacement for high-speed industrial equipment, its portability and compact footprint make it a brilliant tool for quick troubleshooting and educational prototyping.

You are hunched over a cramped engine bay, trying to trace a flickering ignition coil signal, and suddenly realize you left your heavy benchtop gear in the shop. The Abestop HDS2102 solves this exact headache by merging a 100MHz oscilloscope with a high-precision 20,000-count multimeter into one pocketable unit. I found the 3.5-inch color LCD incredibly helpful for reading waveforms in dim garage lighting, and the 500MS/s sample rate keeps the data looking crisp. Whether you are hunting for intermittent DC voltage drops in industrial sensors or prototyping low-voltage circuits for a school project, the intuitive menu layout makes switching between scope and DMM modes feel seamless. It is a rugged, lightweight powerhouse that brings professional-grade signal analysis directly to your fingertips in the field.

Chasing elusive signal glitches in a cluttered workbench often requires a bulky kit, but the Lepmerk 3-in-1 consolidates your entire troubleshooting arsenal into a single handheld unit. I found the integration of a 500KHz bandwidth oscilloscope with a dedicated transistor tester to be a massive time-saver for MCU debugging and DIY electronics. The 2.4-inch TFT display remains crisp even in bright environments thanks to the high-contrast LED backlight, and the AUTO button takes the headache out of manual waveform adjustments. Whether you are identifying NPN/PNP triodes or generating specific waveforms like sine or square waves, the response is snappy and accurate. The built-in folding bracket and rugged ABS housing make it a reliable companion for on-site repairs where desk space is at a premium.

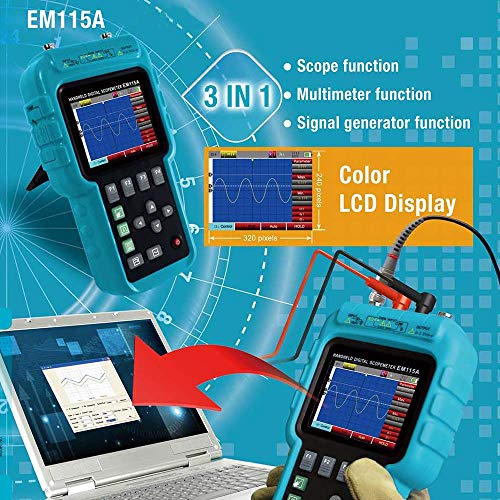

After weeks of use in the garage and on various circuit boards, the allsun handheld oscilloscope has become my go-to diagnostic companion. This 3-in-1 tool manages to pack a 50MHz bandwidth and a 200 MSa/s sampling rate into a portable frame that feels much more substantial than a typical desktop unit thanks to its protective rubber case. I found the high-resolution color screen and the auto function incredibly helpful for quickly visualizing waveforms without getting bogged down in manual adjustments. Whether I am acting as an electronic engineer's assistant or troubleshooting automotive electrical faults, the 6000-count precision and the long-lasting 4100 mAh battery ensure I can work through complex repairs without interruption.

Can a pocket-sized device actually replace a bulky benchtop setup for field diagnostics? The Sutlumisi 154 Pro aims to answer that by packing an ARM+FPGA+ADC architecture into a compact, handheld frame. During testing, the 18MHz bandwidth and 40MSa/s sampling rate provided a remarkably stable visual on the 2.4-inch color TFT display, outperforming older 138 Pro models. I found the dual-functionality particularly impressive. The integrated signal generator allows for precise frequency adjustments up to 500KHz, making it a lifesaver for calibrating probes or driving MOSFETs on the fly. Once you capture a waveform, you can freeze it and scroll through the details to hunt down specific glitches. It is a rugged, portable powerhouse for automotive repair or MCU debugging.

Electrical engineers and serious hobbyists looking to bridge the gap between benchtop power and portable versatility will find this 4-channel setup indispensable. The standout feature is the seamless integration of an independent arbitrary waveform generator alongside the oscilloscope, allowing you to simulate sensors and test circuits simultaneously without juggling two separate devices. With a 250MHz bandwidth and a snappy 1GS/s sample rate, the signal clarity is impressive for a unit this compact. The 7-inch color LCD provides a crisp view of your waveforms, and the advanced digital trigger system—offering over 14 different functions like edge and pulse—makes capturing transient signals much less frustrating. It is a highly capable, all-in-one diagnostic tool that fits easily on a crowded workbench.

The Owon SDS5032E-V stands out as a versatile workhorse thanks to its integrated VGA port for external monitoring. This 30MHz, two-channel oscilloscope is a fantastic find for anyone diving into electrical engineering education or professional circuit debugging. I found the 125 MS/s per channel sample rate and 10 kpts record length provide enough detail to capture meaningful waveforms without breaking the bank. The advanced trigger settings and hold-off function are real lifesavers when you're trying to stabilize complex, erratic signals. Plus, having 20 automatic measurements and FFT capabilities right at your fingertips makes waveform analysis feel incredibly intuitive. Whether you are repairing hardware or designing new products, the 8-inch color TFT-LCD offers a clear, crisp view of your data.

The ZOTEK ZT-702S is a powerhouse tool for automotive technicians and electrical hobbyists who need precision without the bulk of a benchtop setup. I was particularly impressed by how seamlessly it transitions between a high-speed oscilloscope and a comprehensive 9999-count multimeter with just a single button press. The 2.8-inch IPS color screen makes reading complex waveforms incredibly easy, even in varying light, while the 10MHz bandwidth provides enough clarity for diagnosing sensor issues and low-voltage systems. It feels rugged in the hand thanks to the ABS and TPE double injection molding, which gives me confidence when working around heavy machinery or cluttered engine bays. Whether you are measuring temperature or capturing a high-frequency signal, this device brings professional-grade diagnostic capability to a highly portable form factor.

The ALMOCN Digital Oscilloscope Kit stands as a premier educational tool for electronics students and hobbyists looking to master hardware assembly. Powered by an ARM Cortex-M3 processor, this pocket-sized device offers much more than simple waveform viewing. It serves as a versatile ARM test development board. I found the inclusion of a 1Hz/3.3V square wave test signal source particularly useful for calibration. The 2.4-inch color TFT screen provides clear visibility for essential parameters like frequency, duty ratio, and peak-to-peak values. While this is a hands-on DIY project requiring soldering, the ability to perform secondary development—transforming it into a millivoltmeter or data logger—makes it an incredibly high-value investment for anyone serious about embedded systems training.
