Best Radius Gauges in 2026

Most guitarists assume their fretboard is a standard curve, but guessing your radius is a quick way to ruin a perfectly good setup. This two-piece set from MusicNomad takes the guesswork out of the equation by providing exact measurements from 7.25” all the way up to 20”. I found the premium stainless steel construction feels incredibly substantial, and the polished edges ensure you aren't scratching your instrument while checking the arc. The innovative black finish is a clever touch because it makes it much easier to see exactly where the strings meet the fretboard. Whether you are working on an acoustic, an electric, or a bass, these laser-etched gauges are essential for anyone following the KISS setup method to get their action dialed in perfectly.

How much time do you waste guessing the exact curvature of a fillet or bearing? Precision is everything in machine installation and mold manufacturing, and this Together-life set delivers the accuracy required for professional-grade work. The stainless steel construction feels substantial and resists rust, which is essential for a tool that lives in a workshop. I particularly like the dual-leaf design. You can switch between convex and concave templates to check both internal and external arcs without needing a second kit. The 360-degree locking screw makes the folding mechanism smooth and secure, while the clearly marked leaves take the guesswork out of identifying your specific measurement range. It is a versatile, compact solution for anyone needing to measure screw thickness or valve radii on the fly.

Precision machinists and toolmakers cannot afford to guess when verifying curved surfaces, making this Mitutoyo set an absolute necessity for any serious workshop. I found the versatility here to be the real standout, as the kit provides both concave and convex leaves to handle any geometry thrown your way. With 15 pairs of leaves ranging from 1/32 to 1/4 inch, you have a granular level of control thanks to the 1/64 inch graduations. The inclusion of a locking clamp is a massive quality-of-life improvement, allowing you to secure the specific leaf you need for a stable reading. Plus, having the radius size stamped directly on every single gage eliminates the guesswork and keeps your workflow moving quickly.

After weeks of use in a demanding precision workshop, the reliability of this Mitutoyo radius gage set has become an absolute staple for my inspection routine. This Japanese-made kit is impressively versatile, providing both concave and convex leaves to handle a wide variety of curved surfaces. I found the marking on each leaf to be incredibly clear, which eliminates guesswork when you are hunting for a specific measurement between 17/64" and 1/2". The inclusion of a dedicated locking clamp is a thoughtful touch, ensuring the leaves stay organized and secure rather than slipping around in a toolbox. It is a professional-grade tool that feels built to last through countless measurement cycles.

A machinist's workbench is only as reliable as the precision of their measuring tools during a critical tool and die inspection. This Walfront radius gauge set provides that essential accuracy, featuring a robust stainless steel construction designed to withstand the rigors of a professional shop environment. I found the dual-leaf design particularly impressive because it allows you to switch seamlessly between checking concave and convex surfaces without needing multiple separate kits. Each leaf is clearly marked, which eliminates the guesswork and frustration often found with poorly etched gauges. Whether you are working with tight R0.3 tolerances or larger curves, the four distinct size ranges included in this set ensure you have the right tool for almost any radius measurement task.

Precision machining often leaves technicians guessing when trying to verify the exact curvature of a machined surface. This Mitutoyo radius gage set eliminates that guesswork by providing 17 pairs of leaves designed to check both concave and convex profiles with high accuracy. I found the Japanese manufacturing quality immediately apparent in the way the leaves fit together, and the included locking clamp ensures your selected measurement stays secure during inspection. The increments are thoughtfully laid out, moving from 1mm to 3mm in 0.25mm steps and then 3.5mm to 7mm in 0.5mm steps. Having the radius size stamped directly onto every single gage is a massive time-saver in a busy shop environment, preventing any accidental misreads during critical quality control checks.

Precision layout work is often a grueling test of patience, yet this Starrett set transforms a tedious chore into a streamlined process. Instead of struggling with imprecise measurements, you get twenty-five dedicated gauges that handle both convex and concave radii with ease. The stainless steel construction is a standout, offering essential resistance to rust and stains in demanding shop environments. Each gage features five distinct surfaces, ensuring that every fillet or curve is checked against an extra-smooth, precision-finished edge. Because they are clearly marked, you aren't hunting for sizes mid-task. It is a professional-grade kit that lives up to the brand's long-standing reputation for reliability, making it a cornerstone for anyone serious about accurate industrial layout work.

A machinist stands over a freshly milled component, trying to verify if a corner fillet matches the blueprint's exact specifications. The Mitutoyo 26-Leaf Radius Gage Set is the tool that turns that guesswork into a precise measurement. Unlike single-radius tools, this set provides five distinct radii on every single leaf, allowing you to sweep through a range of sizes to find a perfect match. Whether you are inspecting a concave groove or a convex edge, the clearly marked sizes make the process incredibly efficient. The set arrives with a sturdy gage holder to keep your leaves organized and a fitted plastic case that ensures these precision instruments stay protected in a busy shop environment.

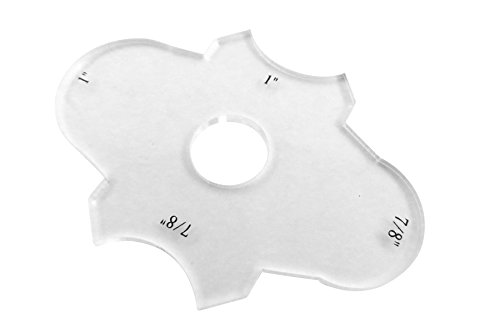

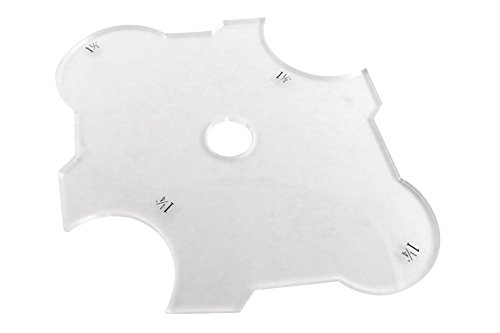

The Taytools 468556 Radius Gauge Set delivers precision layout capabilities through its high-clarity, CNC-machined acrylic construction. I found that the 3/16-inch thickness provides a sturdy, non-flexing feel that is essential when you are duplicating complex moldings or turning spindles. The polished edges are a nice touch, ensuring they don't snag on your workpiece, while the clear markings make identifying specific sizes—ranging from a tiny 1/8 inch up to a substantial 2 inches—incredibly fast. Whether you are checking rounded corners on a furniture project or need to map out an inside or outside radius, these gauges take the guesswork out of the process. It is a reliable, specialized kit that feels much more professional than standard plastic templates.

How can you ensure precision in curved surfaces without a tool that actually talks back to you? The Mitutoyo Radius Gage Set eliminates the guesswork by providing thirty distinct pairs of leaves that fit perfectly into your inspection workflow. I found the inclusion of both concave and convex gages particularly vital for versatile shop work, allowing you to tackle various geometries with ease. Each leaf features a stamped radius size, so you aren't squinting at tiny markings in a dimly lit workshop. The set transitions smoothly from 0.5mm graduations to 1mm increments, and the integrated locking clamp keeps your selected leaves secure during measurement. It is a professional-grade solution for anyone needing reliable, repeatable radius verification.

You are standing over a custom-machined mechanical part or a complex wooden mold, trying to verify an arc radius that refuses to conform to your standard calipers. The CGOLDENWALL digital radius gauge solves this exact headache by offering a massive 5mm to 700mm measurement range. I found the ability to swap between five different interchangeable jaws—ranging from 10mm up to 100mm—makes it incredibly versatile for everything from small steel components to large construction molds. The high-definition display is a standout, providing instant readings for inner and outer diameters, chord height, and even depth. Because it features a data connection port, you can skip the manual logging and output your measurements directly to a computer, which is a massive time-saver for precision work.

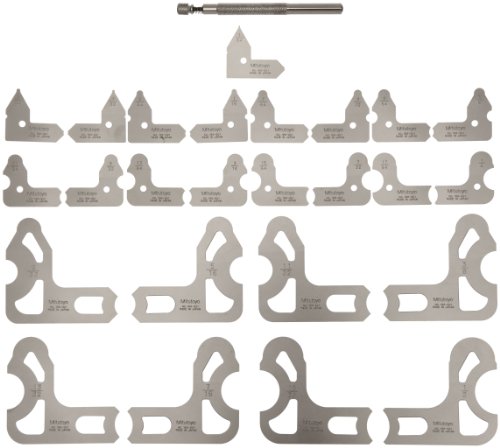

The Mitutoyo 25-Leaf Radius Gage Set provides an incredible density of measurement options packed into a single, professional-grade kit. What really sets this set apart is the sheer versatility of the leaves, with each individual piece offering five distinct radii to check both concave and convex surfaces. You aren't just getting a single measurement per leaf. You're getting a comprehensive range spanning from 1/64" to 1/2". Every leaf is clearly marked with its specific radius size, which eliminates guesswork during precision inspections. The set arrives neatly organized in a dedicated gage holder and a protective plastic pouch, making it easy to keep these critical tools in top shape. For anyone working in high-precision environments, this kit offers the granular control necessary for accurate radius verification.

The cold, heavy weight of polished stainless steel immediately tells you this isn't a cheap plastic knockoff. This Tanstic set is a serious upgrade for any mechanic or machinist needing to verify precise curves and gaps. I was particularly impressed by the dual-purpose blades. Having both convex and concave templates in a single tool makes checking fillets incredibly efficient. The 360-degree locking screw is a thoughtful touch, allowing you to secure the blades at exactly the angle you need for a tight fit. Whether you are measuring a tiny R0.3 radius or checking wider gaps with the included feeler gauge, the markings are clear and easy to read. Everything nests neatly into a dedicated storage box, so you won't be hunting for lost blades in your toolbox.

Precision machining demands a tool that eliminates the guesswork of arc measurements, and the INSIZE Electronic Radius Gage is the essential upgrade for any serious workshop. I found that the versatility of this unit is truly driven by the five included jaws, which allow you to pivot seamlessly between various arc sizes for both internal and external measurements. It handles a massive range from 5 mm up to 700 mm, making it a heavy-duty asset for large-scale fabrication. The digital interface is straightforward, powered by a standard CR2032 battery that keeps you running without much fuss. While it is a specialized piece of BISS equipment, the ability to capture accurate radii with such a wide span makes it a worthwhile investment for professional accuracy.

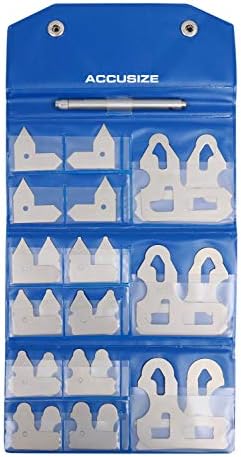

Accusize Industrial Tools has delivered a precision-focused essential that belongs in every serious machinist's or metalworker's toolkit. This 26-piece set covers a wide functional range from 0.010" up to 0.500", making it incredibly versatile for checking various curvatures. I was particularly impressed by the satin chrome finish, which provides a professional feel while ensuring the rust-proof steel remains protected during heavy shop use. The gauges are individually marked for quick identification, which saves a lot of time when you're mid-project. Everything fits neatly into a dedicated plastic case and includes a holder to keep your workspace organized. Whether you are working with fine increments or larger radii, the stepped sizing ensures you have the right tool for the job.

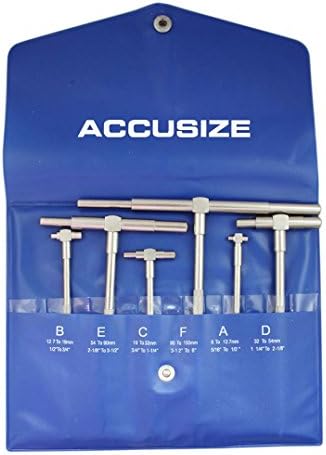

Measuring the internal diameter of a deep, narrow bore requires a level of precision that standard calipers often struggle to provide. This six-piece telescoping gage set from Accusize Industrial Tools delivers exactly that, spanning from 5/16" up to 6". I found the hardened tool steel contact points to be exceptionally reliable, as they are precision ground to ensure accurate readings every time they touch a surface. The satin chrome finish feels professional in hand, and the rigid handle features a self-centering system that prevents the slipping often found in cheaper alternatives. With smooth, constant spring tension and a protective fitted case for organization, this set is a dependable addition to any machinist's toolkit for high-accuracy internal measurements.

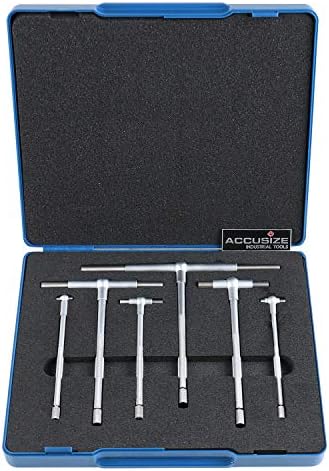

Accusize Industrial Tools has delivered a remarkably reliable measurement solution for machinists and hobbyists needing precision internal diameter checks. This six-piece set covers a versatile range from 5/16" to 6", making it a staple for various workshop tasks. What really impressed me during testing was the build quality. The contact points are made of hardened tool steel and are precision ground on the measuring radius to ensure accuracy. The rigid handles feel substantial in the hand, and the integrated self-centering system takes the guesswork out of getting a true reading. You also get a smooth, constant spring tension that prevents jerky movements, while the rustproof steel construction ensures these tools survive a busy shop environment. It even arrives in a handy fitted plastic bag for organized storage.

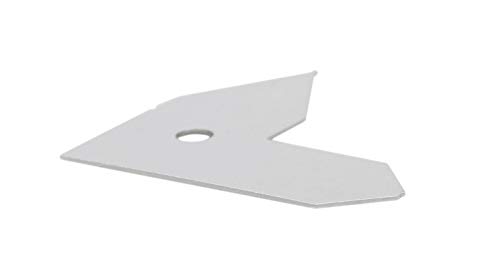

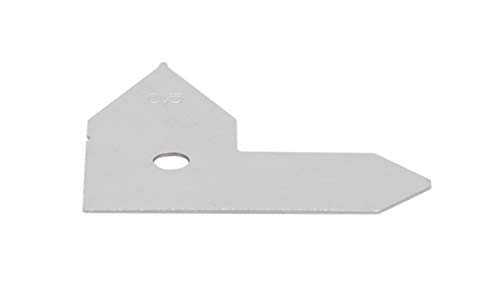

Precision measurement is non-negotiable in industrial settings, and this 26-piece Accusize metric radius gauge set delivers the exact reliability professionals demand. After putting these through their paces, the satin chrome finish stands out for its ability to resist glare while providing a smooth, tactile feel during inspections. The range is impressively granular, stepping from 0.5 mm to 13 mm in 0.5 mm increments, ensuring you rarely find yourself without the correct fit. Because each piece is individually marked and constructed from rustproof steel, you can trust the legibility and durability even in less-than-ideal workshop environments. Everything nests securely into a fitted plastic case, making it a highly organized addition to any tool kit that prioritizes accuracy and longevity.

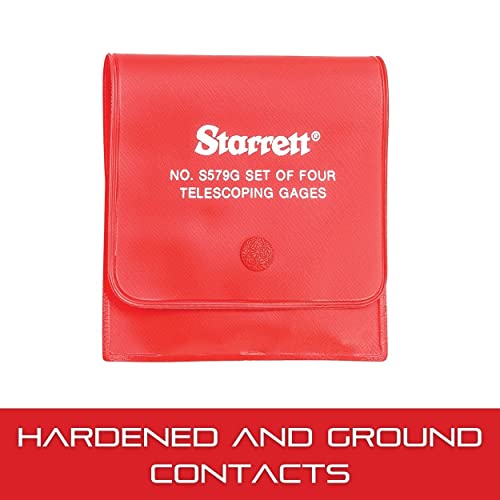

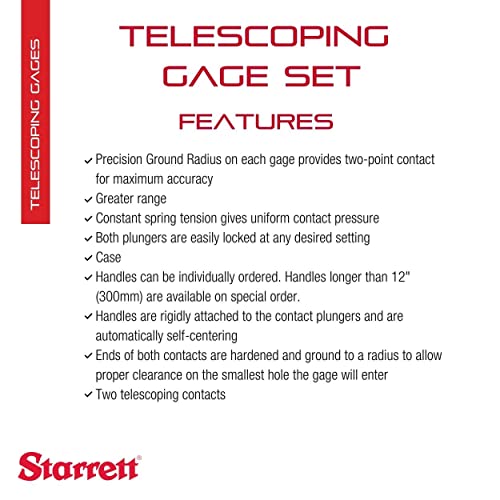

Most machinists settle for inconsistent measurements that force them to double-check every single bore, but this Starrett set eliminates that guesswork entirely. By utilizing two precision-ground radius arms, the tool establishes reliable two-point contact that ensures you are capturing the true size of a hole or slot every single time. The constant spring tension is a standout feature, providing uniform contact pressure so your readings don't drift based on how hard you squeeze. I found the hardened steel construction incredibly rugged, and the ability to easily lock both plungers at your desired setting makes transferring those dimensions to a micrometer seamless. It is a professional-grade solution for anyone tired of the variability found in lesser measuring tools.

You are staring down a narrow, recessed slot or a deep hole and need an immediate, accurate measurement without the guesswork. This Shars telescoping gage set is designed specifically for those high-precision moments in the workshop. The double-action rigid handles are a standout, featuring a self-centering mechanism that makes checking recesses up to 6 inches deep feel incredibly intuitive. Because the contact plungers are heat-treated stainless steel and precision ground to a radius, you won't struggle with clearance even in the tightest diameters. I found the constant spring tension particularly helpful, as it ensures uniform contact pressure every single time you drop the gage into a measurement point. It is a reliable, professional-grade solution for anyone needing to verify internal dimensions quickly and accurately.

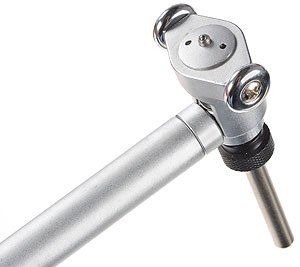

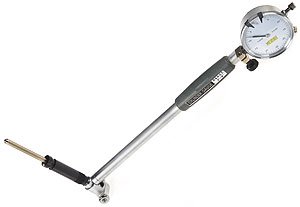

The PMD Products Engine Cylinder Dial Bore Indicator Gauge Kit delivers surgical precision with its incredibly fine .0005" graduations. When you are checking cylinder taper or out-of-roundness, you cannot afford to guess, and this kit provides the high-level accuracy required for professional engine rebuilding. I found the carbide anvils and radius-ed hardened tips to be essential for maintaining consistent contact with the cylinder walls, which significantly improves measurement reliability. The tool feels substantial at 6.1 lbs, and the insulated grip makes it comfortable to handle during long diagnostic sessions. It arrives as a complete solution, packed with all the necessary spacers and interchangeable extensions you need to cover diameters from 2 to 6 inches, all neatly organized in a durable plastic case.

The tactile sensation of the smooth, sensitive adjustment mechanism is the first thing you notice when you pick up these gages. Unlike cheaper alternatives that feel clunky or prone to slipping, this four-pack from Starrett offers a controlled, precise movement that makes finding the exact diameter of a small slot or groove feel effortless. The precision-ground radius and hardened-ball design ensure you get reliable two-point contact every single time you measure. I particularly like the inclusion of a safety stop, which protects the delicate components from over-adjustment and accidental damage. Whether you are working in a professional machine shop or a home workshop, the well-balanced, ergonomic build provides the stability needed for high-accuracy tasks.

Precision-driven quality control professionals cannot afford to compromise on surface roughness accuracy, making this Mitutoyo standard detector an absolute necessity for any serious machining lab. I found that its diamond stylus tip provides the exact level of precision required for high-stakes statistical processing and histogram-based data management. Because it integrates seamlessly with Surftest SJ-210 and SJ-301 units, it transforms your shop floor testing into a streamlined operation. The built-in skid force stays under 400mN, which is critical when you are working with delicate measuring forces as low as 0.75mN. Whether you are managing complex QC applications or performing routine machining checks, this detector connects directly to your drive unit to ensure your data remains consistent and reliable.

Precision machining demands exactness that standard calipers often struggle to capture, and this PNYZIK radius gauge set fills that critical gap. Instead of guessing at curves, you get twenty-five specialized stainless steel blades ranging from 1/64" to 1/2" to ensure a perfect fit every time. The satin chrome finish is a standout, providing a professional look while shielding the metal from corrosion in harsh workshop environments. I particularly like how each gauge is individually marked, which saves a massive amount of time when you are mid-project and need a specific measurement. The included snap protective sleeve is a clever touch, keeping the set dust-free and organized in your toolbox without the risk of the blades sliding out during transport.

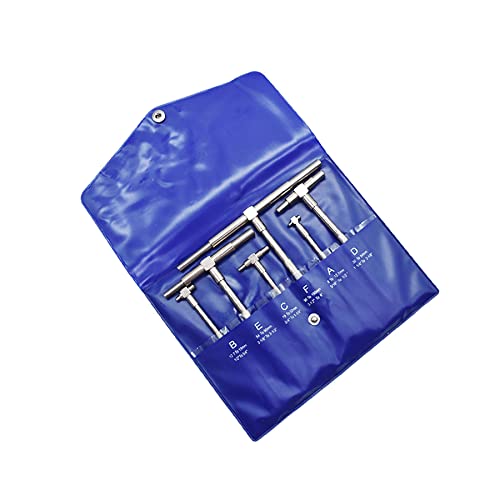

Measuring the internal diameter of a worn engine cylinder or a deep T-bore hole requires a tool that won't slip or lose its calibration mid-task. This waltyotur set provides that much-needed stability through a spring-loaded design paired with a knurled locking knob for secure readings. The stainless steel construction feels substantial in the hand, and the titanium coating adds a layer of professional-grade durability. I was particularly impressed by the contact points, which utilize fine-ground, hardened tool steel to ensure accuracy within the final measuring radius. Whether you are working in a professional shop or a home garage, the wide 5/16 to 6-inch range covers most common needs, and the included plastic fitted bag keeps the entire six-piece kit organized and protected.

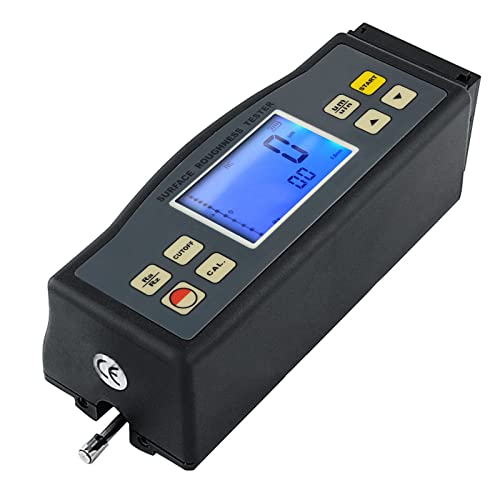

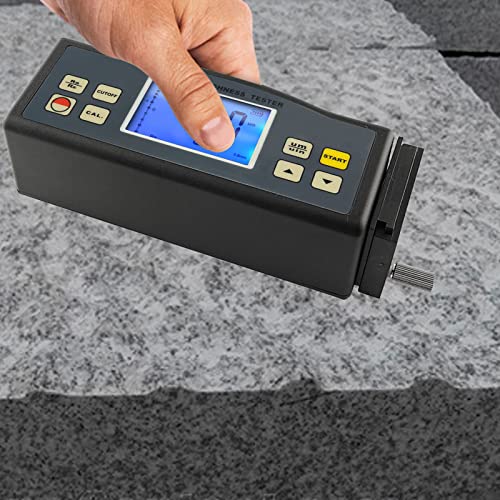

Surface texture inconsistencies can ruin high-precision automotive components and engine parts, making the Gain Express Landtek Digital Surface Roughness Tester a vital tool for quality control. I found the inductance-type sensor to be impressively responsive, utilizing a diamond probe pin with a 10µm radius to capture granular detail. It handles both Ra and Rz parameters across a wide range, from fine 0.05 µm finishes to much coarser textures. The inclusion of four distinct filtering methods—RC, PC-RC, GAUSS, and D-P—allows for highly customized data analysis depending on your specific testing requirements. Whether you need metric or imperial measurements, the interface makes switching between µm and µinch seamless. It is a robust, professional-grade solution for anyone needing to ensure surface integrity with a consistent 16mN measurement force.

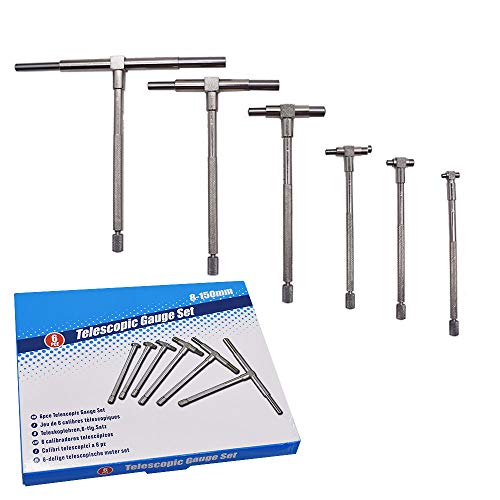

The Hilitand 6-piece telescopic gauge set delivers exceptional self-centering precision that makes measuring deep recesses feel effortless. I found that the double-action handles are rigidly attached to the contact plungers, which ensures the tool automatically centers itself every time you drop it into a bore or slot. These gauges are built for serious workshop use, featuring head-treated steel contact ends that are precision ground to a radius to prevent snagging on smaller holes. Because they work in tandem with your existing micrometer or caliper, they turn complex inner diameter detection into a quick, reliable task. The knurled locking device holds your measurement securely, while the high-rigidity construction ensures these tools won't flex or wear down during heavy inspection cycles.

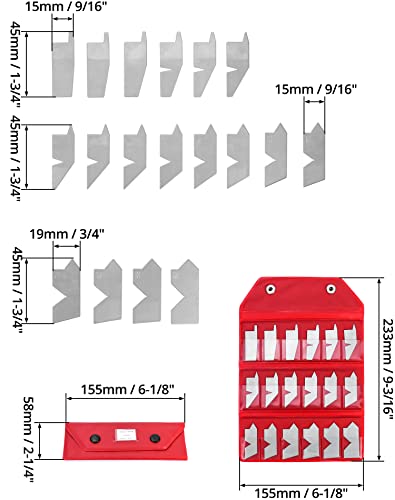

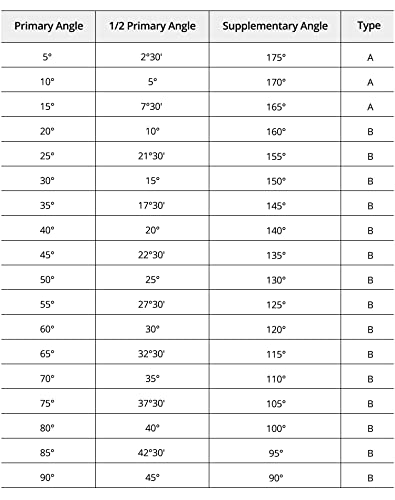

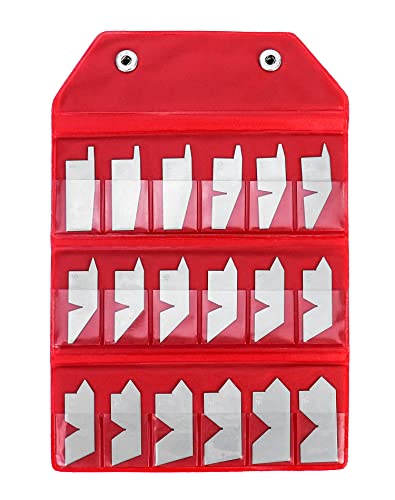

The weight of these stainless steel gauges in your hand immediately signals a level of professional durability that cheap alloys simply can't match. I was particularly impressed by the satin finish, which provides a rugged, corrosion-resistant surface that stands up to a busy machine shop environment. Each of the 18 individual pieces features precision-machined edges and eight measuring surfaces, allowing you to check primary, half-primary, and complimentary angles without swapping tools constantly. Whether you are positioning a chamfering turning tool or inspecting internal and external diameters, the quick setup saves significant time during layout work. It is a versatile kit that effectively eliminates the headache of complex measurement setups for machinists and toolmakers alike.

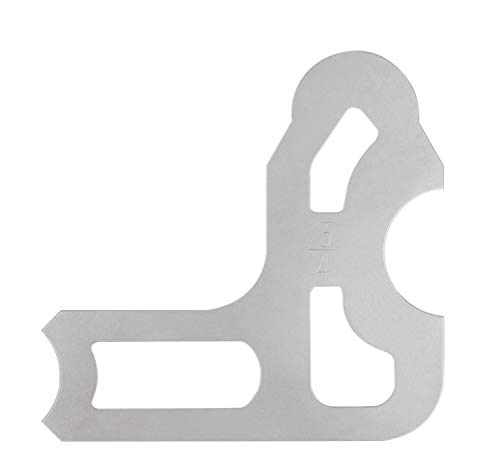

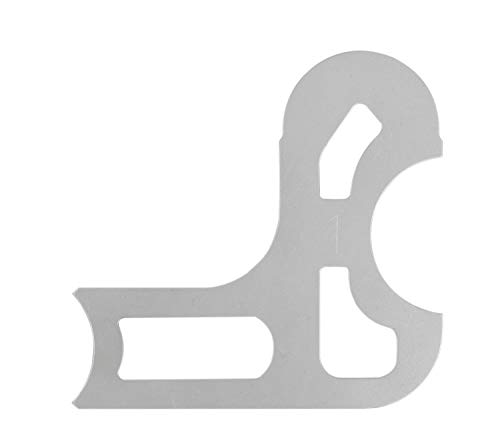

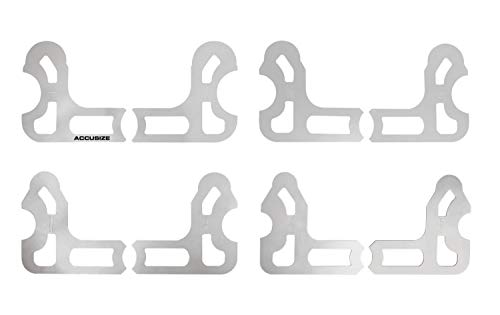

You might wonder if a specialized set of eight gauges is worth the investment for your workshop, but the Accusize Industrial Tools Radius Gauge Set proves its utility the moment you need a precise fit. Testing these out, the satin chrome finish feels substantial in the hand, providing a professional tactile experience that resists the grime of a busy shop. The range covers 9/16" to 1" in 16th increments, making it a reliable companion for specific curvature measurements. Because they are crafted from rustproof steel and individually marked, you aren't fumbling through a cluttered drawer to find the right size. Even the included plastic fitted case ensures that these precision tools stay organized and protected when you aren't actively using them.
