Best Gage Height Gauges in 2026

The EANOSIC Setup Blocks Height Gauge Set turns tedious router and table saw adjustments into a lightning-fast process thanks to its versatile stacking design. Instead of fumbling with a standard ruler to find a specific height, you can simply combine these extra-long 4-inch bars to reach hundreds of different measurement combinations instantly. The solid aluminum construction feels substantial in the hand, and the black anodized finish is a smart touch that helps prevent scratches on your expensive blades and bits. I particularly like how the laser-etched markings remain crisp and easy to read even in dim workshop lighting. Everything arrives neatly organized in a fitted case, ensuring these precision tools stay protected and ready for your next woodworking project.

The EANOSIC Nano Blue Coated Spiral Router Bit is a top-tier choice for CNC enthusiasts seeking surgical precision in their woodworking. I found that the dual up-down cut design is a total game-changer for preventing splintering, delivering much cleaner edges on plywood and MDF than standard straight bits ever could. The solid carbide construction feels incredibly robust, and that Nano Blue coating actually makes a difference by managing heat and keeping the cutting edge sharp during long sessions. Whether you are tackling deep mortises or intricate side milling, this bit handles everything from oak to aluminum alloy with impressive smoothness. It fits perfectly into any 1/4 inch collet, making it a reliable workhorse for both plunge routers and CNC machines.

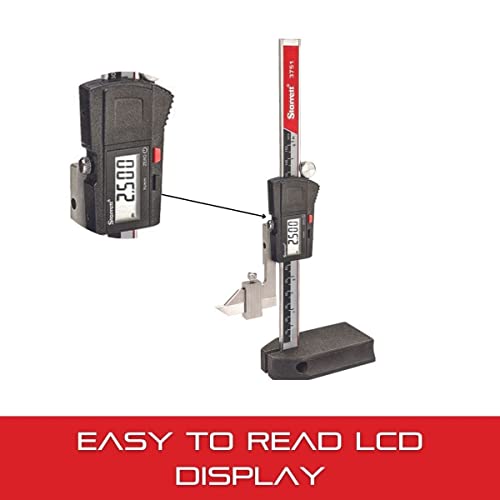

The weight of the hardened, ground, and lapped base feels incredibly substantial the moment you pick it up. This Starrett Electronic Height Gage is a professional-grade tool that eliminates the guesswork from vertical measurements. I found the .932" high LCD characters a total game-changer, as they allow for instant, clear readings without any squinting or eye strain. The stability is impressive, thanks to a vertical bar design that sits back from the nose edge to prevent wobbling. It is remarkably easy to operate. You simply attach the depth attachment and use the thumb roll to dial in your precision. Plus, the automatic five-minute shut-off is a smart touch that keeps the battery ready for your next project.

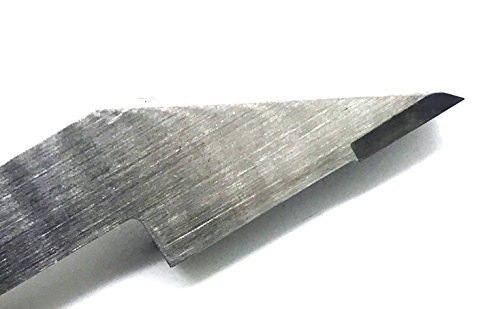

Precision measurement tools are only as reliable as their smallest contact point. It is easy to overlook the scribe, yet a worn or damaged tip can render an entire 12-inch double beam dial height gage useless for accurate work. This HHIP replacement scribe is designed specifically to restore the functionality of the 4300-0010 model, ensuring your measurements remain crisp and repeatable. Instead of replacing a whole expensive instrument due to a nicked tip, you can simply swap in this component to get back to your shop tasks. It is a straightforward, specialized fix that maintains the integrity of your existing precision setup without the headache of sourcing a completely new measuring system.

This 12-inch height gage is a precision powerhouse for machinists and workshop professionals who demand repeatable accuracy. I was particularly impressed by the double beam design, which provides a stable foundation for measurements across its entire 0-12 inch range. The integration of a mechanical digit counter with 0.1-inch increments alongside the 0.001-inch dial graduation makes reading complex measurements incredibly intuitive. You can zero set the dual directional counters at any position, which is a massive time-saver during repetitive inspection tasks. The inclusion of a fine-adjusting wheel and a dedicated lock ensures that your settings stay put once you've dialed them in. It is a robust, error-proof tool that brings a high level of control to any precision measurement workflow.

Machinists working on precision tolerance projects demand a level of accuracy that cheaper plastic alternatives simply cannot provide. The HHIP Dial Height Gage stands out because it prioritizes durability through its high-quality stainless steel construction and satin chrome finish, which helps reduce glare during long inspection sessions. I found the fine feed adjustment to be incredibly smooth, allowing for the minute movements necessary when measuring critical heights. The inclusion of a carbide-tipped scriber is a massive plus for anyone looking to extend the tool's service life, as it resists wear much better than standard steel tips. Having a positive lock screw ensures your measurements stay put once you've found your mark, and the fitted case makes it easy to keep this essential piece of BISS equipment protected in a busy shop.

Precision layout work on a metal lathe requires a tool that won't drift when you're setting critical depths. The Shars 12-inch dial height gage delivers exactly that kind of stability, utilizing a hardened stainless steel rack to ensure consistent movement across its full measuring range. I found the fine adjustment thumb roll to be incredibly responsive, allowing for the minute tweaks needed to hit that 0.001-inch graduation. The inclusion of a carbide-tipped scriber and a dedicated clamp means you can move straight from measurement to marking without hunting for extra accessories. With a digital counter that tracks 0.1 inches per revolution, it takes the guesswork out of repetitive layout tasks while maintaining a reliable accuracy of ±0.0016 inches.

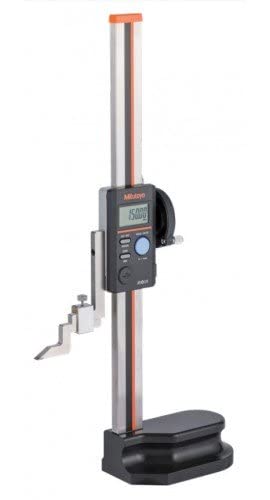

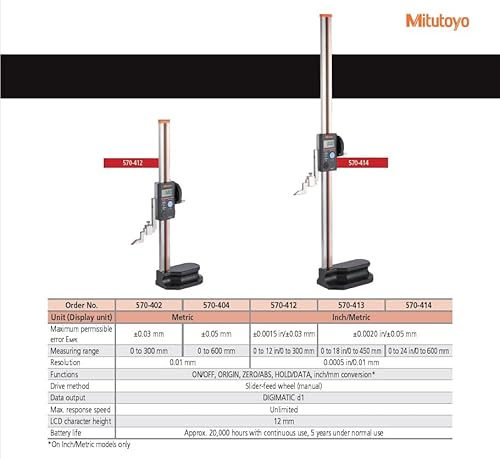

Precision matters most when you are verifying tolerances on a critical engine component or a custom machined part. The Mitutoyo HDS Digimatic Height Gage transforms high-stakes measurement tasks from a stressful guessing game into a streamlined workflow. I found the hand-operated feed wheel incredibly smooth, allowing for micro-adjustments that feel intuitive rather than clunky. Because it utilizes an electrostatic capacitance linear encoder, the repeatability is impressive, ensuring your readings don't drift between tests. The LCD readout makes switching between inches and metric units effortless, which is a lifesaver when working with mixed-unit blueprints. Plus, the ability to transmit data via SPC output directly to a computer means you can ditch the manual data entry and focus on actual quality control.

Precision measurement is often treated as a game of brute force, but the Mitutoyo HDS Digimatic proves that finesse is actually the superior approach. While many technicians struggle with manual dial drift, this gage utilizes an electrostatic capacitance linear encoder to ensure every single reading is repeatable and rock-solid. I found the hand-operated feed wheel makes navigating the 18-inch range feel incredibly smooth rather than clunky. The LCD readout is exceptionally sharp, making it easy to toggle between inches and metric without squinting. Most importantly, the built-in SPC output allows you to bridge the gap between physical measurement and digital data logging instantly, turning a standalone tool into a vital part of your computer-driven quality control workflow.

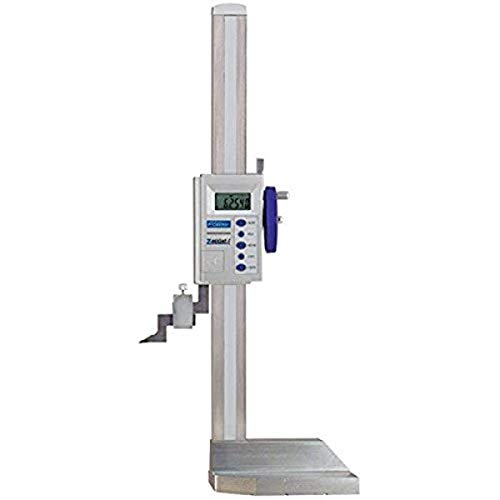

Can a single tool truly bridge the gap between manual estimation and digital precision in your workshop? The Fowler Z-Height-E Jr. makes a compelling case for itself by combining a rugged, satin chrome finish with high-resolution digital accuracy. During testing, the hand-operated slider felt remarkably smooth, especially when utilizing the fine-adjustment carriage for those critical, micro-level feeds. I found the high-contrast LCD readout incredibly easy to read, whether I was toggling between metric and imperial units or using the relative measuring function to compare parts against a master. The carbide-tipped scriber adds a layer of professional durability that suggests this gage is built for heavy, repetitive use rather than just occasional checks. It even arrives ready to work with included batteries and a protective molded case.

The 12'' Digital Electronic Dual Beam Height Gage delivers rock-solid stability thanks to its sophisticated twin guide system. Unlike single-column alternatives that can wobble during fine adjustments, this unit moves over two independent columns to ensure every measurement stays perfectly accurate. I found the hand-wheel drive incredibly smooth for displacing the head, making it easy to navigate the 0-300mm range without losing precision. The large LCD display is easy to read even in dim workshop lighting, and having the ability to toggle between mm/inch and ABS/INC modes provides great flexibility for different automotive tasks. At 10 lbs, it feels like a substantial, professional-grade tool that stays put on your workbench while you work.

The Suxing Height Gage Scriber Clamp is a precision-engineered essential for anyone relying on Digimatic or Vernier height gages for accurate marking. I found that this single component is a lifesaver when you need to secure a scriber to your linear height gage setup without the headache of compatibility issues. It is specifically designed to interface seamlessly with a wide array of inch-based models, including various Digimatic and Dial height gage configurations. Whether you are working with a standard 192-series or a 570-series setup, this clamp provides the stability required for professional-grade layout work. It turns your existing measurement tools into highly effective marking instruments, making it a practical addition to any machinist's toolkit for consistent, repeatable results.

Precision machining often fails when your measurement tools lack the stability to handle fine-scale adjustments. The Fowler Dial Twin Beam Height Gage addresses this by combining dual chrome-plated beams with a hardened, ground, and lapped base for rock-solid accuracy. I found the combination of coarse 0.100" graduations and fine 0.001" indicator readings incredibly intuitive for rapid but precise work. The satin chrome finish is a standout, as it prevents distracting glare under shop lights while resisting rust. Moving the measuring head feels smooth, and the carriage lock lever is a lifesaver when you need to scribe accurately without the head slipping. With its carbide-tipped scriber and resettable up/down counters, this tool turns complex height verification into a straightforward, reliable process.

Precision measurement often feels like a trade-off between extreme cost and frustrating inaccuracy, but this Shars digital height gage challenges that assumption. I found that having a massive 24-inch measuring range doesn't have to mean sacrificing the fine details of your work. With a resolution of 0.0005 inches, you can track minute changes that manual tools might miss entirely. It handles the heavy lifting of large-scale vertical measurements while maintaining a reliable accuracy of ±0.002 inches. Whether you are working in a professional shop or a dedicated home studio, the electronic readout provides a level of clarity that makes complex height checks feel much less tedious. It is a solid, dependable workhorse for anyone needing consistent vertical data.

After weeks of use in the machine shop, the precision of this Fowler surface gage has become a reliable staple for my layout work. The 9-inch spindle offers impressive reach, but the real standout is the versatility of the ground steel base. Because it is fully hardened and features a built-in V-groove, I can transition seamlessly from marking flat plates to mounting on cylindrical workpieces. I particularly appreciate the spring control on the scriber head and the knurled thumb screw, which allows for those tiny, micro-adjustments that make accurate settings possible without the frustration of constant resetting. Even the retractable pins in the base add a layer of stability that you just don't find in cheaper, lighter alternatives.

Precision meets stability in this 24-inch digital height gage, a tool that proves why a twin guide system is essential for serious automotive measurement. Instead of relying on a single pillar, this unit utilizes two independent columns to ensure the measuring head glides with incredible accuracy and minimal wobble. I found the hand-wheel drive particularly smooth for adjusting head displacement, making it easy to navigate the 600mm range without constant manual repositioning. The large LCD display is easy to read, and having the ability to toggle between mm/inch and ABS/INC modes adds a layer of professional versatility. While the 20-pound weight means you'll want a dedicated workspace, the resulting measurement repeatability of 0.01 mm makes it a reliable cornerstone for any precision shop.

Most machinists settle for imprecise manual readings, but the Fowler Digital Height Gage brings a level of repeatable accuracy that transforms a standard workshop into a precision lab. While testing this unit, the smoothness of the handwheel was immediately apparent, allowing for effortless coarse adjustments and incredibly fine control during critical measurements. The satin chrome finish on the scales is a thoughtful touch, preventing the annoying glare that often plagues digital displays under bright shop lights. I particularly liked the versatility of the absolute and relative measuring functions, which make comparing parts to a master much faster. With its carbide-tipped scriber and robust enamel base, this tool feels built to survive a heavy production environment while maintaining a resolution of 0.0005".

The RIVERWELD V-WAC Single Weld Gage is a rugged, stainless steel essential for anyone needing precise metric inspections. I found that this tool is incredibly straightforward for checking critical weld quality issues like undercut, crown height, porosity, and pits. Because it is constructed from stainless steel, it feels substantial in the hand and stands up well to the harsh environments of a welding shop. It is important to note that this specific model is strictly metric, so ensure your project requirements align before picking it up. At just over ten dollars, it provides a reliable way to verify your bead geometry without breaking the bank or overcomplicating your inspection process.

A technician stands over a fresh bead of weld, squinting to see if the reinforcement meets the project specifications. This RIVERWELD V-WAC single weld gage is exactly what you need in that moment to move from guesswork to precision. Built from durable stainless steel, this tool is designed specifically for inch-based measurements to check critical weld attributes like undercut, crown height, porosity, and pits. It is a straightforward, no-nonsense instrument that fits easily into a welding kit without adding bulk. Whether you are performing a routine quality check or a deep inspection, having this gage on hand ensures your welds meet the necessary standards. It provides the clarity required to identify surface defects quickly and accurately.

Precision woodworking demands exactness that makeshift scraps of wood or plastic simply cannot provide. This LOSTRONAUT set replaces guesswork with five solid brass blocks that feel substantial and professional in your hand. Each 2.5-inch bar features laser-engraved markings, making it incredibly easy to read your measurements at a glance while setting your table saw fence or cutter height. The kit includes five essential square sizes—1/8", 3/16", 1/4", 3/8", and 1/2"—and because they are stackable, you can easily create custom heights for more complex tasks. They even come in a dedicated metal carrying case, which keeps your workspace organized and ensures these high-quality tools stay protected when you aren't at the bench.

Any pipe welder serious about passing radiographic inspections needs the RIVERWELD Hi Lo Welding Gauge in their kit to catch internal misalignment before it becomes a costly mistake. I found the dual-scale design incredibly practical. You can switch from standard to metric simply by removing the gauge body and flipping the scales over. It is a true multi-tool for fit-up, allowing you to measure bevel end preparation, fillet weld size, and crown height with ease. The stainless steel construction feels rugged enough for daily job site use, and the ability to calibrate it to NBS standards ensures your measurements remain professional and precise. Whether you are checking socket welds or measuring fit-up gaps, this gauge handles the technical heavy lifting required for high-stakes welding projects.

How much time do you waste recalibrating your setup every time you move a workpiece? The CDIYTOOL 3-in-1 Multifunction Drill Depth Measuring Gauge solves this exact headache by consolidating three essential woodworking tasks into one aluminum alloy tool. I found the ability to flip the gauge to switch between measuring drill bit angles and depth incredibly intuitive. The integrated top magnet is a clever touch, keeping the retaining ring from sliding around during precision work. Whether you are setting your table saw blade height or using the copper screw to lock in a specific measurement for repeated positioning, the dual metric and imperial scales make it feel like a professional-grade companion. It is a rugged, durable piece of kit that cuts through the guesswork of repetitive drilling and sawing.

The Mitutoyo Digimatic Height Gage sets a high bar for precision with its ultra-reliable electrostatic capacitance linear encoder. After testing its movement, the hand-operated slider feels incredibly smooth, especially when utilizing the fine-adjustment carriage to dial in exact measurements. You get a massive 8-inch range that remains accurate down to 0.0005 inches, which is essential for high-stakes machining work. The high-contrast LCD makes switching between inches and metric effortless, so you aren't squinting at the screen mid-job. I also appreciated the carbide-tipped scriber. It feels rugged enough to handle heavy use without losing its edge quickly. It is a professional-grade tool that delivers consistent, repeatable results every time you bring it to the workpiece.

The cool, smooth touch of precision-machined aluminum alloy immediately tells you this isn't a cheap plastic afterthought. I found the CDIYTOOL multifunction gauge to be a massive time-saver for anyone tired of fumbling with makeshift depth stops. The top magnet design is a stroke of genius, keeping the stop collar firmly in place so you aren't fighting shifting parts mid-drill. Whether I was checking the angle of a drill bit or setting the exact height for a table saw blade, the dual-sided metric and imperial scales made the transitions seamless. The copper fixing screw allows for quick, repeatable adjustments, which is essential when you need to hit the same depth across multiple workpieces without constant recalibration.

Manual data entry errors and disconnected measurement workflows are the primary enemies of precision manufacturing, which is exactly why this Mitutoyo height gage is such a vital addition to a modern shop floor. After testing its interface, the first thing you notice is how much easier it is to read than older models thanks to the significantly enlarged LCD. The physical ergonomics are equally thoughtful. The DATA/HOLD button has been scaled up for much more reliable pressing during repetitive tasks. What really sets this unit apart for smart factories is the case design, which allows for the optional U-WAVE installation to enable wireless data transmission. It turns a standard measurement tool into a connected component of your digital ecosystem, ensuring smooth and reliable operation every time.

You are standing over a custom-machined mechanical part or a complex wooden mold, trying to verify an arc radius that refuses to conform to your standard calipers. The CGOLDENWALL digital radius gauge solves this exact headache by offering a massive 5mm to 700mm measurement range. I found the ability to swap between five different interchangeable jaws—ranging from 10mm up to 100mm—makes it incredibly versatile for everything from small steel components to large construction molds. The high-definition display is a standout, providing instant readings for inner and outer diameters, chord height, and even depth. Because it features a data connection port, you can skip the manual logging and output your measurements directly to a computer, which is a massive time-saver for precision work.

You might hesitate to trust a digital height gage at this price point, but the Accusize Industrial Double Beam Height Gage quickly proves its worth in a precision shop environment. What sets this stainless steel tool apart is the clever dual digital counter system that allows for instant upward and downward readings without the usual guesswork. I found the ability to zero set each direction individually incredibly helpful for complex measurements, especially since you can float the zero point anywhere within the 12-inch range. While the digital counter tracks in increments of .01'', the dial maintains a much finer graduation of .001'', providing the granular accuracy required for professional BISS applications. The integrated hand wheel micro-adjustment and error-proof reset button make it a reliable, intuitive companion for high-stakes machining tasks.

Precision metrology professionals working with restricted access areas cannot afford to let physical obstructions compromise their surface analysis. This Mitutoyo adapter is a specialized necessity for anyone operating SJ-210 or SJ-310 surface roughness testers who needs to reach deep or awkward test zones. By extending the length of your detector, it bridges the gap between your equipment and the target surface without sacrificing the accuracy you expect from high-end measurement tools. It is a compact, purpose-built solution that turns a standard setup into a much more versatile instrument. While it is a niche component, having this specific extension ensures your workflow remains uninterrupted when standard probe reach falls short of the requirement.
